| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | Fully automatic |
| Structural design | Soft start valve Shut off valve Filter regulator with pressure gauge Standard oil mist lubricator |
| Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard |

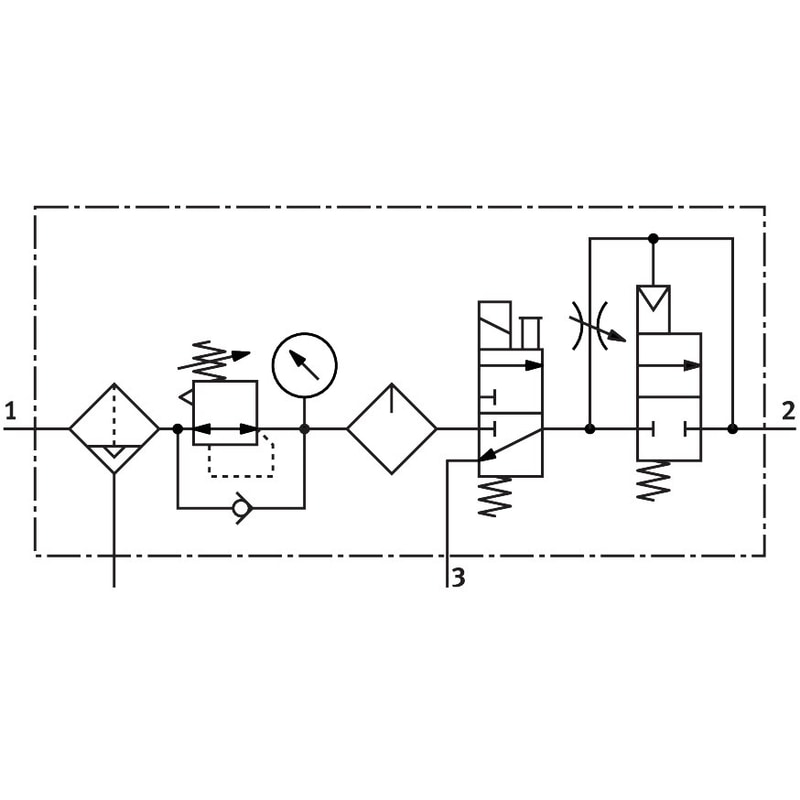

| Symbol | 00991764 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 4.5 bar … 12 bar |
| Pressure regulation range | 4 bar … 12 bar |
| Standard nominal flow rate | 1900 l/min |
| Coil characteristics | 24 V DC: 1.5 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 °C … 60 °C |
| For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:-] |
| Temperature of medium | 5 °C … 60 °C |
| Ambient temperature | 5 °C … 60 °C |
| Product weight | 3000 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | 1/2 NPT |
| Pneumatic connection 2 | 1/2 NPT |
| Pneumatic connection 3 | G1/2 |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum |
| Material of bowl | PC |
| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with detent, can be closed with accessories |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | Fully automatic |
| Structural design | Soft-start valve, On/off valve, Filter regulator with pressure gauge, Standard oil mist lubricator |
| Controller function | Outlet pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function |
| Bowl guard | Plastic bowl guard |
| Symbol | 00991764 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 4.5 bar … 12 bar |
| Pressure regulation range | 4 bar … 12 bar |
| Normal nominal flow rate (normalized to DIN 1343) | 1900 l/min |
| Coil characteristics | 24 V DC: 1.5 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:-] | Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 °C … 60 °C |
| For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:-] |
| Temperature of medium | 5 °C … 60 °C |
| Ambient temperature | 5 °C … 60 °C |
| Product weight | 3000 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | 1/2 NPT |
| Pneumatic connection 2 | 1/2 NPT |
| Pneumatic connection 3 | G1/2 |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum |
| Material of bowl | PC |
