On/off valve MS6-EM1-1/2

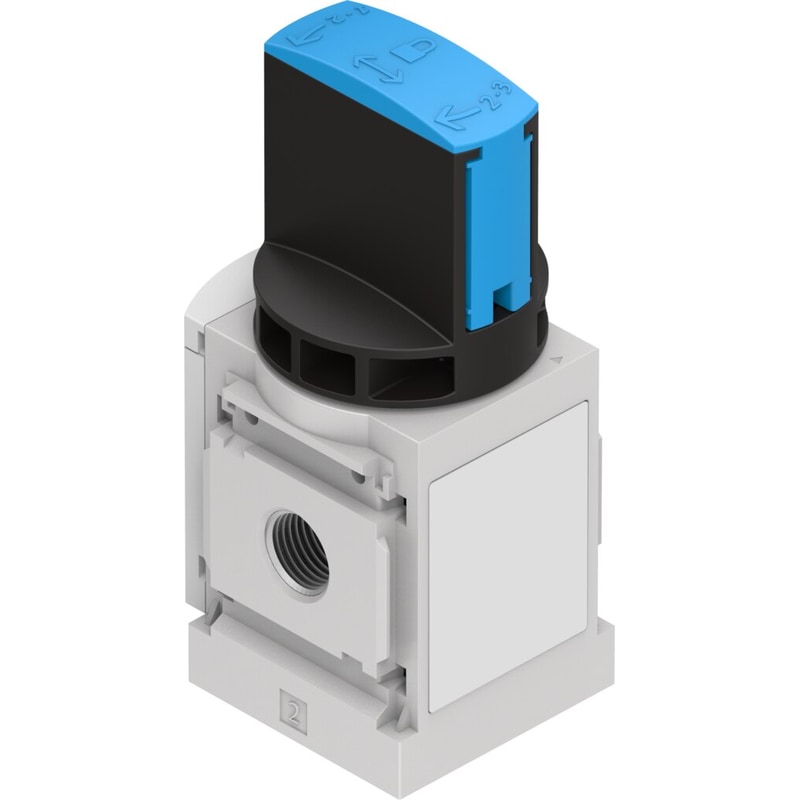

On/off valve MS6-EM1-1/2 - Image 2

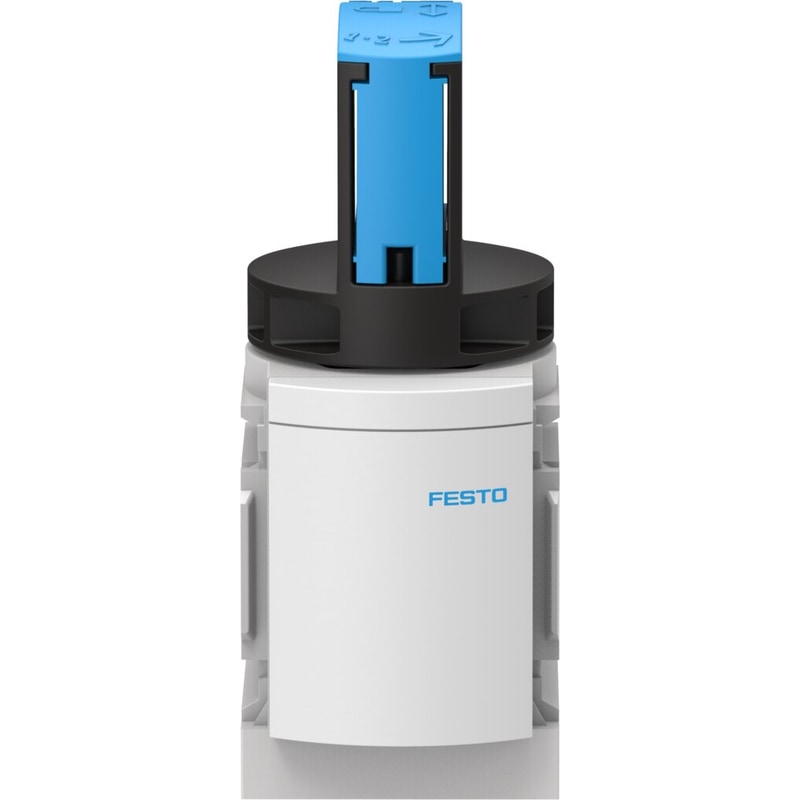

On/off valve MS6-EM1-1/2 - Image 3

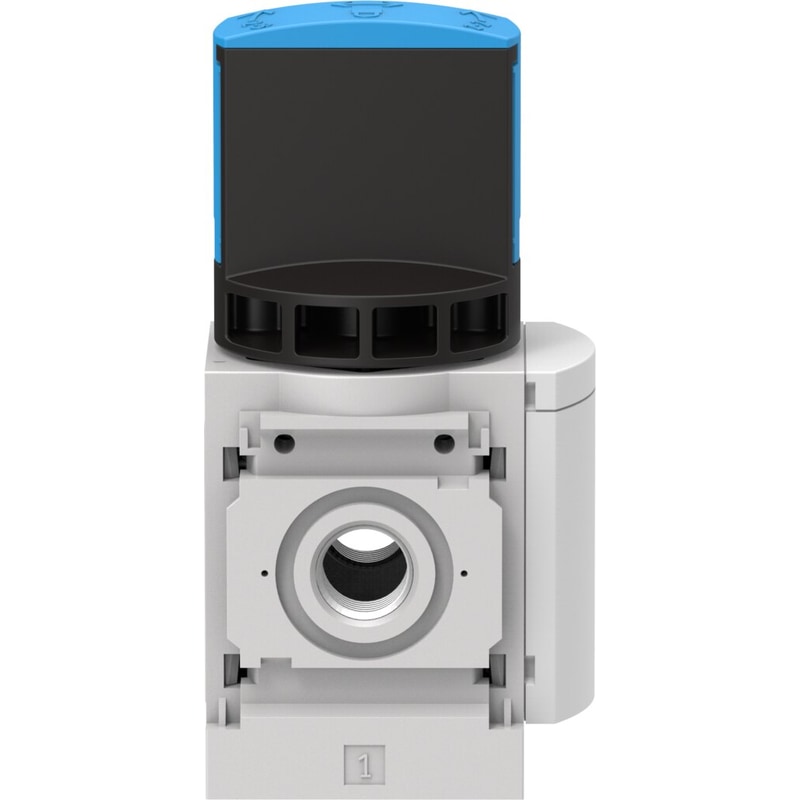

On/off valve MS6-EM1-1/2 - Image 4

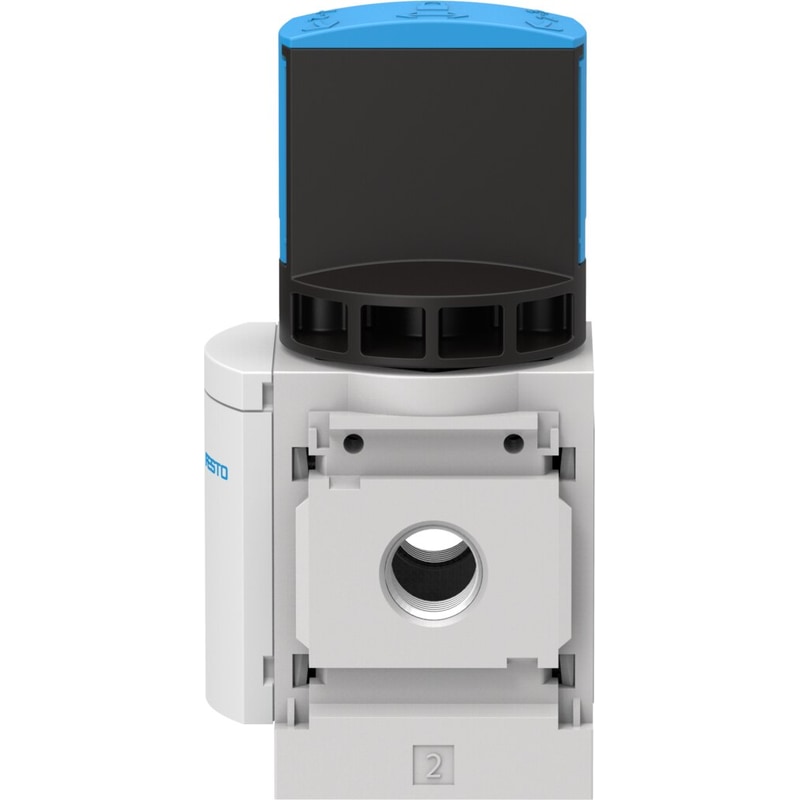

On/off valve MS6-EM1-1/2 - Image 5
On/off valve MS6-EM1-1/2 - Image 6

On/off valve MS6-EM1-1/2

$59.77

SKU: 541267
UNSPSC: 40141603
GTIN: 4052568090784

Availability: 5 in stock

Warehouse 1*: 5 in stock

Warehouse 2: Available

- +
SKU: 541267 Category: Tags: ,
MS-START-UP-EXHAUST-VALVES_ENUS.PDF
Brand:

on-off valve MS6-EM1-1/2 Manual, direction of flow: from left to right. Design structure=Rotary slide valve, Type of actuation=manual, Exhaust-air function=not throttleable, Type of piloting=direct, Valve function=3/2 bistable

Design structure  Rotary slide valve
Type of actuation  manual
Exhaust-air function  not throttleable
Type of piloting  direct
Valve function  3/2 bistable
Operating pressure  0 … 18 bar
C value  30.8 l/sbar
b value  0.57
Standard nominal flow rate  8,700 l/min
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases
Note on operating and pilot medium  Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC  2 – Moderate corrosion stress
Materials note  Free of copper and PTFEConforms to RoHS
Weight 1.436003 lbs
Dimensions 7.362205 × 5.511811 × 3.740157 in
Structural design

Rotary gate valve
Actuation type

Manual
Exhaust air function

Without flow control option
Type of control

Direct
Symbol

00991670
Valve Function

3/2, bistable
Operating pressure

0 bar … 18 bar
C value

30.8 l/sbar
b-value

0.57
Normal nominal flow rate (normalized to DIN 1343)

8700 l/min
Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas
Information on operating and pilot media

Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)

2 – Moderate corrosion stress
Note on materials

RoHS-compliant
LABS (PWIS) conformity

VDMA24364-B1/B2-L
Temperature of medium

-10 °C … 60 °C
Ambient temperature

-10 °C … 60 °C
For use in the food industry

See supplementary material information
Type of mounting

With accessories
Mounting position

Any
Flow direction

Non-reversible
Product weight

580 g
Pneumatic connection 1

G1/2
Pneumatic connection 2

G1/2
Pneumatic connection 3

G1/2
Seals material

TPE-U(PU)
Housing material

Die-cast aluminum

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Frequently Bought Together

  • MSSD-EBSKU:151687 Add to cart
    MSSD

    MSSD-EB

    Rated 0 out of 5
    (0)
    $3.76 Add to cart
  • U-1/2SKU:2310 Add to cart
    U

    U-1/2

    Rated 0 out of 5
    (0)
    $25.68 Add to cart

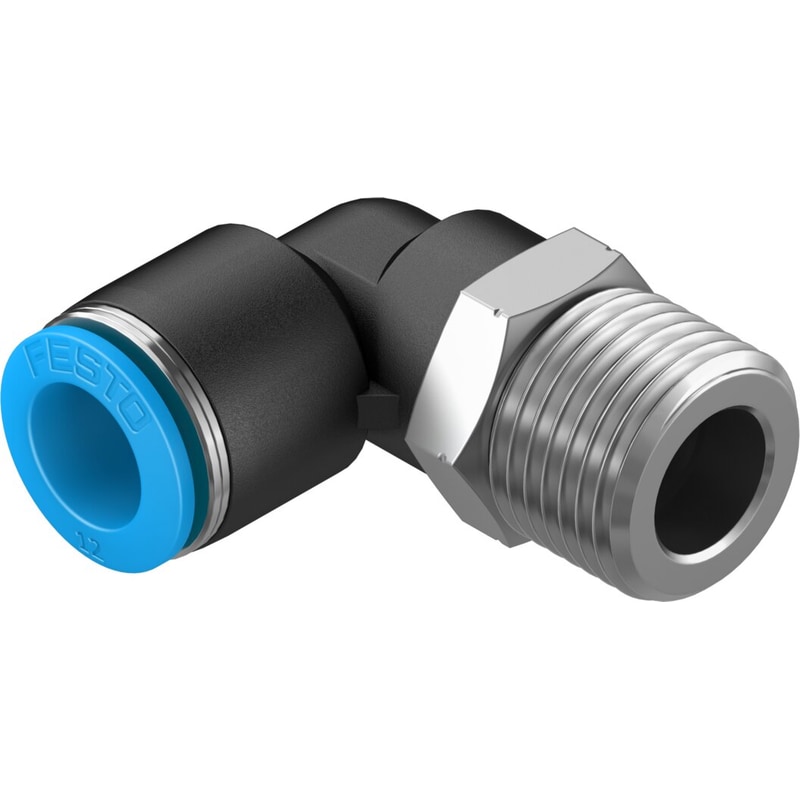

  • Sale! QSL-1/2-12 push-in L-fittingSKU:153054Sale! Add to cart
