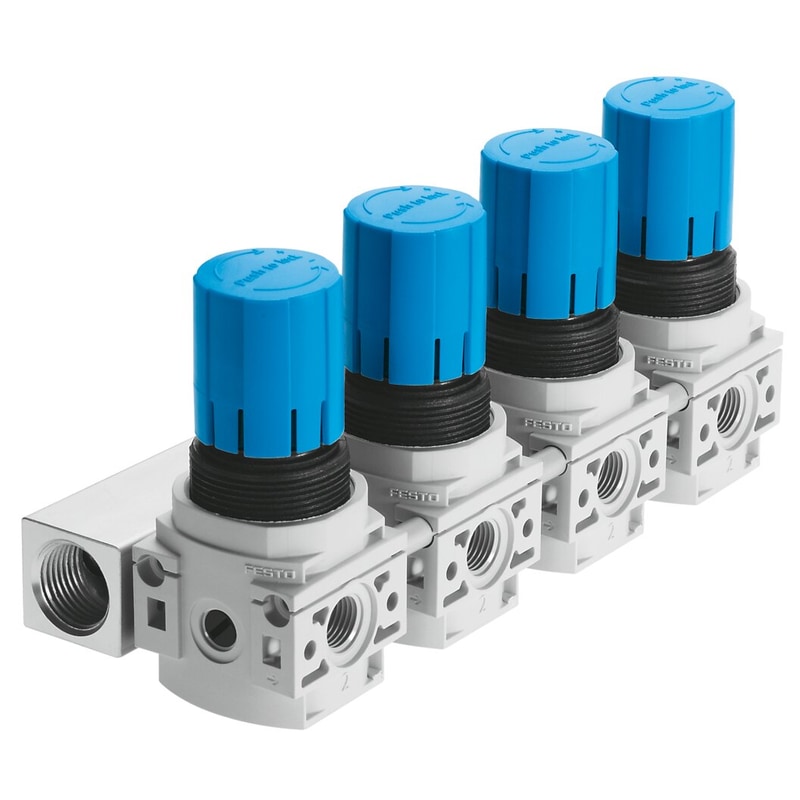

| Size | Mini |
|---|---|
| Type code | LRB |
| Series | DB |
| Actuator lock | Rotary knob with detent |
| Mounting position | Any |
| Design | On P. stripDirectly controlled piston regulator |
| Controller function | Outlet pressure constantWith secondary exhaustingWith return flow function |
| Symbol | 991508 |
| Operating pressure | 1.5 bar … 10 bar |
| Pressure regulation range MPa | 0.05 MPa … 0.7 MPa |
| Pressure regulation range | 0.5 bar … 7 bar |
| Max. pressure hysteresis | 0.5 bar |
| Standard nominal flow rate | ≥ 1000 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Temperature of medium | -5 °C … 50 °C |
| Ambient temperature | -5 °C … 50 °C |
| Pressure regulation range psi | 7 psi … 100 psi |
| Product weight | 1000 g |
| Type of mounting | With accessoriesFront panel mounting |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G¼ |
| Material of plug screw | SteelGalvanized |
| Manifold rail material | Wrought aluminum alloy |
| Sealing ring material | PVC |
| Seals material | NBR |
| Housing material | PA-reinforced |
