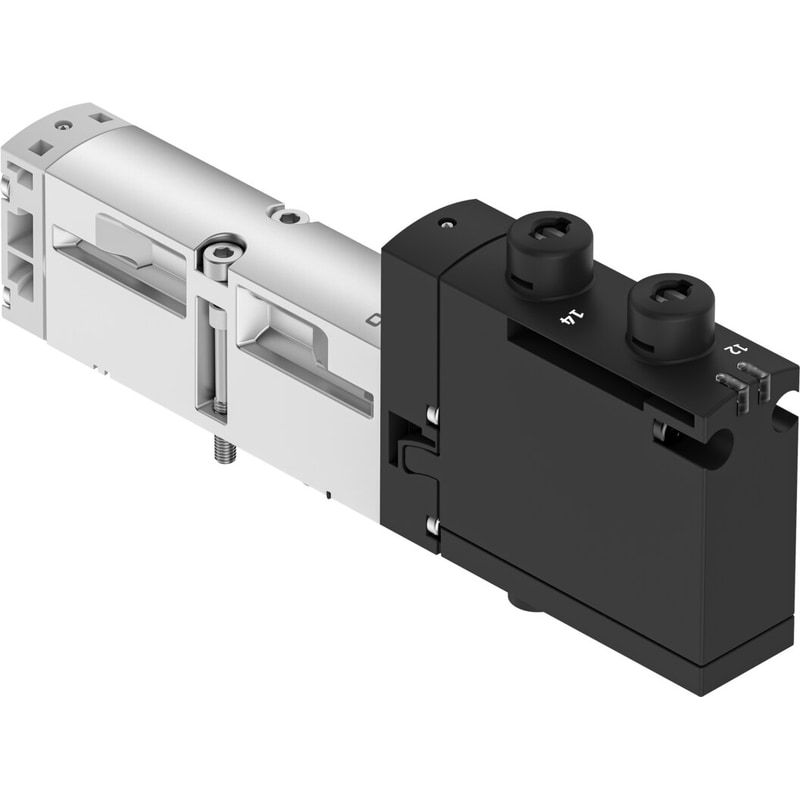

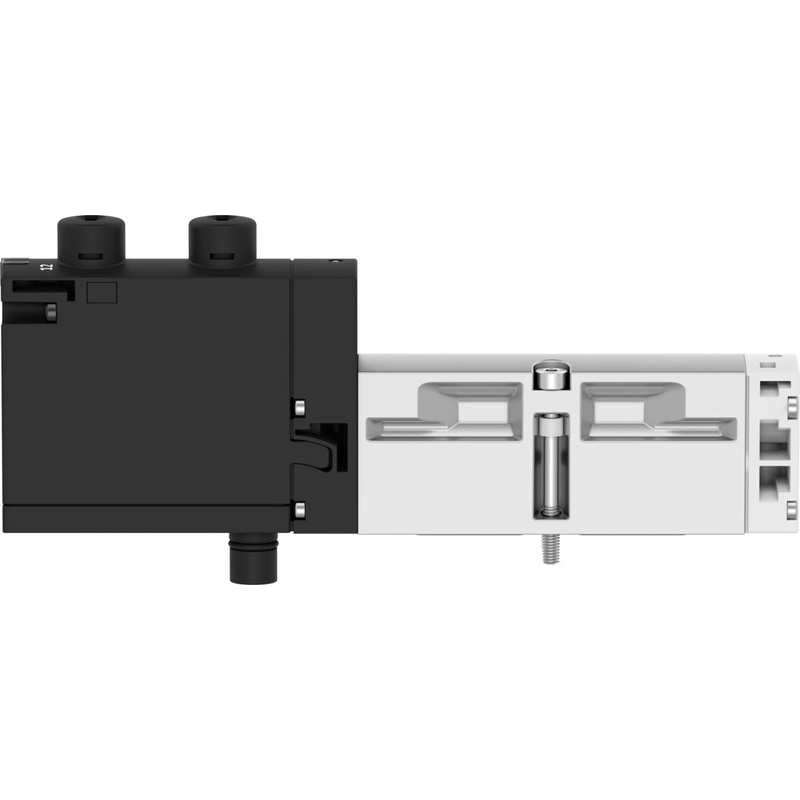

solenoid valve VSVA-B-P53E-ZD-A2-1T1L For valve terminals VTSA and VTSA-F. Valve function=5/3 exhausted, Type of actuation=electrical, Width=18 mm, Standard nominal flow rate=450 l/min, Operating pressure=-0,9 – 10 bar

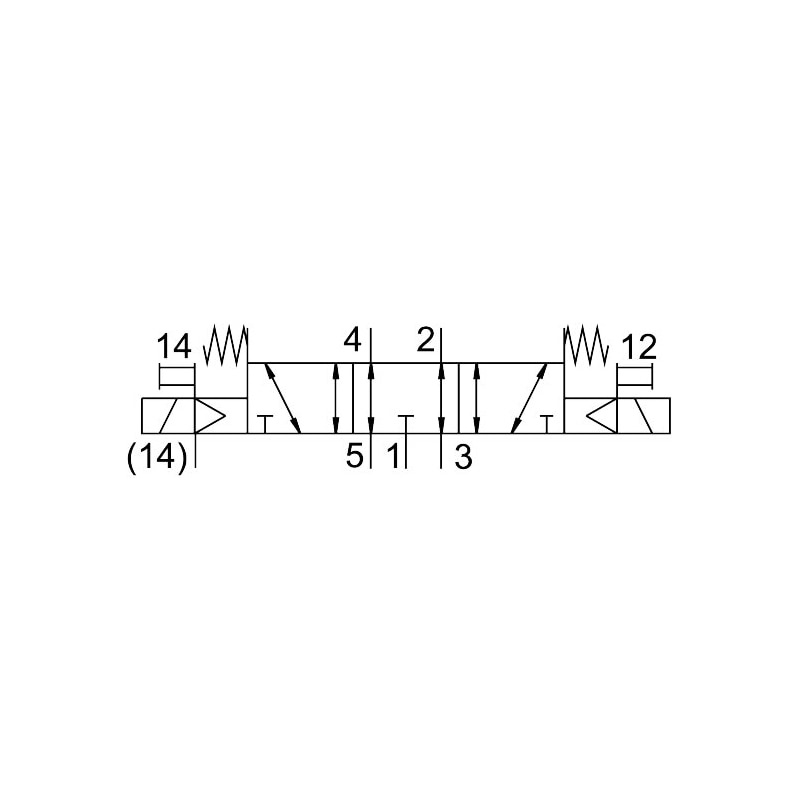

| Valve function | 5/3 exhausted |
|---|---|
| Type of actuation | electrical |
| Width | 18 mm |
| Standard nominal flow rate | 450 l/min |
| Operating pressure | ‘-0.9 … 10 bar |
| Design structure | Piston slide |
| Protection class | IP65NEMA 4 |
| Authorisation | CSA (OL)c UL us – Recognized (OL) |
| Exhaust-air function | throttleable- via flow control plate- via individual sub-base |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingPushingCovered |
| Type of piloting | Piloted |
