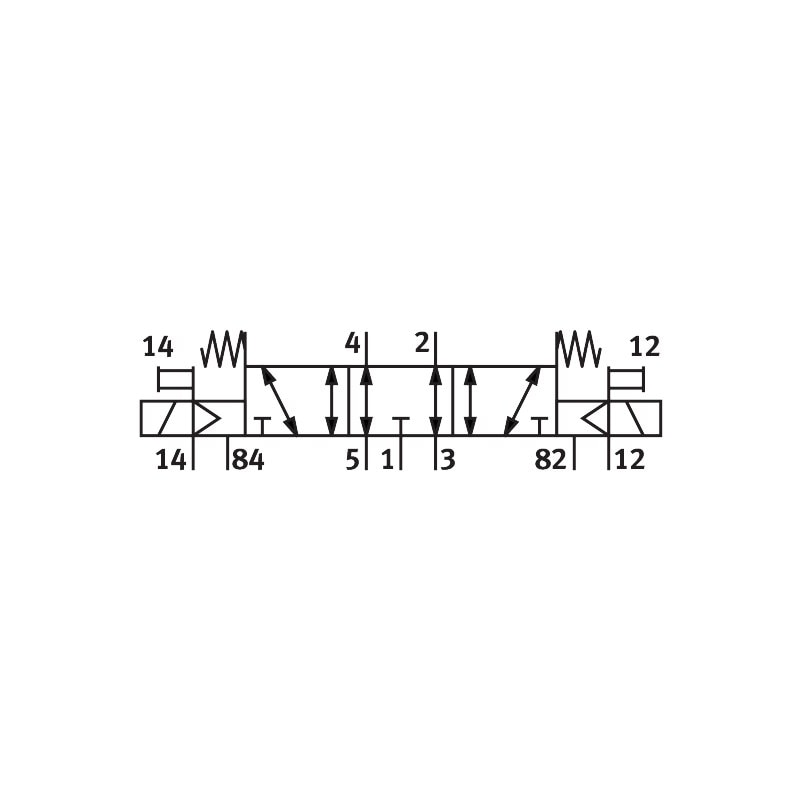

solenoid valve VMPA2-M1H-E-PI For valve terminal MPA-S. Valve function=5/3 exhausted, Type of actuation=electrical, Valve size=20 mm, Standard nominal flow rate=700 l/min, Operating pressure=-0,9 – 10 bar
| Valve function | 5/3 exhausted |
|---|---|
| Type of actuation | electrical |
| Valve size | 20 mm |
| Standard nominal flow rate | 700 l/min |
| Operating pressure | ‘-0.9 … 10 bar |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Protection class | IP65to IEC 60529 |
| Authorisation | c UL us – Recognized (OL) |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingPushing |
| Type of piloting | Piloted |
