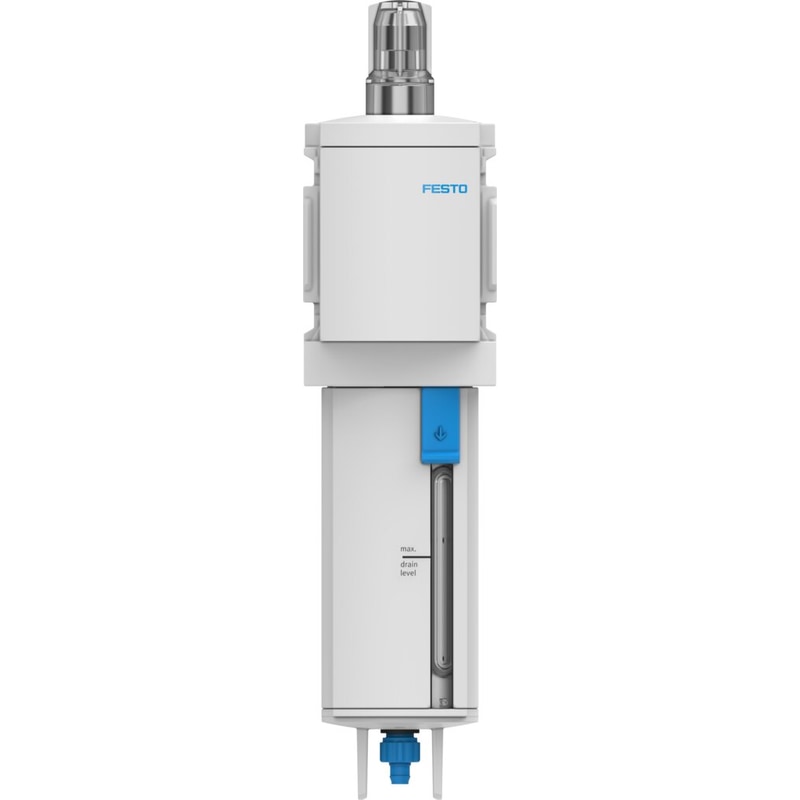

fine filter MS4-LFM-1/4-BRM-DA 1 µm filter, plastic bowl with plastic bowl guard, manual condensate drain, with differential pressure indicator, direction of flow from left to right. Series=MS, Size=4, Design structure=Fibre filter, Grade of filtration=1 µm, Condensate drain=manual rotary
| product type | Micro Filter |
|---|---|
| Port Size | 1/4″ Port Connection |
| filtration | 1µm |
| Bowl Type | Plastic Bowl |
| Drain Type | Manual |
| options | Differential Pressure Display |
| Weight | 0.731053 lbs |
|---|---|
| Dimensions | 9.251969 × 2.362205 × 2.755906 in |
| Series | MS |
| Size | 4 |
| Structural design | Fiber filter |
| Grade of filtration | 1 µm |
| Condensate drain | Manually rotating |
| Symbol | 00991543 |
| Operating pressure | 0 psi … 203 psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:-:4], Inert gas |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [5:-:3] |
| Max. standard flow rate for air quality class | 360 l/min |
| Min. standard flow rate for air quality class | 54 l/min |
| Filter efficiency | 99.99 % |
| Max. condensate volume | 19 ml |
| Bowl guard | Plastic bowl guard |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Storage temperature | -10 °C … 60 °C |
| Filter efficiency, fine particles | 99 % |
| Residual oil content | 0.5 mg/m³ |
| Filter efficiency, oil aerosol | 90 % |
| Differential pressure display | Visual display |
| Type of mounting | With accessories |
| Mounting position | Vertical +/- 5° |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Housing material | Die-cast aluminum |
| Compressed air filter material | Borosilicate fiber |
| Material of bowl | PC |
| Seals material | NBR |
| Note on materials | RoHS-compliant |
| Product weight | 190 g |
