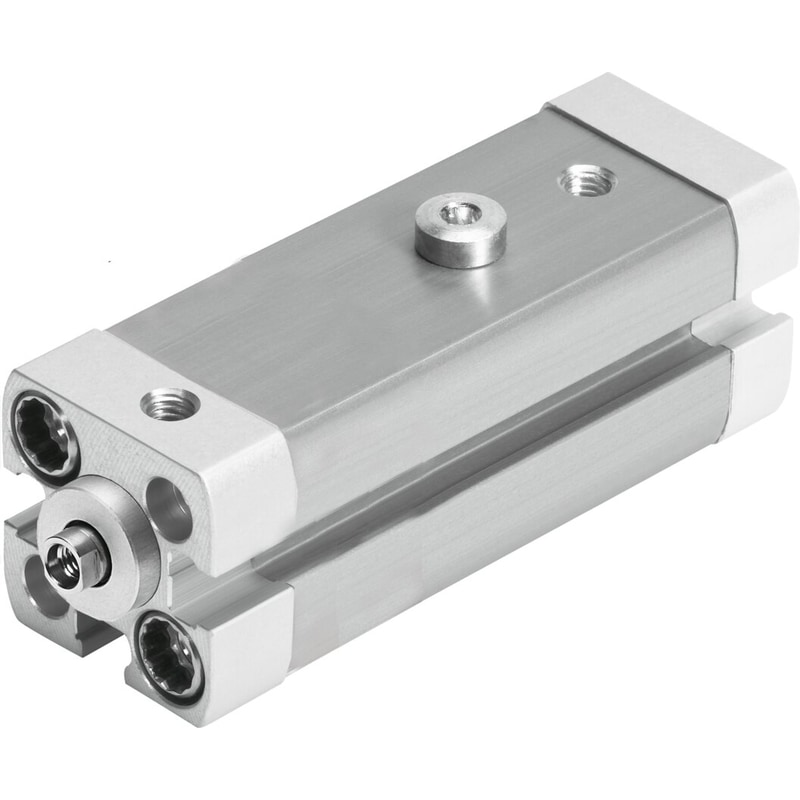

linear/swivel clamp CLR-25-20-R-P-A-K11-R8 clamping system with linear and swivel motion 90 degrees to the right. standard hole pattern according to ISO 21287. With dust and weld spatter protection. Total stroke=33 mm, Piston diameter=25 mm, Piston rod thread=M6, Swivel angle=90 deg +/- 3 deg, Clamping stroke=20 mm
| Weight | 1.060423 lbs |
|---|---|
| Dimensions | 7.086614 × 1.181102 × 1.181102 in |
| Piston diameter | 25 mm |
| Theoretical clamping force at 0.6 MPa (6 bar, 87 psi) | 227 N |
| Clamping stroke | 20 mm |
| Swivel angle | 90 deg +/-3 deg |
