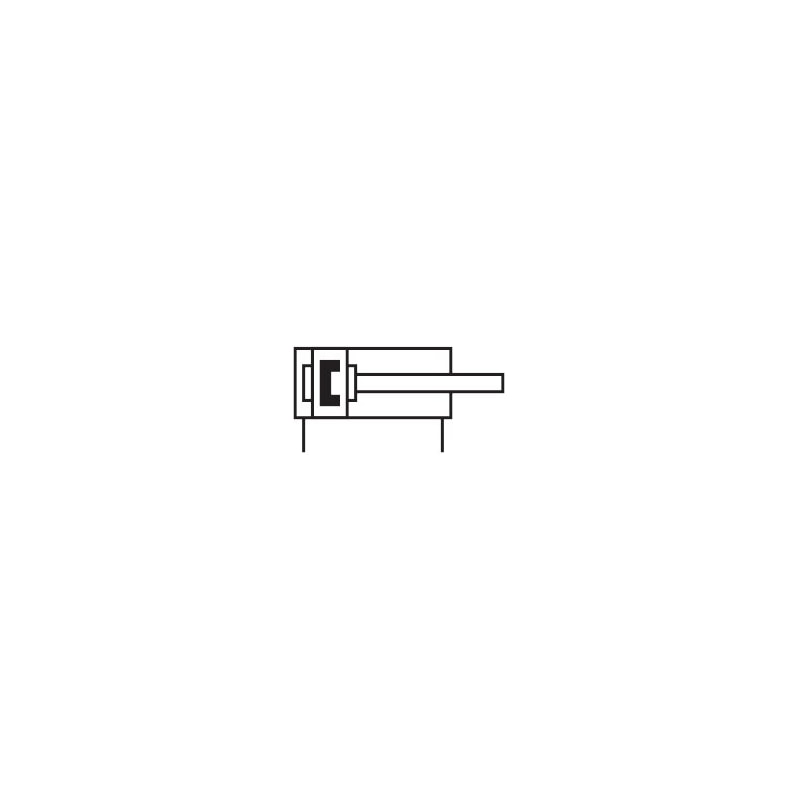

linear/swivel clamp CLR-25-10-L-P-A-K11-R8 clamping system with linear and swivel motion 90 degrees to the left. standard hole pattern according to ISO 21287. With dust and weld spatter protection. Total stroke=23 mm, Piston diameter=25 mm, Piston rod thread=M6, Swivel angle=90 deg +/- 3 deg, Clamping stroke=10 mm
| Weight | 0.839961 lbs |
|---|---|
| Dimensions | 8.267717 × 1.968504 × 1.574803 in |
| Piston diameter | 25 mm |
| Theoretical clamping force at 0.6 MPa (6 bar, 87 psi) | 227 N |
| Clamping stroke | 10 mm |
| Swivel angle | 90 deg +/-3 deg |
