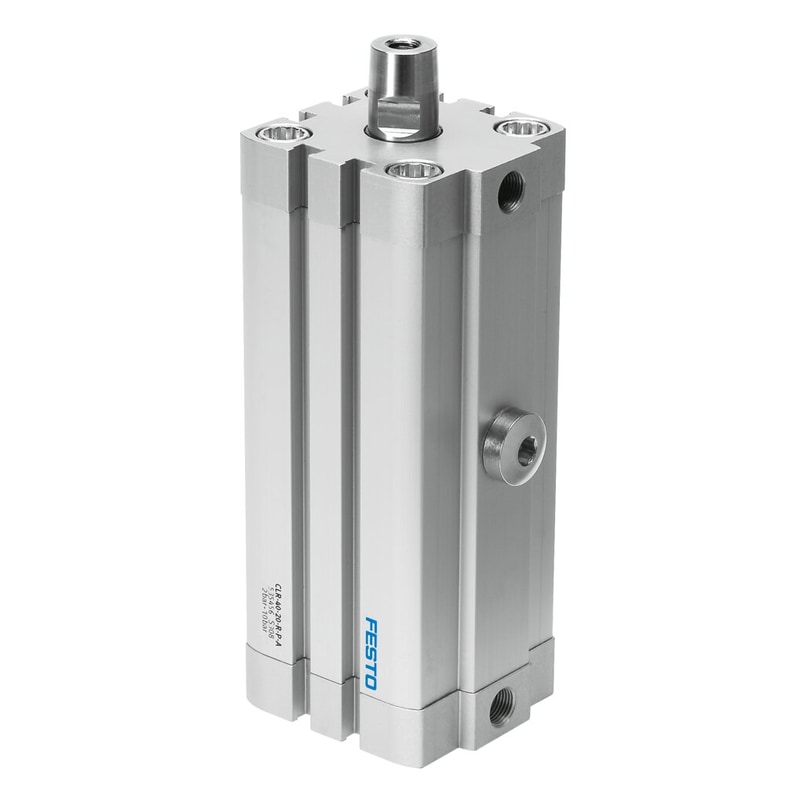

linear/swivel clamp CLR-50-20-G-P-A Clamping system with linear movement, standardised hole pattern to ISO 21287. Total stroke=41 mm, Piston diameter=50 mm, Piston rod thread=M10, Clamping stroke=20 mm, Cushioning=P: Flexible cushioning rings/plates at both ends
| Total stroke | 41 mm |
|---|---|
| Piston diameter | 50 mm |
| Piston rod thread | M10 |
| Clamping stroke | 20 mm |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | For proximity sensor |
| Swivel direction | Straight |
| Operating pressure | 2 … 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
