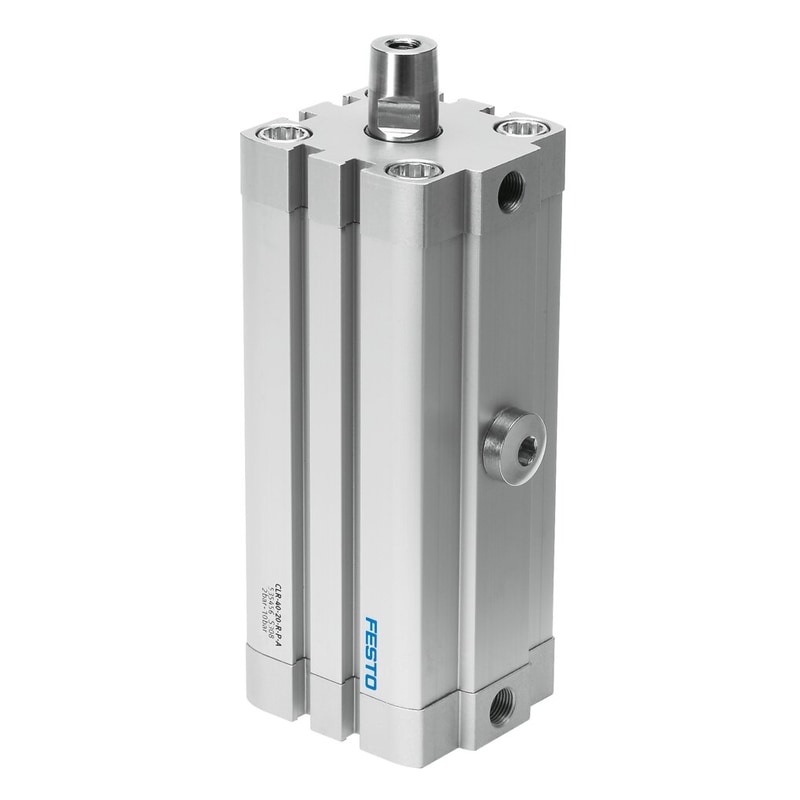

linear/swivel clamp CLR-40-10-G-P-A Clamping system with linear movement, standardised hole pattern to ISO 21287. Total stroke=28 mm, Piston diameter=40 mm, Piston rod thread=M8, Clamping stroke=10 mm, Cushioning=P: Flexible cushioning rings/plates at both ends
| Total stroke | 28 mm |
|---|---|
| Piston diameter | 40 mm |
| Piston rod thread | M8 |
| Clamping stroke | 10 mm |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | For proximity sensor |
| Swivel direction | Straight |
| Operating pressure | 2 … 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
