CLR-25-10-R-P-A

Name: CLR-25-10-R-P-A
Brand: Festo
SKU: 535443
Availability: InStock

$590.82

SKU: 535443
UNSPSC: 31251504
GTIN: 4052568168827

SKU: 535443 Category: CLR Tag: 2021u

CLR_ENUS.PDF

Brand: Festo

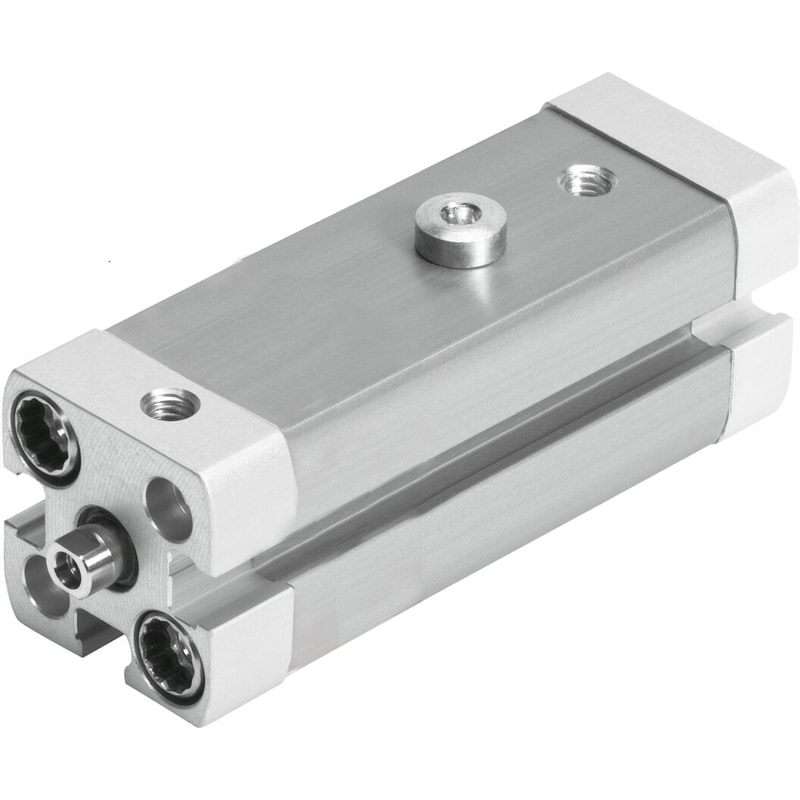

linear/swivel clamp CLR-25-10-R-P-A Clamping system with linear and swivel motion, 90° to the right, standard port pattern per ISO 21287 Total stroke=23 mm, Piston diameter=25 mm, Piston rod thread=M6, Swivel angle=90 deg +/- 3 deg, Clamping stroke=10 mm

Total stroke	23 mm
Piston diameter	25 mm
Piston rod thread	M6
Swivel angle	90 deg +/- 3 deg
Clamping stroke	10 mm
Cushioning	P: Flexible cushioning rings/plates at both ends
Assembly position	Any
Design structure	PistonPiston rodCylinder barrel
Position detection	For proximity sensor
Swivel direction	Right
Operating pressure	2 … 10 bar
Mode of operation	double-acting
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Weight	0.819591 lbs
Dimensions	8.267717 × 1.968504 × 5.905512 in
Piston diameter	25 mm
Theoretical clamping force at 0.6 MPa (6 bar, 87 psi)	227 N
Clamping stroke	10 mm
Swivel angle	90 deg +/-3 deg

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

How to Use

Enter SKUs above (one per line) - optionally add quantity after SKU, separated by comma (e.g., "SKU123,5")
Click "Search SKUs" to find products
Adjust quantities as needed
Click "Add" or "Add All to Cart"

Maximum 40 SKUs per search

Example format:
SKU123
SKU456,10
SKU789,3

CLR-25-10-R-P-A

$590.82

CLR-25-10-R-P-A

Reviews

Reach Out

Connect With Us

CLR-25-10-R-P-A

Reviews

Frequently Bought Together

SMT-8M-A-PS-24V-E-0,3-M8D

GRLA-1/8-QS-6-D

GRLA-M5-QS-6-D

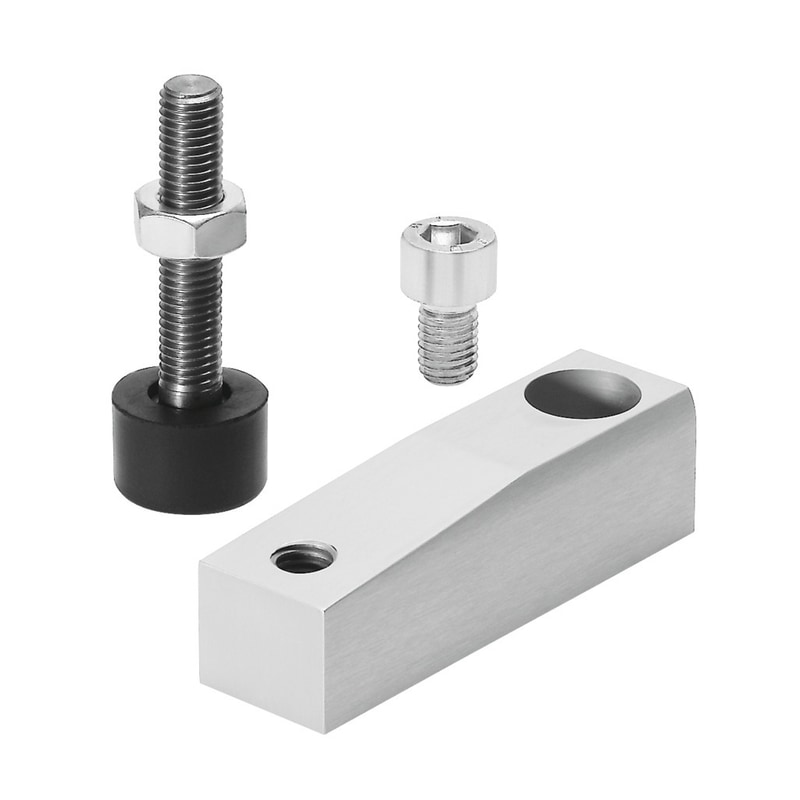

CLR-20/25-FS
