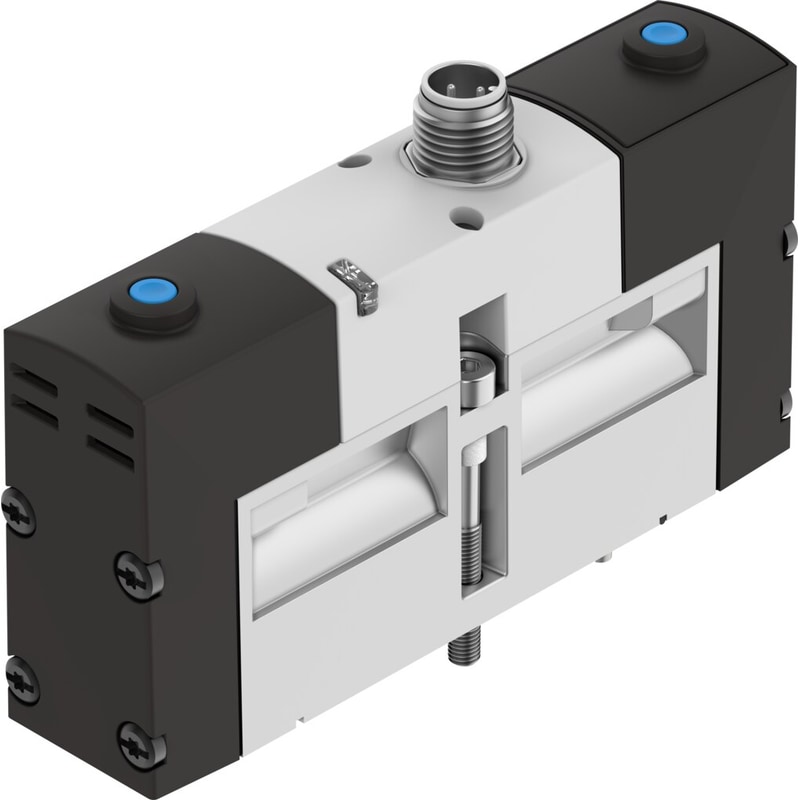

solenoid valve VSVA-B-B52-H-A1-1R5L with central plug, round design M12x1. Valve function=5/2 bistable, Type of actuation=electrical, Width=26 mm, Operating pressure=3 – 8 bar, Design structure=Piston slide

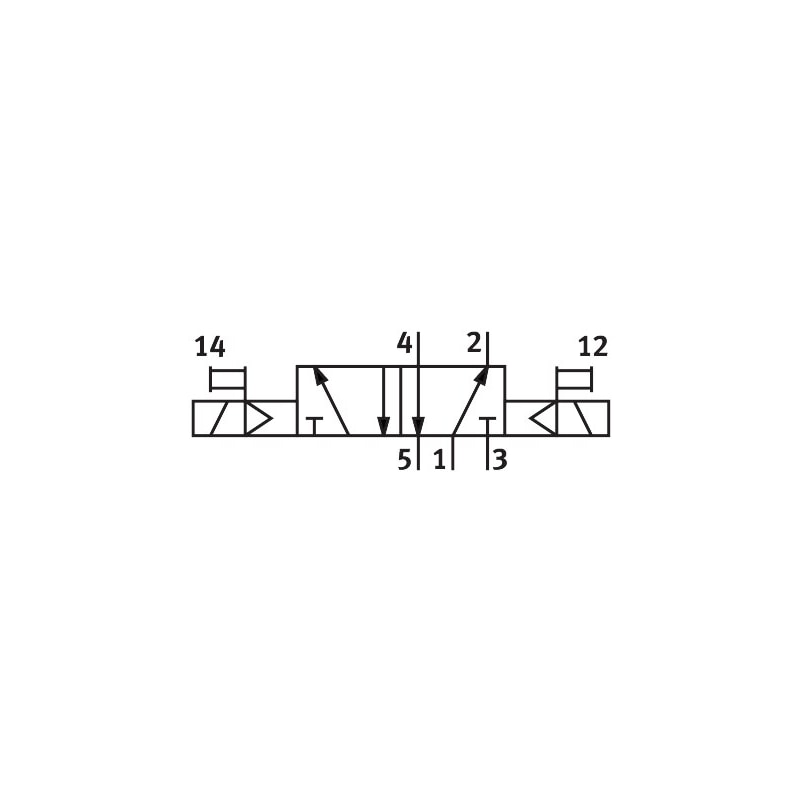

| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Width | 26 mm |
| Operating pressure | 3 … 8 bar |
| Design structure | Piston slide |
| Protection class | IP65NEMA 4 |
| Authorisation | C-Tickc CSA us (OL)c UL us – Recognized (OL) |
| Nominal size | 9 mm |
| Grid dimension | 27 mm |
| Exhaust-air function | throttleable- via flow control plate- via individual sub-base |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | ISO 15407-1 |
