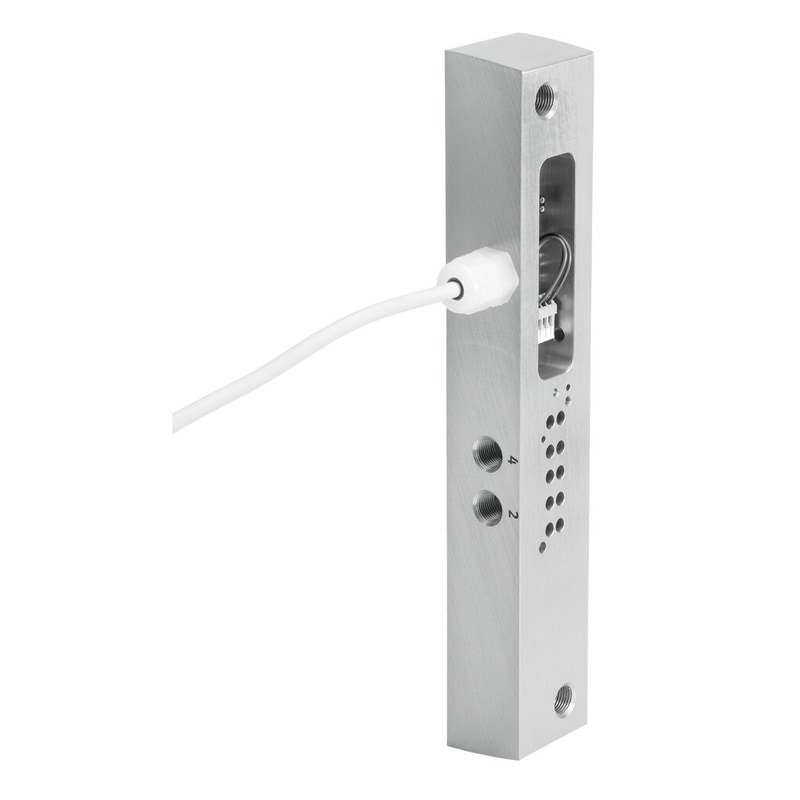

sub-base CDSV5.0-AS-1/8 For CDSV individual valves, suitable for the food processing industry Max. number of valve positions=1, Nominal operating voltage DC=24 V, Corrosion resistance classification CRC=3 – High corrosion stress, Medium temperature=-5 – 50 °C, Sound pressure level=75 dB(A)
| Max. number of valve positions | 1 |
|---|---|
| Nominal operating voltage DCÂ | 24 V |
| Corrosion resistance classification CRCÂ | 3 – High corrosion stress |
| Medium temperature | ‘-5 … 50 °C |
| Sound pressure level | 75 dB(A) |
| Protection class | IP65IP66IP67NEMA 4 |
| Ambient temperature | ‘-5 … 50 °C |
| Product weight | 690 g |
| Electrical connection | Cable |
| Mounting type | with through holewith internal (female) thread |
| Scavenging orifice connection | M5 |
| Pilot exhaust port 82/84Â | M5 |
| Pilot air port 12Â | M5 |
