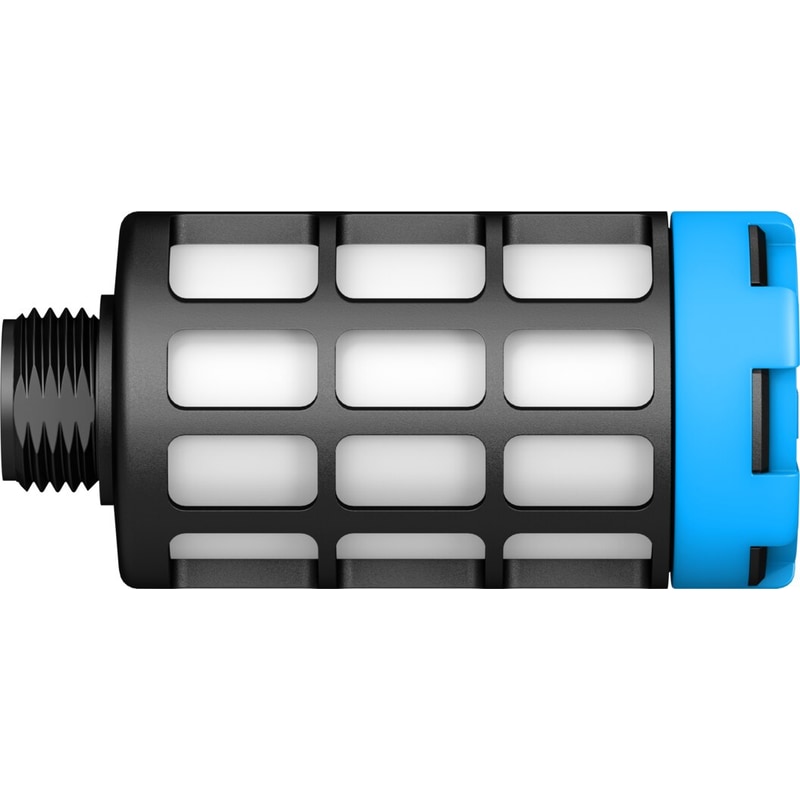

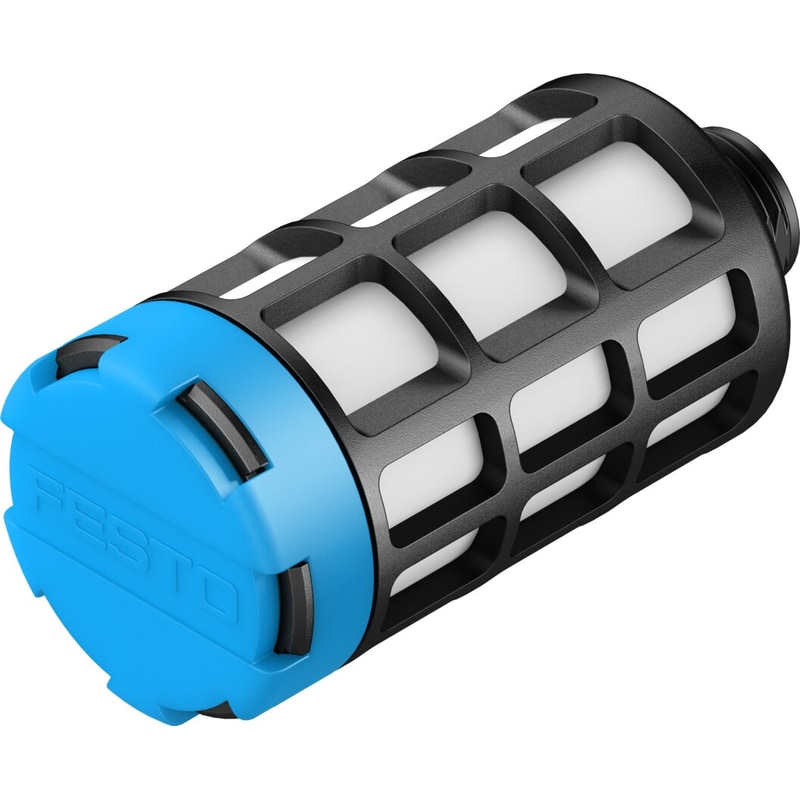

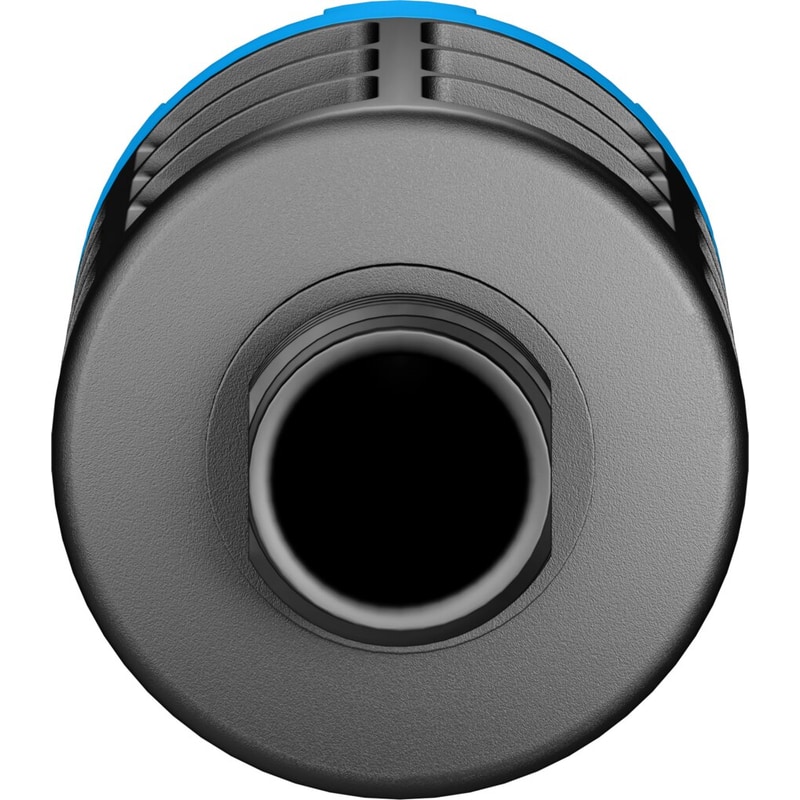

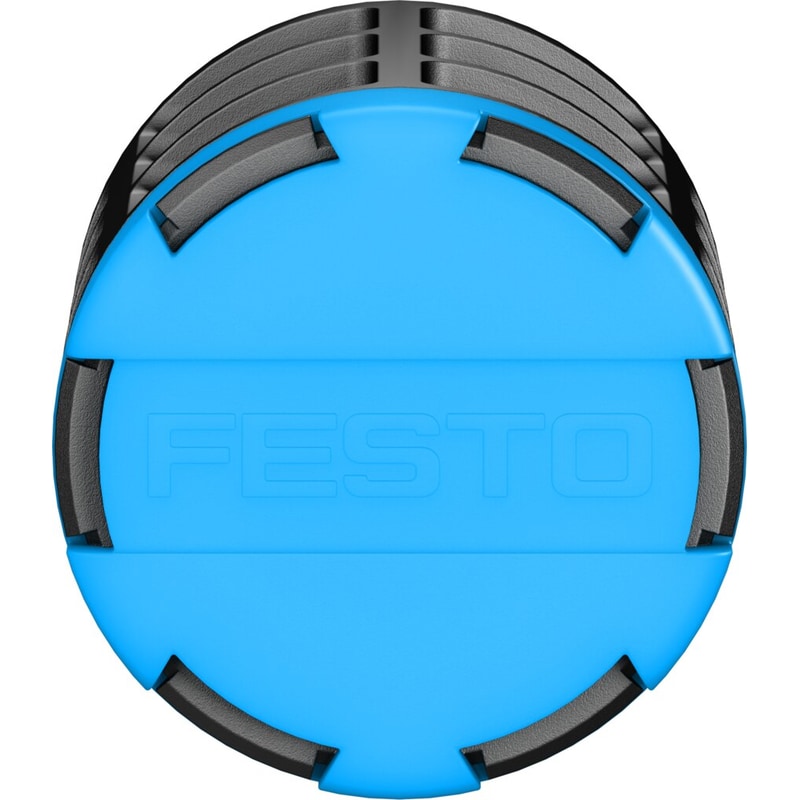

U-1/2-20 Silencer (Pack of 20)

$293.20

Sold in Pack of 20

SKU: 534225 Category: Tags: ,
Festo

silencer U-1/2-20 For reducing noise and avoiding contamination at the exhaust ports of pneumatic components. Assembly position=Any, Container size=20, Operating pressure=0 – 10 bar, Flow rate to atmosphere=10600 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]

Assembly position  Any
Container size  20
Operating pressure  0 … 10 bar
Flow rate to atmosphere  10,600 l/min
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium  Lubricated operation possible (subsequently required for further operation)
Sound pressure level  80 dB(A)
Ambient temperature  ‘-10 … 70 °C
Pneumatic connection  G1/2
Material of silencer insert  PE
Materials note  Free of copper and PTFEConforms to RoHS
Assembly position

Any

Container size

20

Operating pressure

0 … 10 bar

Flow rate to atmosphere

10,600 l/min

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:-:-]

Note on operating and pilot medium

Lubricated operation possible (subsequently required for further operation)

Sound pressure level

80 dB(A)

Ambient temperature

-10 … 70 °C

Pneumatic connection

G1/2

Material of silencer insert

PE

Materials note

Free of copper and PTFEConforms to RoHS
