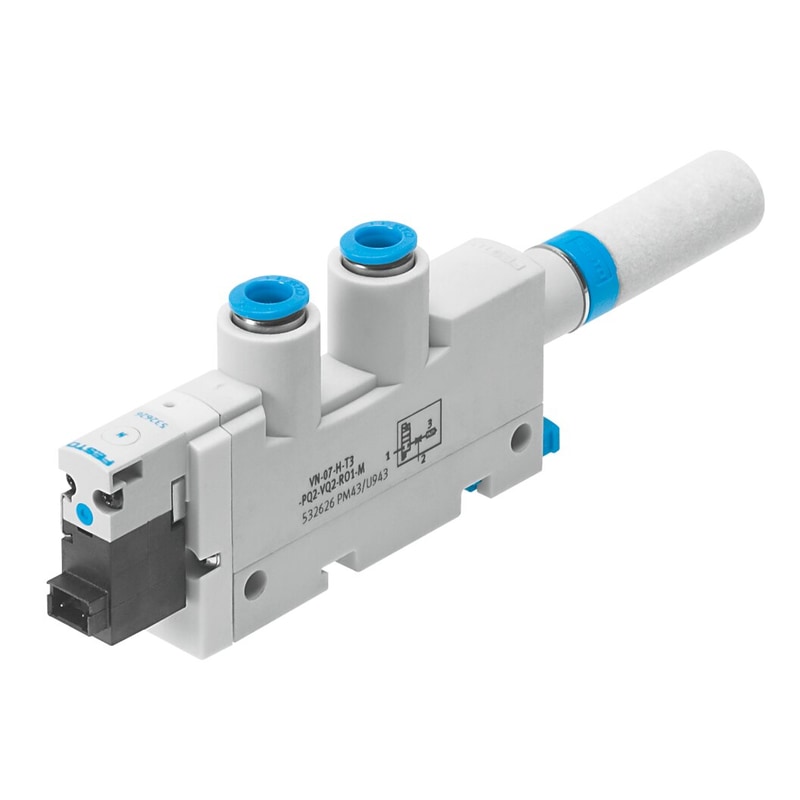

vacuum generator VN-07-L-T3-PQ2-VQ2-RO1-M With built-in solenoid valve. Standard, high suction rate, width 14 mm, T shape with plug connector and open silencer. Nominal size, Laval nozzle=0,7 mm, Grid dimension=14 mm, Design, silencer=open, Assembly position=Any, Ejector characteristic=(* Standard, * High suction volume)
| Nominal size, Laval nozzle | 0.7 mm |
|---|---|
| Grid dimension | 14 mm |
| Design, silencer | open |
| Assembly position | Any |
| Ejector characteristic | StandardHigh suction volume |
| Manual override | Pushing |
| Integrated function | Electrical on-off valveOpen silencer |
| Design structure | T-shaped |
| Valve function | 43498 |
| Operating pressure for max. suction rate | 4 bar |
| Operating pressure | 2 … 8 bar |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 30.9 l/min |
