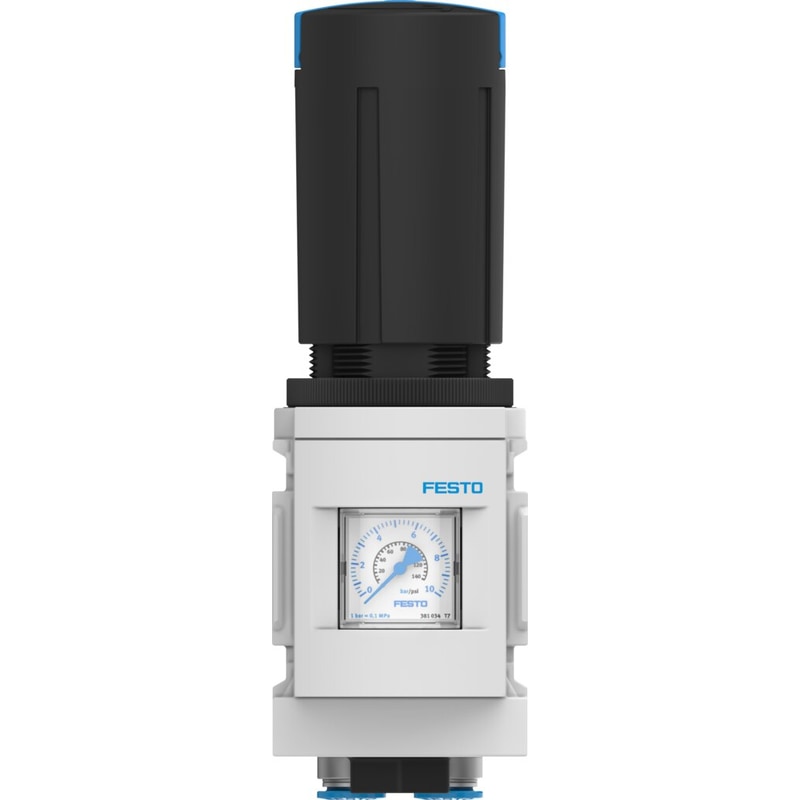

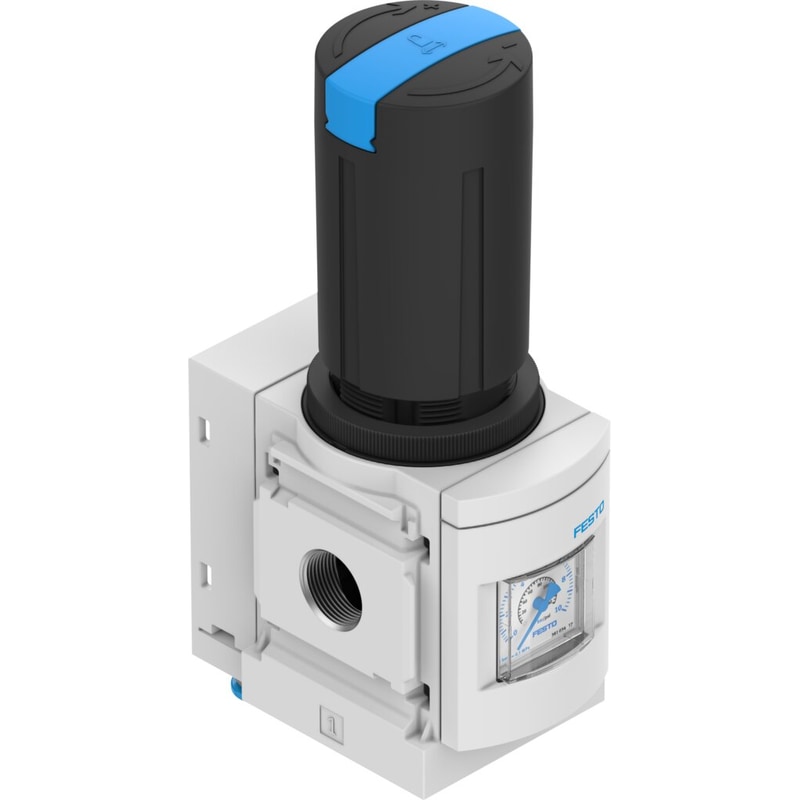

MS6N-LRB-1/2-D7-AS-BI

$121.26

SKU: 531828
UNSPSC: 27131603
GTIN:

SKU: 531828 Category: Tag: Brand:

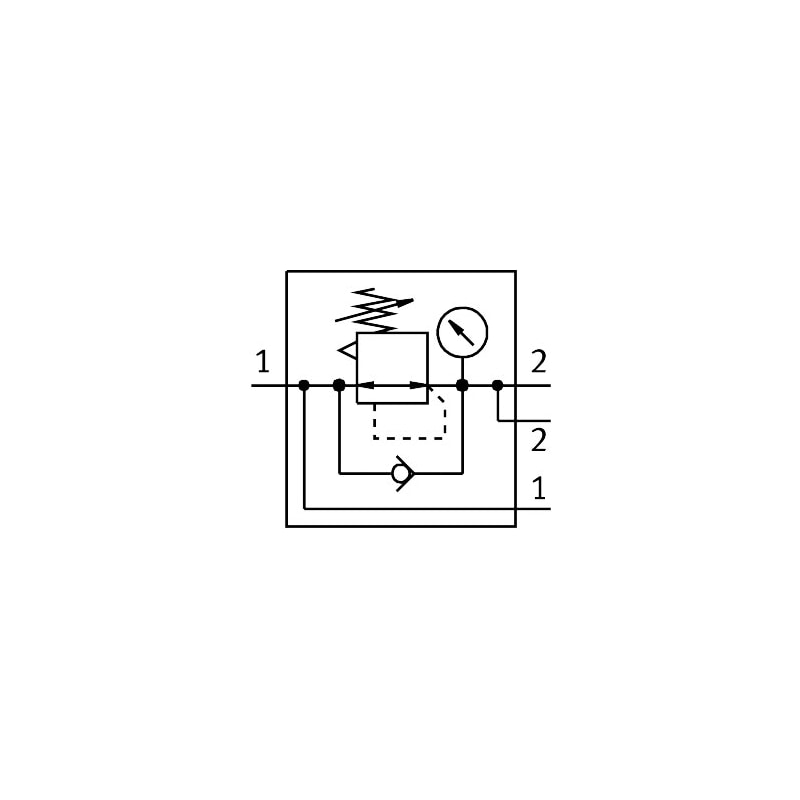

pressure regulator MS6N-LRB-1/2-D7-AS-BI For manifold assembly, angled outlet block with QS push-in connector, 12 bar maximum output pressure, with pressure gauge, P2 connection at rear. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Any, Design structure=(* directly-controlled diaphragm regulator, * with looped-through compressed air supply)

Size 6
Series MS
Actuator lock Rotary knob with lockwith accessories, lockable
Assembly position Any
Design structure directly-controlled diaphragm regulatorwith looped-through compressed air supply
Controller function Output pressure constantwith initial pressure compensationwith secondary exhaust
Pressure gauge with pressure gauge
Operating pressure 0.8 … 20 bar
Pressure regulation range 0.5 … 12 bar
Max. pressure hysteresis 0.25 bar
Standard nominal flow rate 800 l/min
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Size

6

Series

MS

Actuator lock

Rotary knob with lockwith accessories, lockable

Assembly position

Any

Design structure

directly-controlled diaphragm regulatorwith looped-through compressed air supply

Controller function

Output pressure constantwith initial pressure compensationwith secondary exhaust

Pressure gauge

with pressure gauge

Operating pressure

0.8 … 20 bar

Pressure regulation range

0.5 … 12 bar

Max. pressure hysteresis

0.25 bar

Standard nominal flow rate

800 l/min

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases

Note on operating and pilot medium

Lubricated operation possible (subsequently required for further operation)
