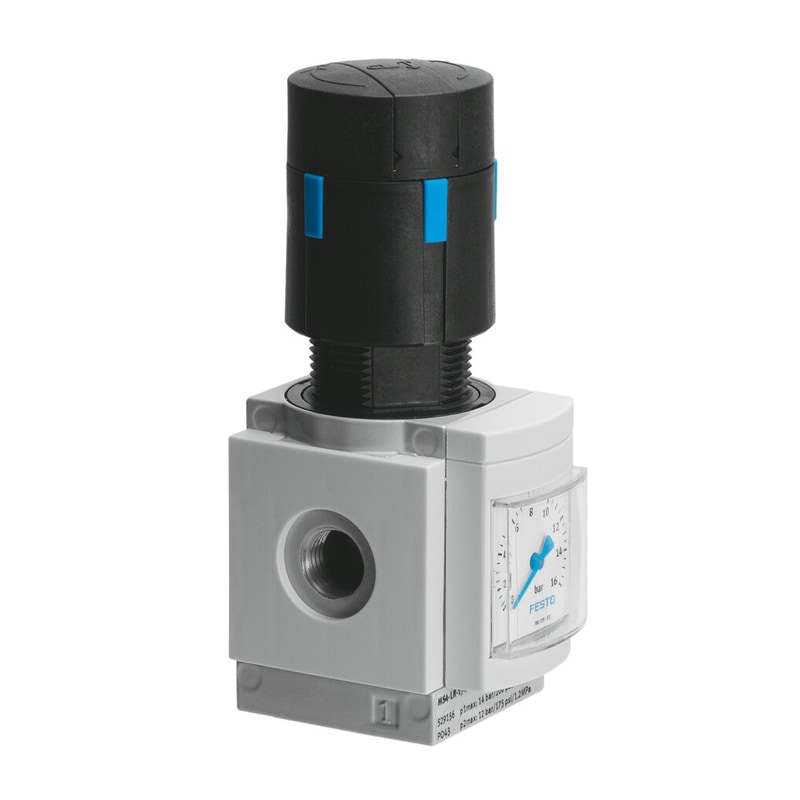

pressure regulator MS6N-LRB-1/2-D7-AS For manifold assembly, 12 bar maximum output pressure, with pressure gauge, lockable regulator head, P2 connection at rear. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Any, Design structure=(* directly-controlled diaphragm regulator, * with looped-through compressed air supply)
Size | 6 |
---|---|
Series | MS |
Actuator lock | Rotary knob with lockwith accessories, lockable |
Assembly position | Any |
Design structure | directly-controlled diaphragm regulatorwith looped-through compressed air supply |
Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaust |
Pressure gauge | with pressure gauge |
Operating pressure | 0.8 … 20 bar |
Pressure regulation range | 0.5 … 12 bar |
Max. pressure hysteresis | 0.25 bar |
Standard nominal flow rate | 5,500 l/min |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
