$38.83
SKU: 531702
UNSPSC: 27131604
GTIN:
Availability: 50 in stock
lubricator MS4N-LOE-1/4-R Plastic bowl with plastic bowl guard, direction of flow: from left to right. Size=4, Series=MS, Assembly position=Vertical +/- 5°, Design structure=proportional standard mist lubricator, Max. oil capacity=30 ml
| product type | Lubricator |
|---|---|
| Port Size | 1/4″ Port Connection |
| Bowl Type | Plastic Bowl |
| Weight | 0.70107 lbs |
|---|---|
| Dimensions | 7.086614 × 1.968504 × 2.952756 in |
| Size | 4 |
| Series | MS |
| Mounting position | Vertical +/- 5° |
| Structural design | Proportional standard oil mist lubricator |
| Max. oil capacity | 30 cm³ |
| Bowl guard | Plastic bowl guard |

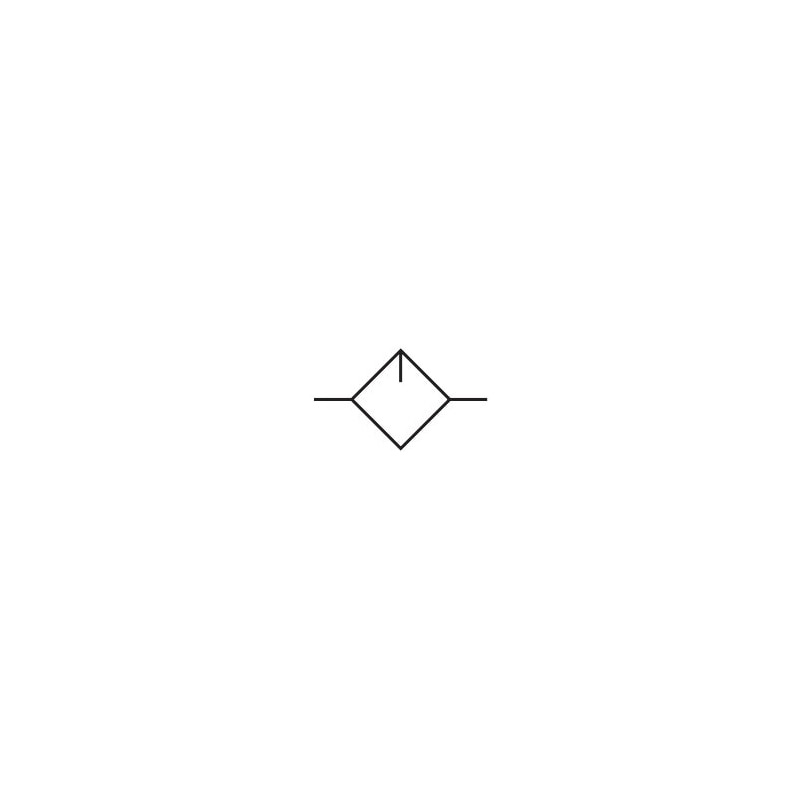

| Symbol | 00991532 |
| Operating pressure | 1 bar … 12 bar |
| Minimum flow rate for lubricator function | 40 l/min |
| Normal nominal flow rate (normalized to DIN 1343) | 2200 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 °C … 60 °C |
| For use in the food industry | See supplementary material information |
| Temperature of medium | -10 °C … 60 °C |
| Oil viscosity | ISO VG 32 |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 194 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 2 | 1/4 NPT |
| Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum |
| Material of bowl | PC |
