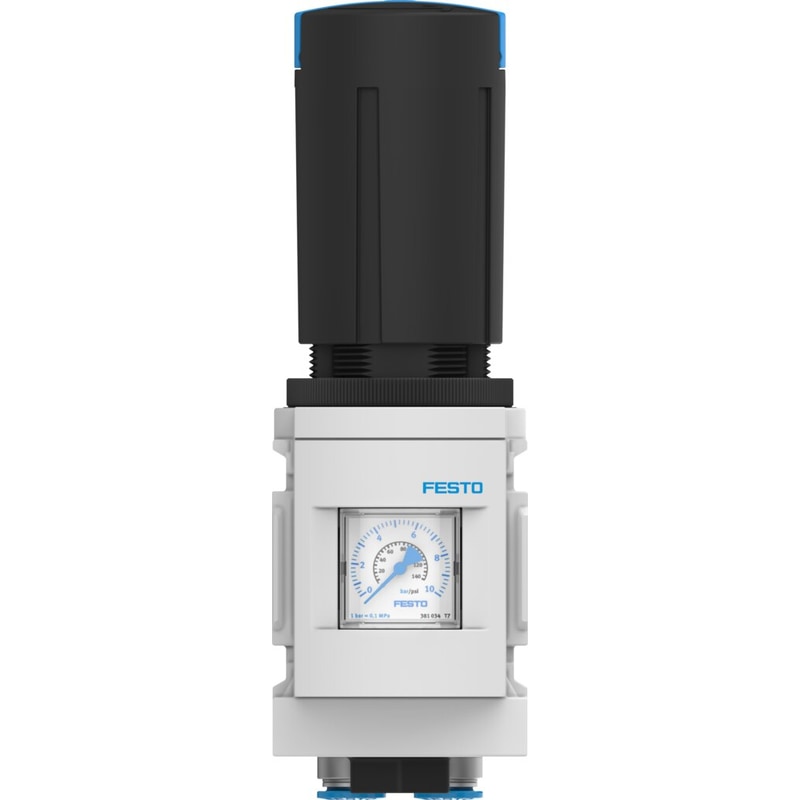

pressure regulator MS6-LRB-1/2-D6-AS-BD-Z For manifold assembly, angled outlet block with QS push-in connector, 7 bar maximum output pressure, with pressure gauge, P2 connection at front. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Any, Design structure=(* directly-controlled diaphragm regulator, * with looped-through compressed air supply)
| Size | 6 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with lockwith accessories, lockable |
| Assembly position | Any |

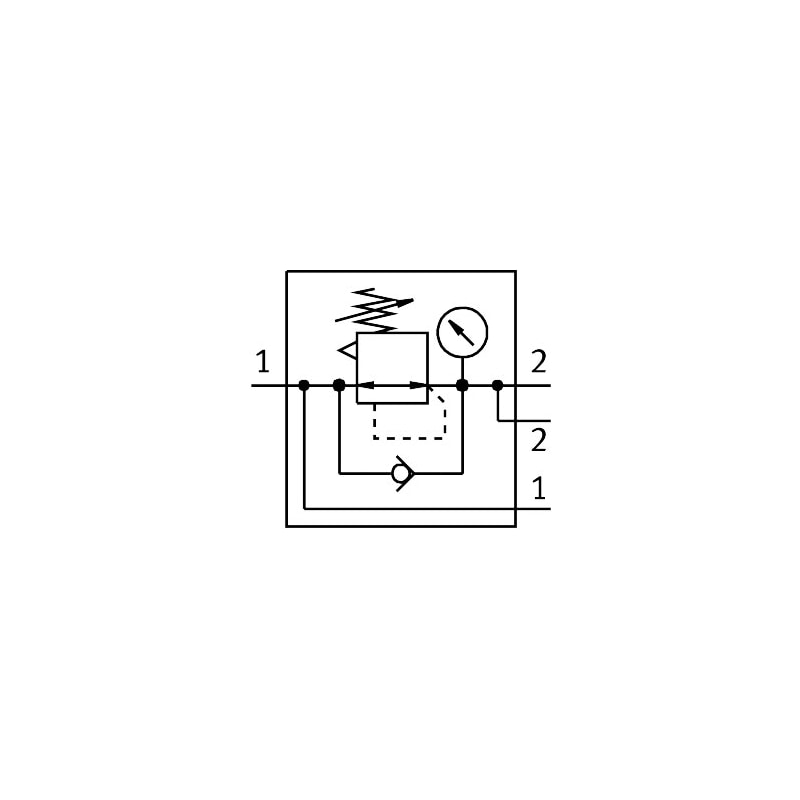

| Design structure | directly-controlled diaphragm regulatorwith looped-through compressed air supply |
| Controller function | Output pressure constantwith initial pressure compensationwith secondary exhaust |
| Pressure gauge | with pressure gauge |
| Operating pressure | 0.8 … 20 bar |
| Pressure regulation range | 0.3 … 7 bar |
| Max. pressure hysteresis | 0.25 bar |
| Standard nominal flow rate | 880 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
