MSB6-1/2:J1D1A1-WP

$518.38

SKU: 530222
UNSPSC: 27131604
GTIN: 4052568164751

SKU: 530222 Category: Tag:
Festo

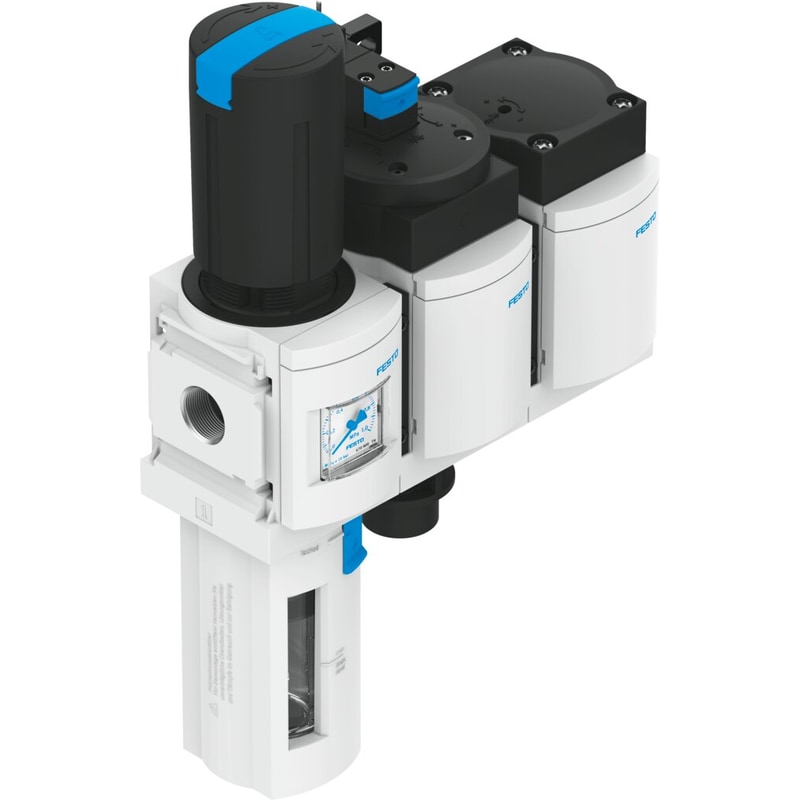

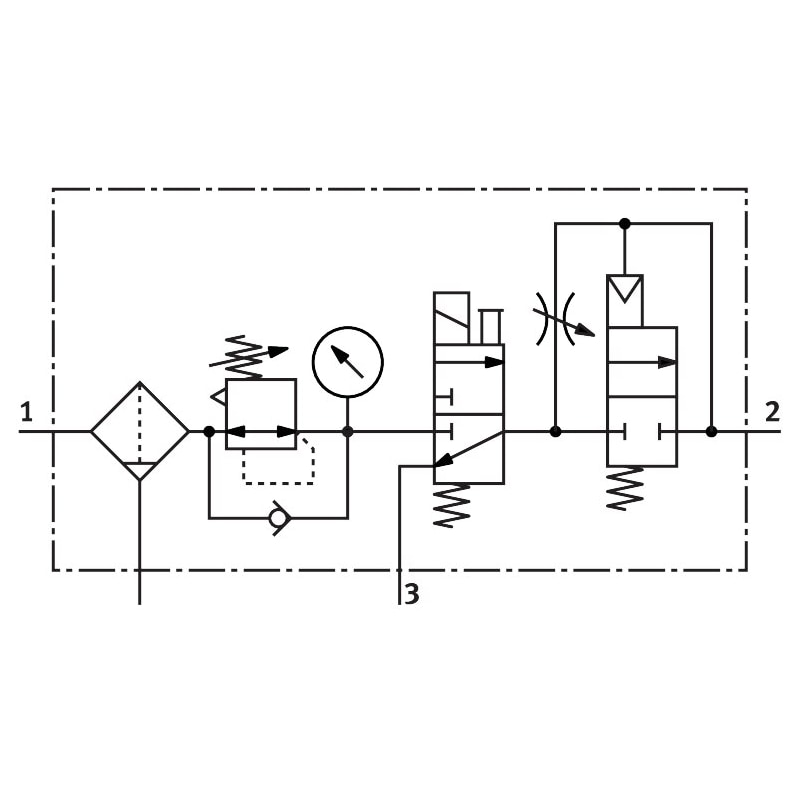

service unit combination MSB6-1/2:J1D1A1-WP Consisting of filter regulator, electrical on-off valve, pneumatic soft-start valve and wall mounting plate. 12 bar maximum output pressure, 40 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=40 µm

Size  6
Series  MS
Actuator lock  Rotary knob with lockwith accessories, lockable
Assembly position  Vertical +/- 5°
Grade of filtration  40 µm
Condensate drain  manual rotary
Design structure  Start-up valveOn/off valveFilter regulator with pressure gauge
Controller function  Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow
Bowl guard  Plastic guard
Pressure gauge  with pressure gauge
Operating pressure  4.5 … 18 bar
Pressure regulation range  4 … 12 bar
Standard nominal flow rate  3,100 l/min
Size

6

Series

MS

Actuator lock

Rotary knob with lockwith accessories, lockable

Assembly position

Vertical +/- 5°

Grade of filtration

40 µm

Condensate drain

manual rotary

Design structure

Start-up valveOn/off valveFilter regulator with pressure gauge

Controller function

Output pressure constantwith initial pressure compensationwith secondary exhaustwith return flow

Bowl guard

Plastic guard

Pressure gauge

with pressure gauge

Operating pressure

4.5 … 18 bar

Pressure regulation range

4 … 12 bar

Standard nominal flow rate

3,100 l/min
