$42.04
SKU: 529419
UNSPSC: 27131603
GTIN: 4052568085070
Availability: 13 in stock

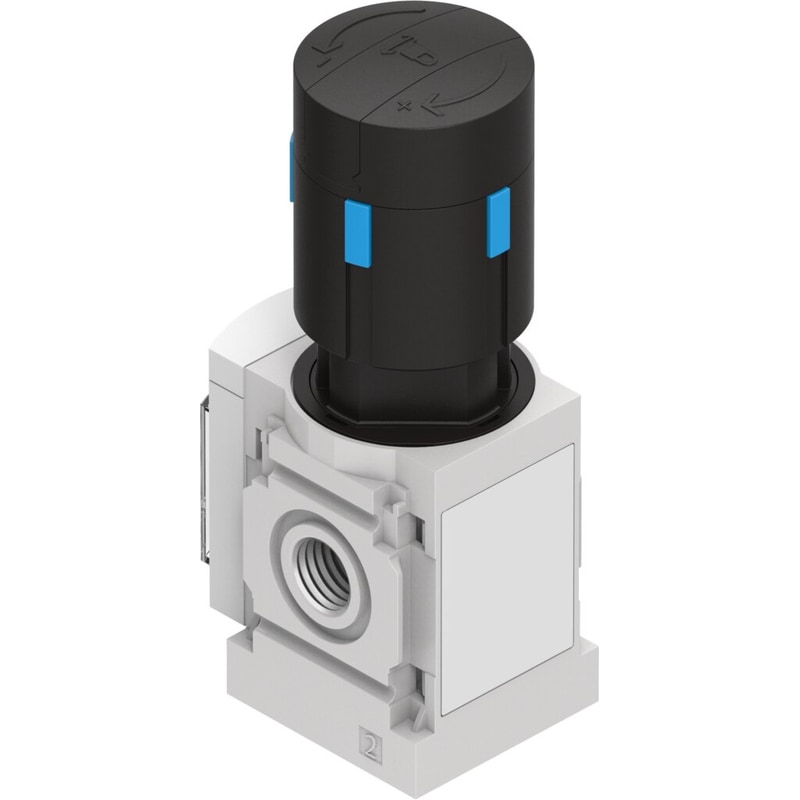

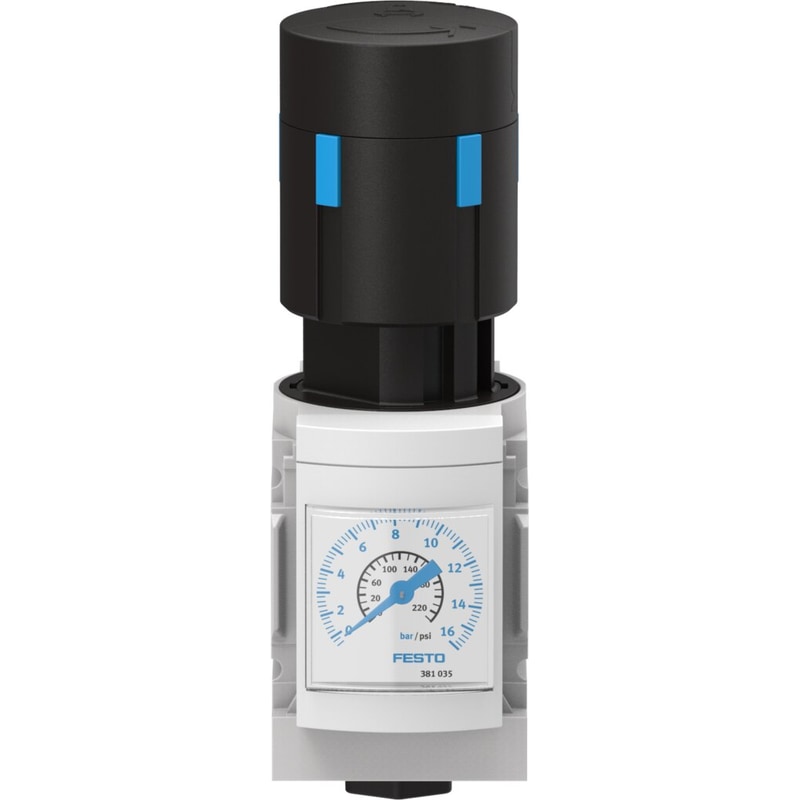

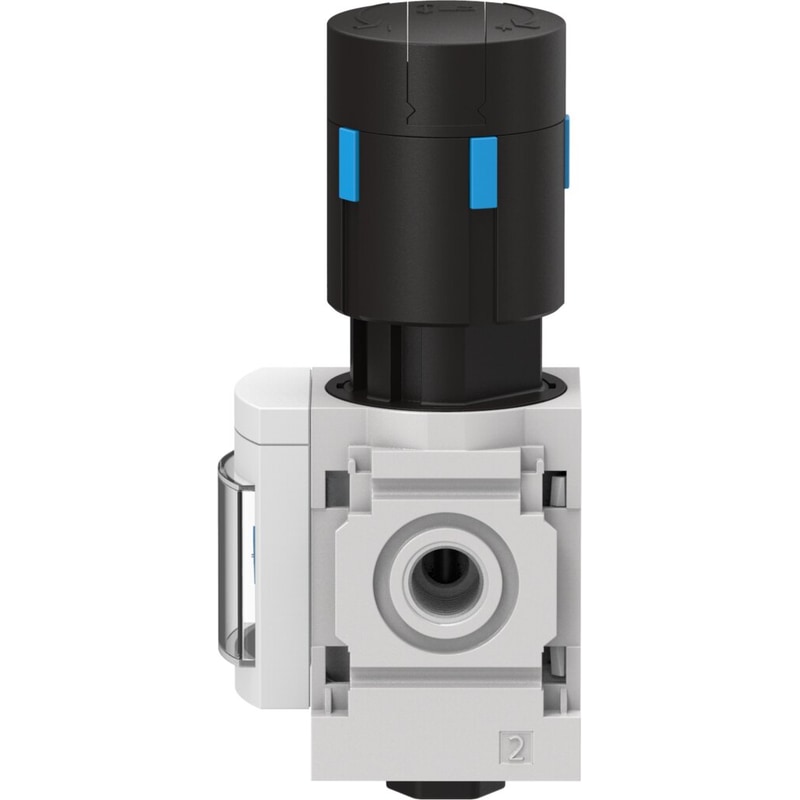

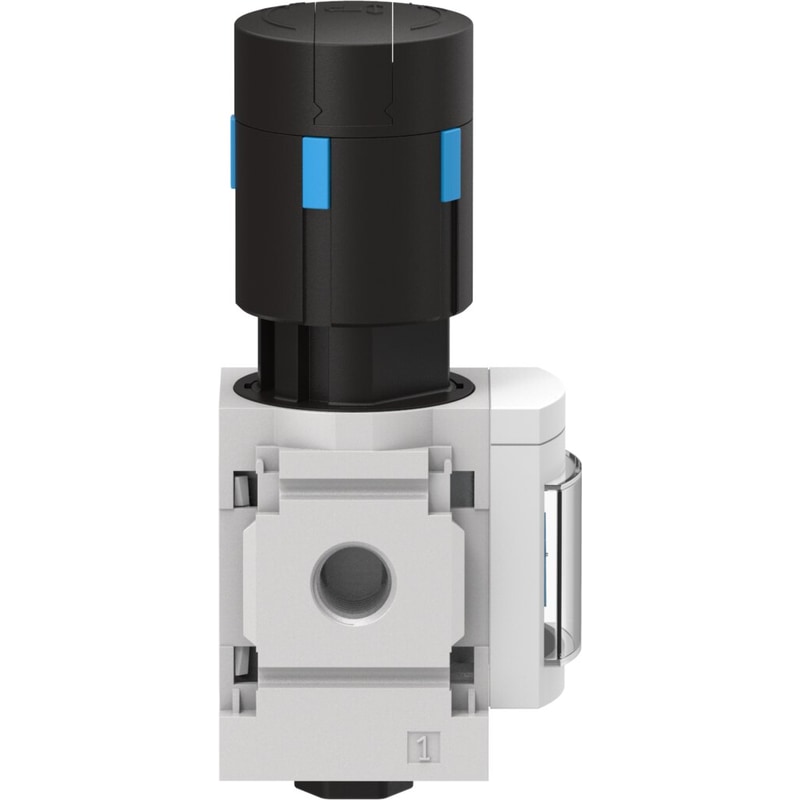

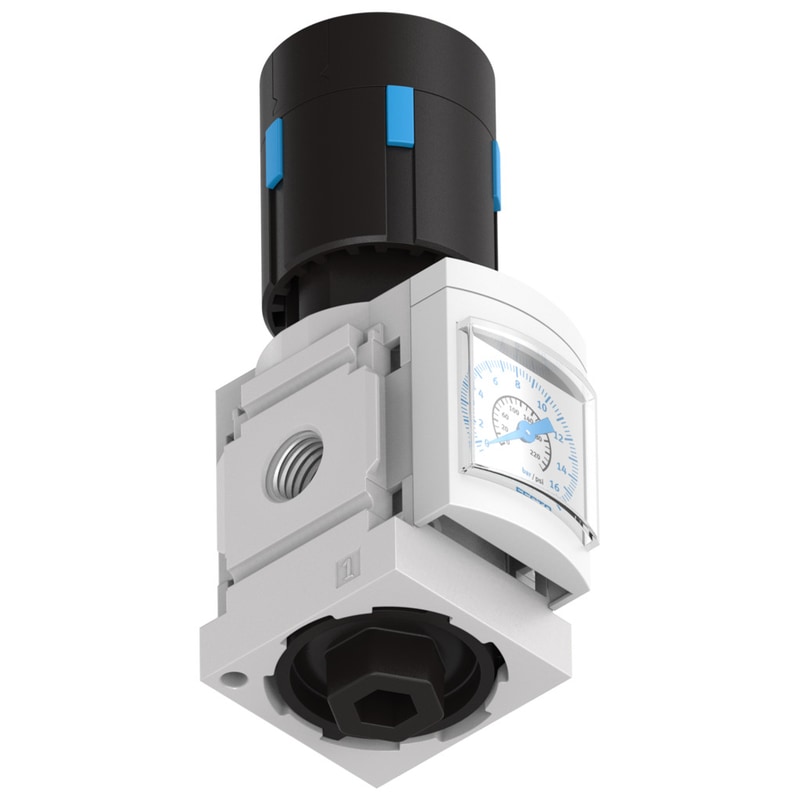

pressure regulator MS4-LR-1/4-D7-AS 12 bar maximum output pressure, with pressure gauge, lockable regulator head, direction of flow: from left to right. Size=4, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Any, Design structure=directly-controlled diaphragm regulator
| product type | Pressure Regulator |
|---|---|
| Port Size | 1/4″ Port Connection |
| pressure range | 0.5-12bar (7.25-174PSI) |
| options | Lockable |
| Weight | 0.638018 lbs |
|---|---|
| Dimensions | 7.480315 × 3.937008 × 3.149606 in |
| Size | 4 |
| Series | MS |
| Actuator lock | Rotary knob with detent, can be closed with accessories |
| Mounting position | Any |
| Structural design | Directly controlled diaphragm regulator |
| Controller function | Outlet pressure constant, With secondary exhausting, With return flow function |

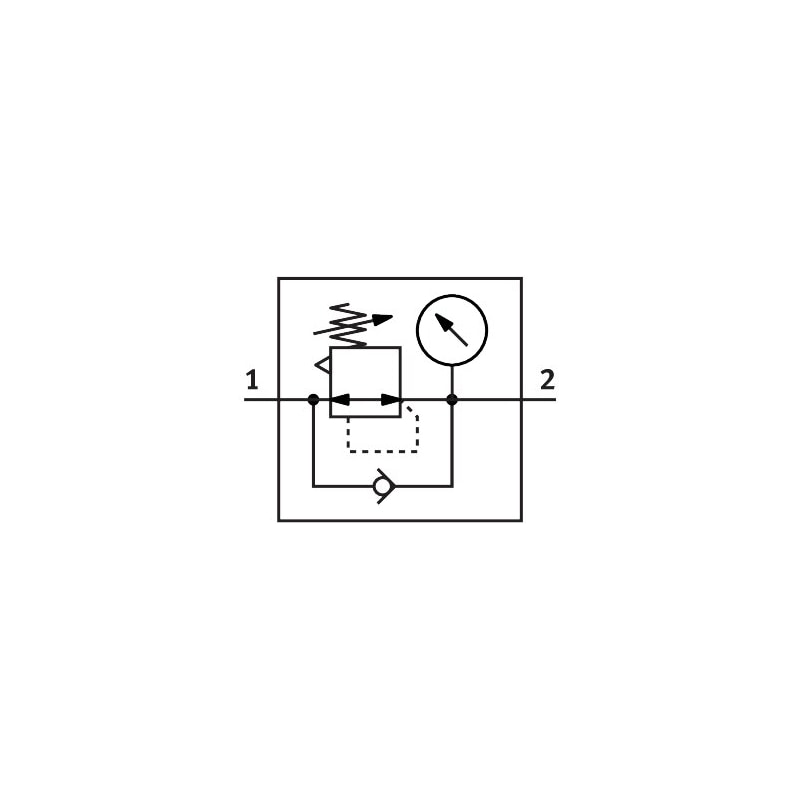

| Symbol | 00991558 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 0.8 bar … 14 bar |
| Pressure regulation range | 0.5 bar … 12 bar |
| Max. pressure hysteresis | 3.625 psi |
| Normal nominal flow rate (normalized to DIN 1343) | 1700 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 °C … 60 °C |
| For use in the food industry | See supplementary material information |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 225 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Note on materials | RoHS-compliant |
| Material of sub-base | Die-cast aluminum |
| Material of operator panel | PA, POM |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
| Diaphragm material | NBR |
