MS4-LFR-1/4-D6-ERV-AS-Z

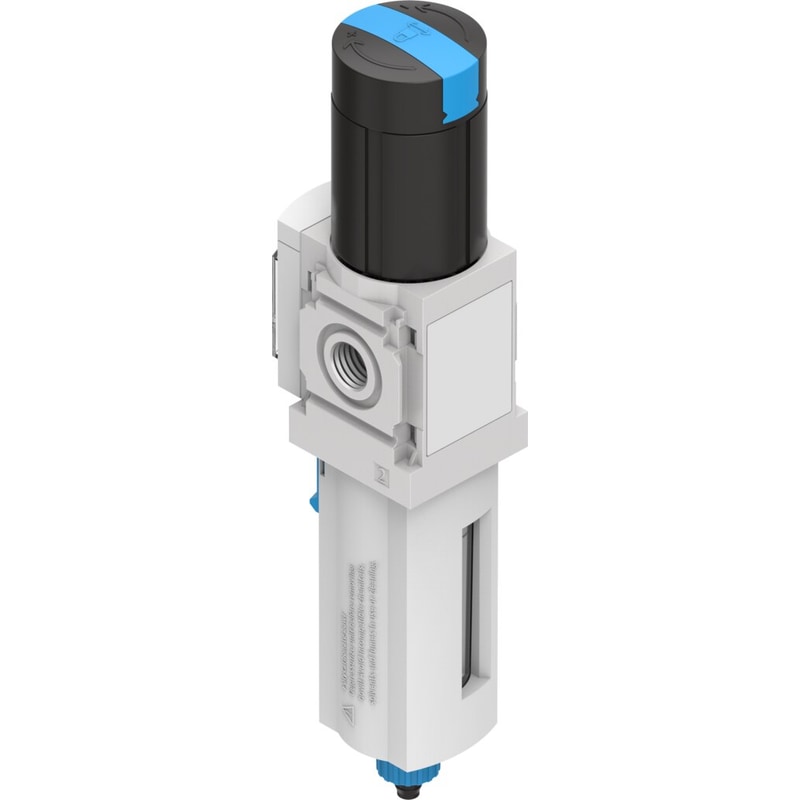

MS4-LFR-1/4-D6-ERV-AS-Z - Image 2

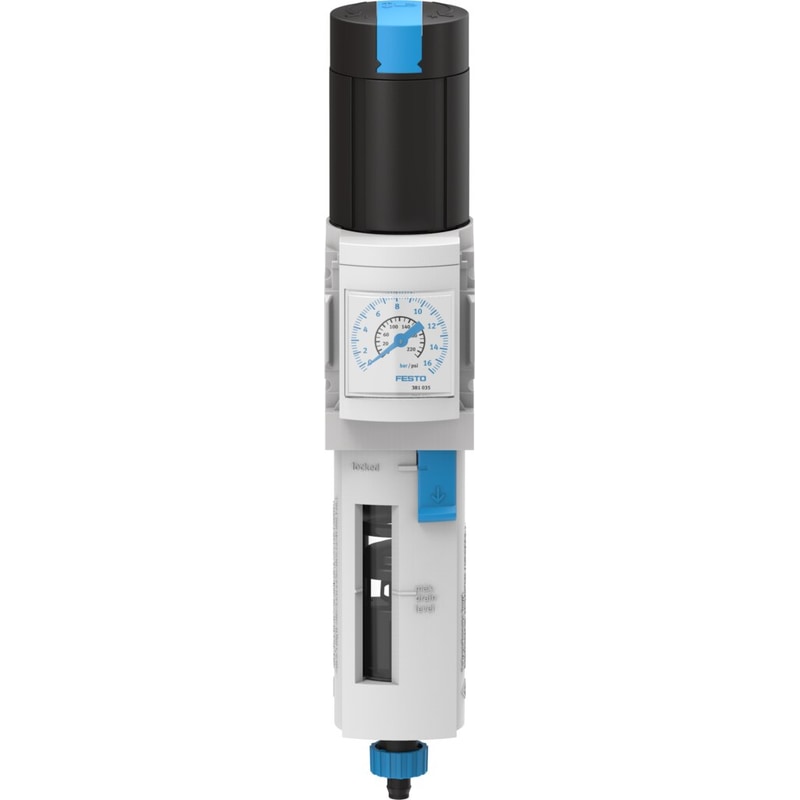

MS4-LFR-1/4-D6-ERV-AS-Z - Image 3

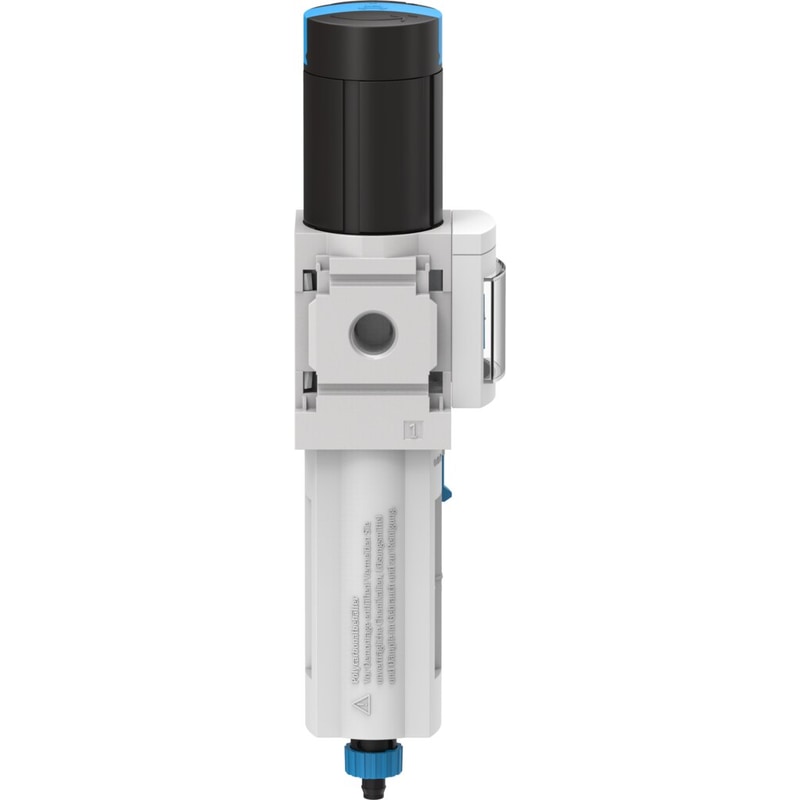

MS4-LFR-1/4-D6-ERV-AS-Z - Image 4

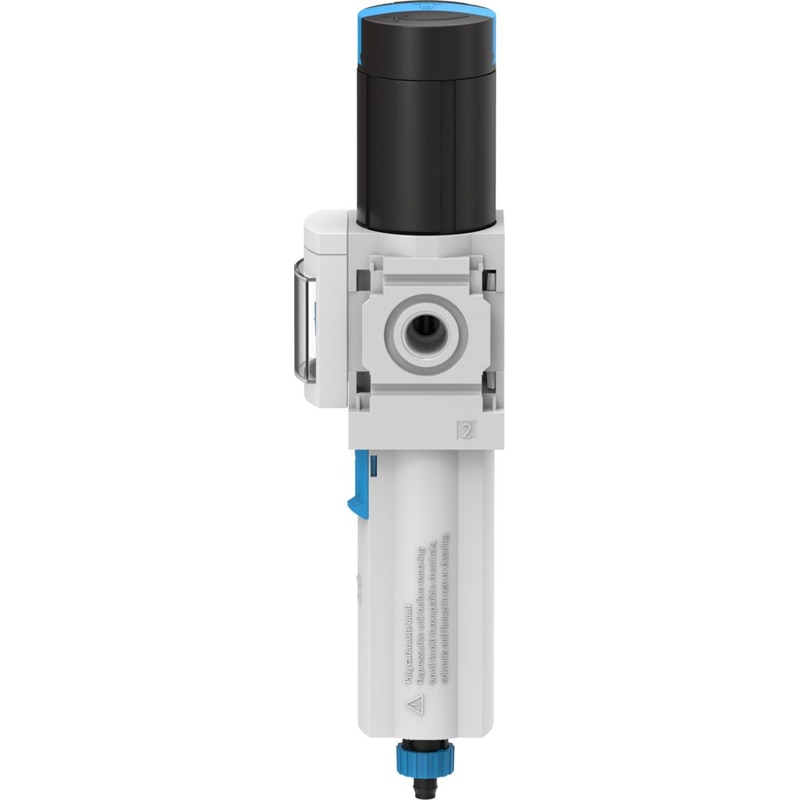

MS4-LFR-1/4-D6-ERV-AS-Z - Image 5

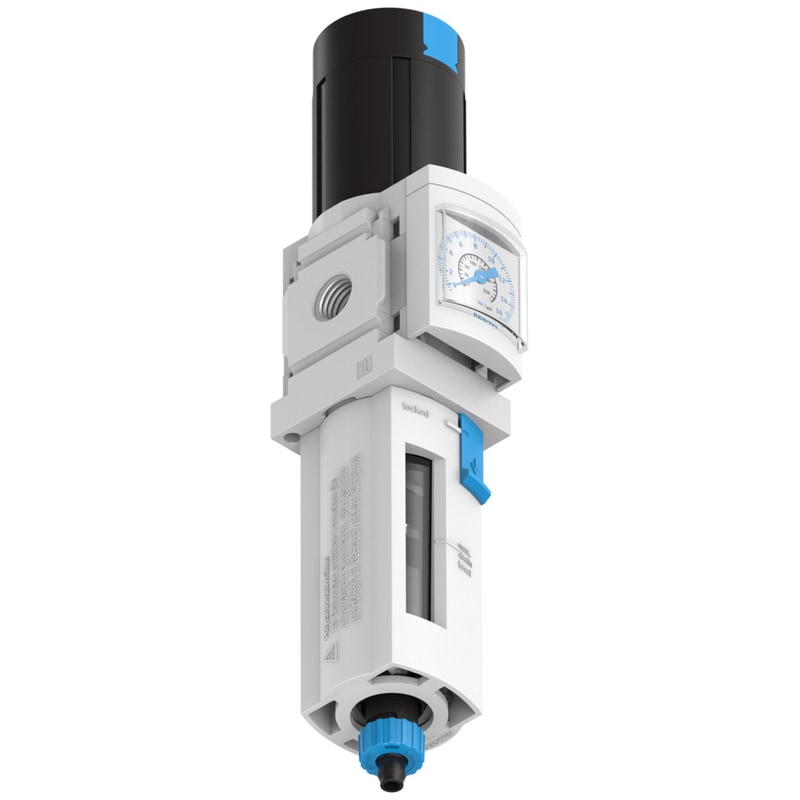

MS4-LFR-1/4-D6-ERV-AS-Z - Image 6
MS4-LFR-1/4-D6-ERV-AS-Z - Image 7

MS4-LFR-1/4-D6-ERV-AS-Z

$105.11

SKU: 529151
UNSPSC: 27131603
GTIN: 4052568163518

Warehouse 1*: 0 in stock

Warehouse 2: Call for Availability

- +
SKU: 529151 Category: Tag:
MS-LFR_ENUS.PDF
Brand:

filter regulator MS4-LFR-1/4-D6-ERV-AS-Z Maximum output pressure 7 bar, 40 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from right to left. Size=4, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=40 µm

product type Filter Regulator
Port Size 1/4″ Port Connection
pressure range 0.3-7bar (4.3-101PSI)
filtation 40µm
Bowl Type Plastic Bowl
Drain Type Fully Automatic
option Lockable
Weight 0.917123 lbs
Dimensions 11.023622 × 3.622047 × 4.724409 in
Size

4
Series

MS
Actuator lock

Rotary knob with detent, can be closed with accessories
Mounting position

Vertical +/- 5°
Grade of filtration

40 µm
Condensate drain

Fully automatic, Manual, non-detenting
Structural design

Filter regulator with pressure gauge
Max. condensate volume

19 ml
Controller function

Outlet pressure constant, With secondary exhausting, With return flow function
Bowl guard

Plastic bowl guard
Degree of condensate separation

>75 %

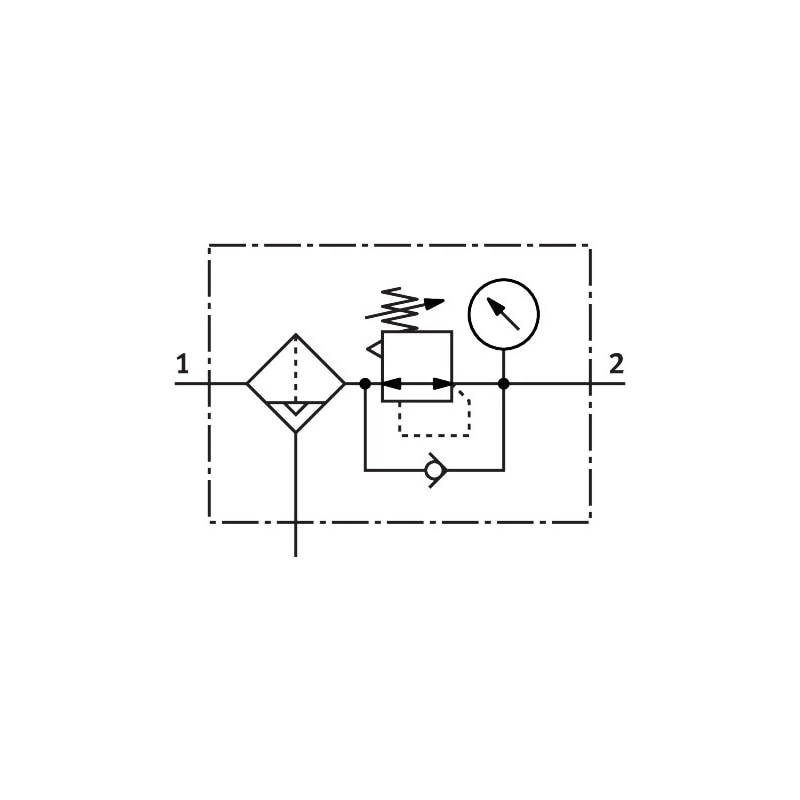

Symbol

00991587
Pressure gauge

with pressure gauge
Operating pressure

2 bar … 12 bar
Pressure regulation range

0.3 bar … 7 bar
Max. pressure hysteresis

0.25 bar
Normal nominal flow rate (normalized to DIN 1343)

1700 l/min
Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:-], Inert gas
Corrosion resistance class (CRC)

2 – Moderate corrosion stress
LABS (PWIS) conformity

VDMA24364-B1/B2-L
Storage temperature

-10 °C … 60 °C
For use in the food industry

See supplementary material information
Air quality class at the output

Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium

-10 °C … 60 °C
Ambient temperature

-10 °C … 60 °C
Pore size

<40 µm
Product weight

275 g
Type of mounting

With accessories
Pneumatic connection 1

G1/4
Pneumatic connection 2

G¼
Note on materials

RoHS-compliant
Material of sub-base

Die-cast aluminum
Material of operator panel

PA, POM
Seals material

NBR
Compressed air filter material

PE
Housing material

Die-cast aluminum
Diaphragm material

NBR
Material of bowl

PC
Separating disc material

POM
