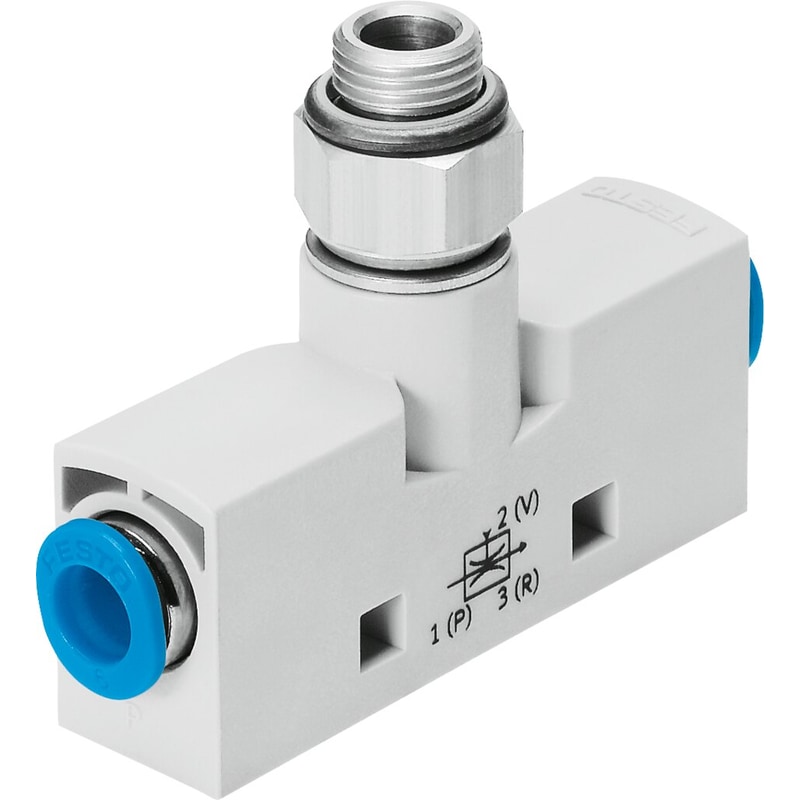

vacuum generator VN-10-H-T4-PQ2-VA5-RQ3 Standard, high vacuum, width 18 mm, T shape with push-in connector. Vacuum connection with male thread. Nominal size, Laval nozzle=0,95 mm, Grid dimension=18 mm, Assembly position=Any, Ejector characteristic=(* High vacuum, * Standard), Design structure=T-shaped
| Nominal size, Laval nozzle | 0.95 mm |
|---|---|
| Grid dimension | 18 mm |
| Assembly position | Any |
| Ejector characteristic | High vacuumStandard |
| Design structure | T-shaped |
| Operating pressure for max. suction rate | 3.1 bar |
| Operating pressure | 1 … 8 bar |
| Operating pressure for max. vacuum | 4.5 bar |
| Max. vacuum | 0.89 |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 25 l/min |
| Air supply time at nominal operating pressure | 1.1 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
