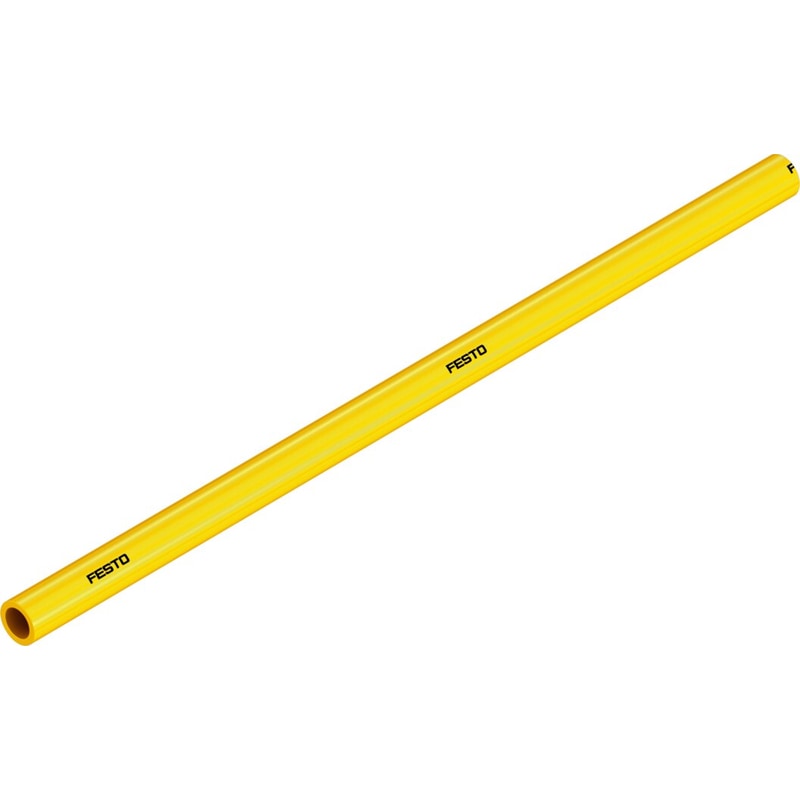

PUN-V0-10X1,5-GE Plastic tubing (Pack of 50)

$563.00

SKU: 525460 Category: Tags: , Brand:
Pneumatic tubing test conditionsSuitability for energy chains: >5 million cycles as per FN 942021
Tubing characteristicsSuitable for energy chains in applications with high cycle rates
Outside diameter10 mm
Bending radius relevant for flow rate54 mm
Inside diameter7 mm
Min. bending radius20 mm
Type codePUN-V0
Temperature-dependent operating pressure-0.95 bar … 10 bar
Operating mediumWater as per manufacturer’s declaration at www.festo.comCompressed air as per ISO 8573-1:2010 [7:-:-]
Material fire testUL94 V-2 (0.75mm)UL94 V-0 (3mm)
Ambient temperature-35 °C … 60 °C
CertificationGerman Technical Control Board (TÃœV)
Product weight by length0.051 kg/m
Pneumatic connectionFor plug connection outside diameter 10 mm
ColorYellow
Information on colorDeviates from the standard color due to flame protection
Shore hardnessD 54 +/-3
Note on materialsFree of copper and PTFERoHS-compliant
Material of pneumatic tubingTPE-U(PU)
