Pneumatic tubing test conditions | Suitability for energy chains: >5 million cycles as per FN 942021 |
---|---|
Tubing characteristics | Suitable for energy chains in applications with high cycle rates |
Outside diameter | 10 mm |
Bending radius relevant for flow rate | 54 mm |
Inside diameter | 7 mm |
Min. bending radius | 20 mm |
Type code | PUN-V0 |
Temperature-dependent operating pressure | -0.95 bar … 10 bar |
Operating medium | Water as per manufacturer’s declaration at www.festo.comCompressed air as per ISO 8573-1:2010 [7:-:-] |
Material fire test | UL94 V-2 (0.75mm)UL94 V-0 (3mm) |
Ambient temperature | -35 °C … 60 °C |
Certification | German Technical Control Board (TÃœV) |
Product weight by length | 0.051 kg/m |
Pneumatic connection | For plug connection outside diameter 10 mm |
Color | Green |
Information on color | Deviates from the standard color due to flame protection |
Shore hardness | D 54 +/-3 |
Note on materials | Free of copper and PTFERoHS-compliant |
Material of pneumatic tubing | TPE-U(PU) |

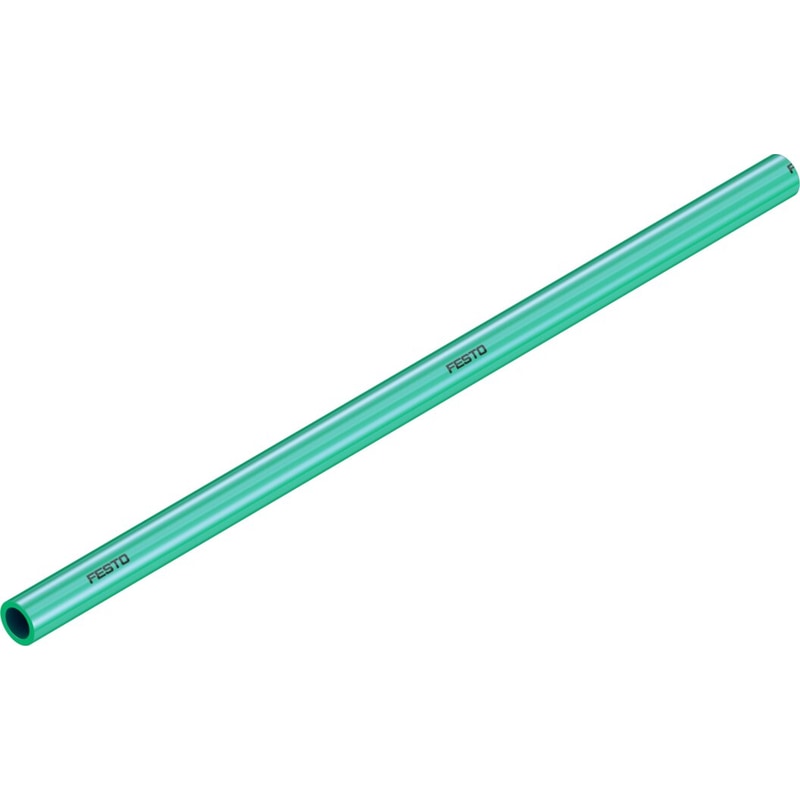

PUN-V0-10X1,5-GN Plastic tubing (Pack of 50)
$563.00
