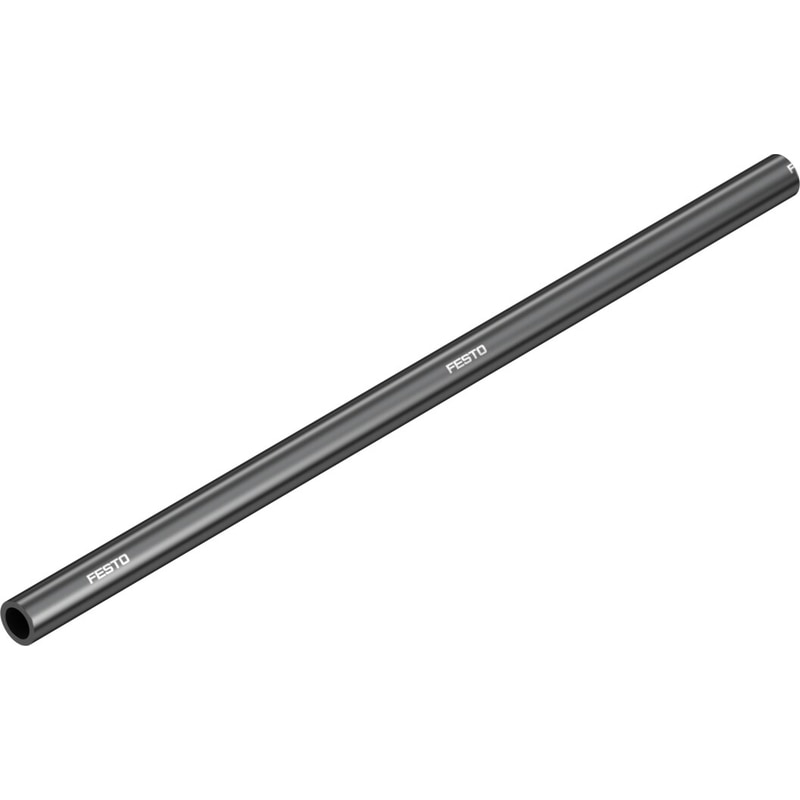

PUN-V0-10X1,5-SW Plastic tubing (Pack of 50)

$485.00

SKU: 525440 Category: Tags: ,
Festo
Pneumatic tubing test conditions Suitability for energy chains: >5 million cycles as per FN 942021
Tubing characteristics Suitable for energy chains in applications with high cycle rates
Outside diameter 10 mm
Bending radius relevant for flow rate 54 mm
Inside diameter 7 mm
Min. bending radius 20 mm
Type code PUN-V0
Temperature-dependent operating pressure -0.95 bar … 10 bar
Operating medium Water as per manufacturer’s declaration at www.festo.comCompressed air as per ISO 8573-1:2010 [7:-:-]
Material fire test UL94 V-2 (0.75mm)UL94 V-0 (3mm)
Ambient temperature -35 °C … 60 °C
Certification German Technical Control Board (TÃœV)
Product weight by length 0.051 kg/m
Pneumatic connection For plug connection outside diameter 10 mm
Color Black
Information on color Deviates from the standard color due to flame protection
Shore hardness D 54 +/-3
Note on materials Free of copper and PTFERoHS-compliant
Material of pneumatic tubing TPE-U(PU)
