| Stroke | 25 mm |
|---|---|
| Piston diameter | 12 mm |
| Piston rod thread | M6 |

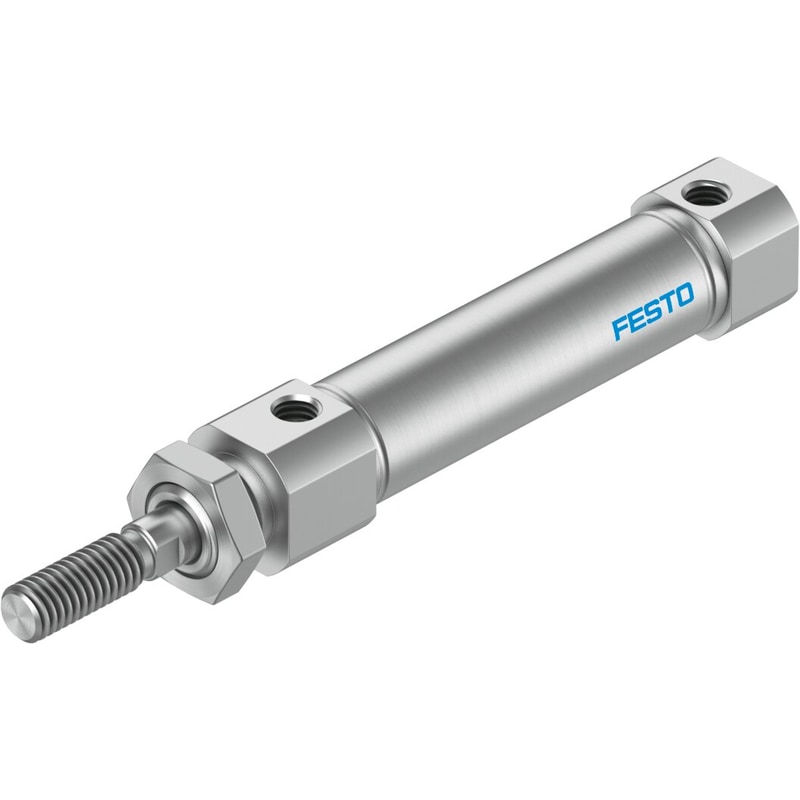

| Type code | DSNU-S |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Design | PistonPiston rodCylinder barrel |
| Position sensing | For proximity sensor |
| Symbol | 00991217 |
| Operating pressure | 1 bar … 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | -20 °C … 80 °C |
| Theoretical force at 6 bar, retracting | 50.9 N |
| Theoretical force at 6 bar, advancing | 67.9 N |
| Moving mass at 0 mm stroke | 18.5 g |
| Additional weight per 10 mm stroke | 4 g |
| Basic weight with 0 mm stroke | 75 g |
| Additional moving mass per 10 mm stroke | 2 g |
| Type of mounting | With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Seals material | TPE-U(PU) |
| Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel |
| Weight | 0.103397 lbs |
|---|---|
| Dimensions | 5.11811 × 1.181102 × 0.787402 in |
| Mode of operation | double-acting |
| Piston diameter | 12 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 67.9 N |
| Stroke | 25 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
