Name: ADN-S-6-5-I-A
Brand: Festo
SKU: 5173732
Availability: InStock

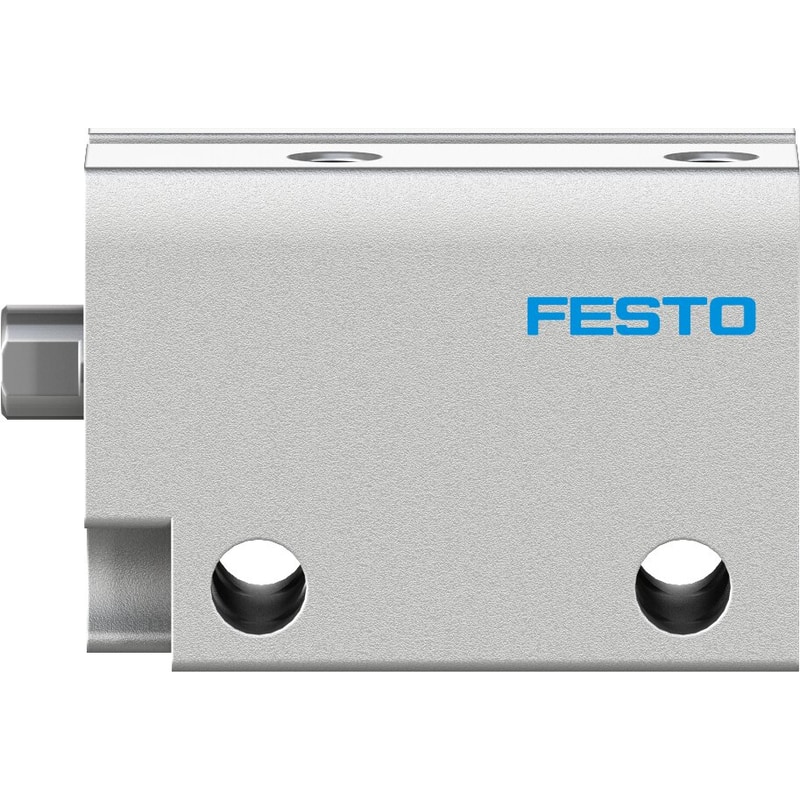

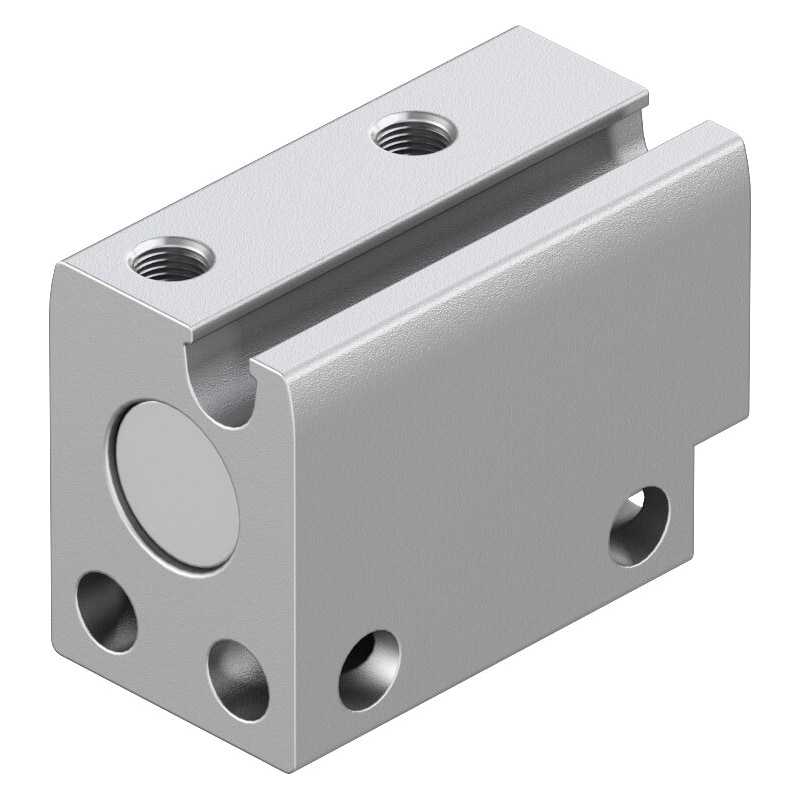

compact cylinder
ADN-S-6-5-I-A
Part number: 5173732

New

Stroke	5 mm
Piston diameter	6 mm
Cushioning	No cushioning
Assembly position	Any
Mode of operation	double-acting
Piston-rod end	Female thread
Design structure	PistonPiston rod
Position detection	For proximity sensor
Variants	Single-ended piston rod
Operating pressure	1.5 … 8 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	1 – Low corrosion stress

Weight	0.029983 lbs
Dimensions	3.346457 × 1.574803 × 0.590551 in
Mode of operation	double-acting
Piston diameter	6 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	17 N
Stroke	5 mm
Cushioning	No cushioning
