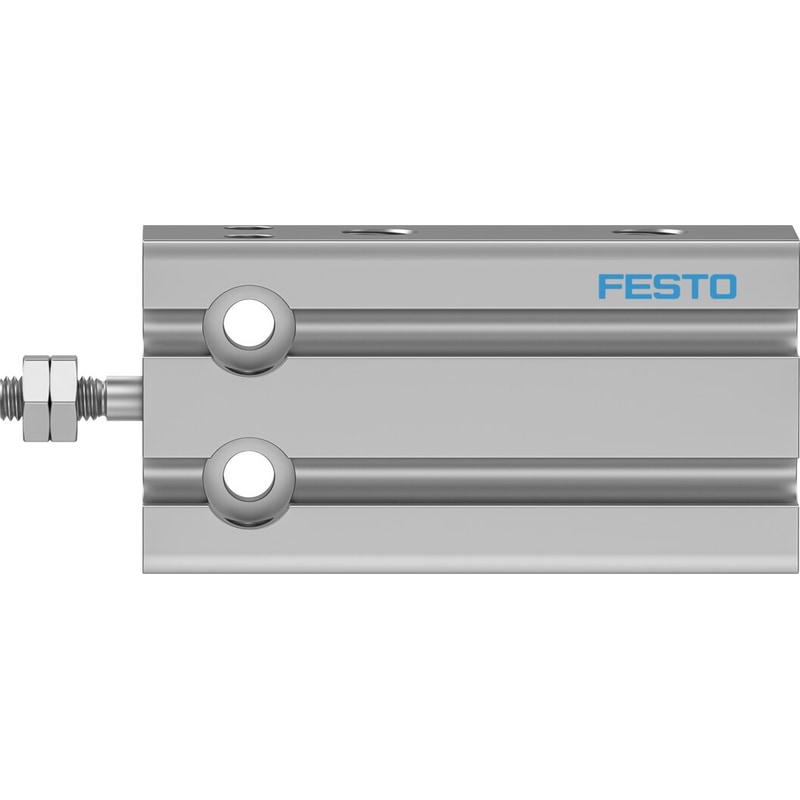

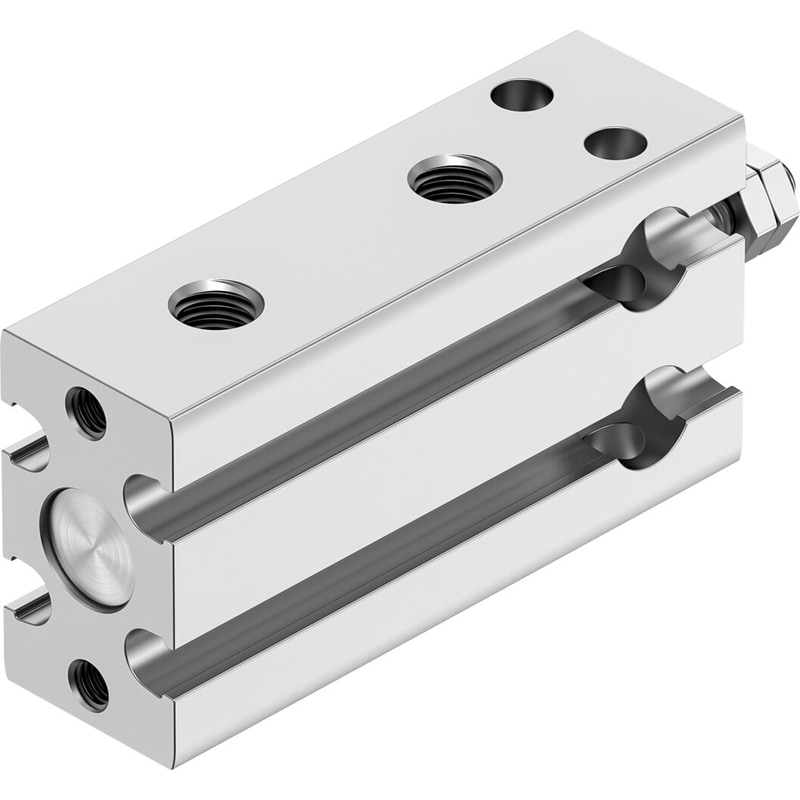

DPDM-6-10-PA

$65.02

SKU: 4830901 Category: Tag:
Festo

compact cylinder
DPDM-6-10-PA
Part number: 4830901

Stroke  10 mm
Piston diameter  6 mm
Cushioning  P: Flexible cushioning rings/plates at both ends
Assembly position  Any
Mode of operation  double-acting
Design structure  PistonPiston rodProfile barrel
Position detection  For proximity sensor
Variants  Single-ended piston rod
Operating pressure  1.8 … 8 bar
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium  Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC  1 – Low corrosion stress
Ambient temperature  ‘-10 … 80 °C
Stroke

10 mm

Piston diameter

6 mm

Cushioning

P: Flexible cushioning rings/plates at both ends

Assembly position

Any

Mode of operation

double-acting

Design structure

PistonPiston rodProfile barrel

Position detection

For proximity sensor

Variants

Single-ended piston rod

Operating pressure

1.8 … 8 bar

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (subsequently required for further operation)

Corrosion resistance classification CRC

1 – Low corrosion stress

Ambient temperature

-10 … 80 °C
