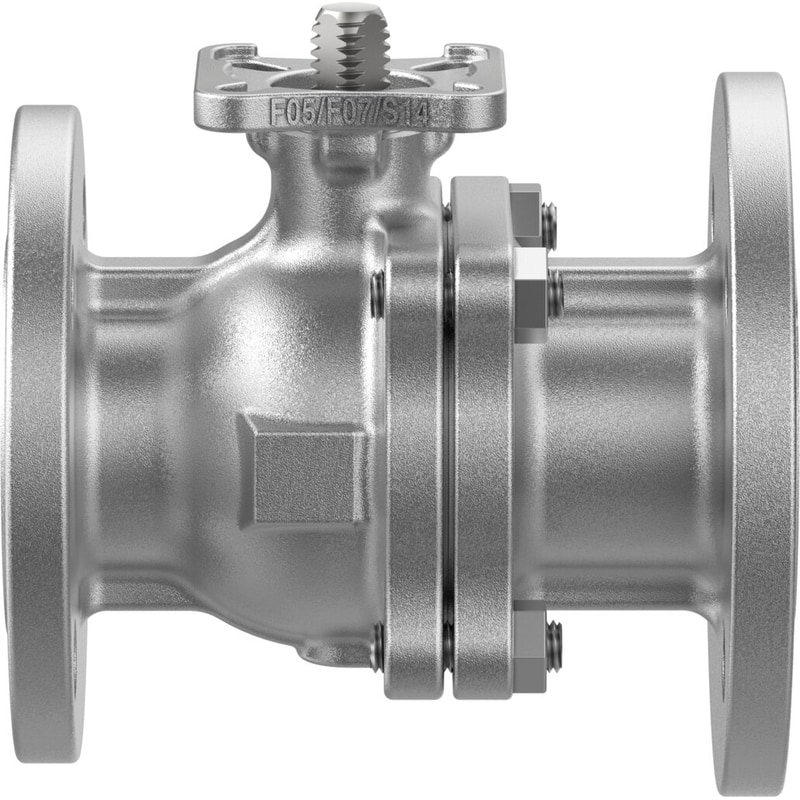

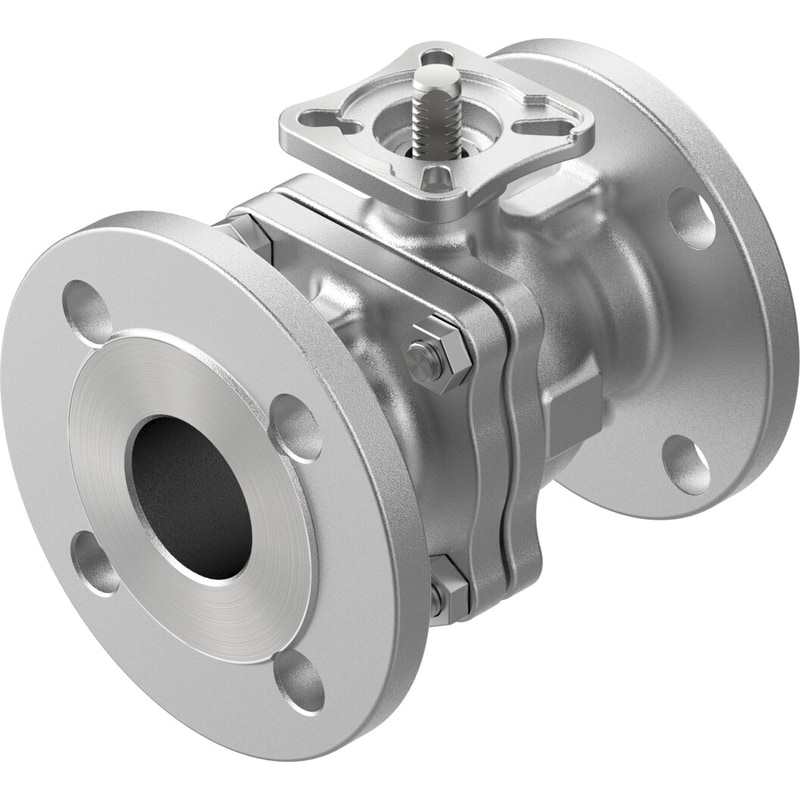

VZBF-2-P1-20-D-2-F0507-V15V15

$553.62

SKU: 4810856
UNSPSC: 40141607
GTIN: 4052568275624

SKU: 4810856 Category: Tag: Brand:

The 2-way stainless-steel ball valve is the ideal partner for the pharmaceutical and cosmetics industry. Its sealing is compliant with FDA standards, and it has electropolished surfaces, long welded ends, or clamping sleeves.

Type codeVZBD
Seat seal materialPTFE, modified
Design2-way ball valve
Actuation typeMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingLine installation
Fitting connectionClamp as per DIN 32676 series A
Switching position indicationSlot direction = flow direction
Flange hole patternF0507
Inside diameter44.3 mm
Nominal width DN40
Valve function2/2
Flow directionReversible
Nominal pressure of fitting PN16
Breakaway torque at differential pressure, nominal pressure, fitting PN30 Nm
Based on normISO 5211DIN 32676
Symbol00991458
MediumVaporCompressed air as per ISO 8573-1:2010 [-:-:-]Neutral liquidsWaterInert gas
Temperature of medium-20 °C … 200 °C
Flow rate Kv83.3 m³/h
Note on materialsRoHS-compliantContains paint-wetting impairment substances
Housing materialCast stainless steel
Material number of housing1.4409
Seals materialFPMPTFE
Ball materialCast stainless steel
Material number for ball1.4409
Shaft materialHigh-alloy stainless steel
Material number for shaft1.4401
Product weight3370 g
CertificationCRN
CE marking (see declaration of conformity)as per EU pressure equipment directive
Corrosion resistance class (CRC)4 – Particularly high corrosion stress
