| Motor type | Stepper motor |
|---|---|
| Electrical connection 1, connection type | Plug |
| Gripper function | Parallel |
| Electrical connection 1, connection technology | Connection diagram F1 |
| Information on nominal motor current | 0.5 A for gripper actuator |
| KC characters | KC EMC |
| Certification | RCM compliance mark |
| Homing | Rotation: encoder indexGripping: fixed stop block |
| Max. output torque | 0.3 Nm |
| Number of gripper jaws | 2 |
| Maximum torque on gripper jaw, Mx static | 0.7 Nm |
| Maximum torque on gripper jaw, My static | 1.5 Nm |
| Maximum torque on gripper jaw, Mz static | 0.7 Nm |
| Stroke per gripper jaw | 5 mm |
| Controllable stroke range per gripper jaw | 0 mm … 5 mm |
| Gripping force per gripper jaw | 7 N … 35 N |
| Size | 40 |
| Rotation angle | Infinite |
| Type code | EHMD |
| Mounting position | Any |
| Design | Electric rotary actuatorElectric gripper |
| Position sensing | Rotation: motor encoderGripping: motor encoder |
| Rotor position sensor | Incremental encoder |
| Rotor position sensor measuring principle | Optical |
| Max. output speed | 240 1/min |
| Duty cycle | 1 |
| Insulation protection class | B |
| Motor nominal current | 0.9 A |
| DC nominal voltage | 24 V |
| CE marking (see declaration of conformity) | As per EU RoHS directiveAs per EU EMC directive |
| Storage temperature | -20 °C … 70 °C |
| Relative air humidity | 0 – 85 % |
| Degree of protection | IP20 |
| Ambient temperature | 0 °C … 40 °C |
| Product weight | 681 g |
| Type of mounting | With dovetail slot |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Cover material | PA-reinforced |
| Housing material | Wrought aluminum alloy, anodized |

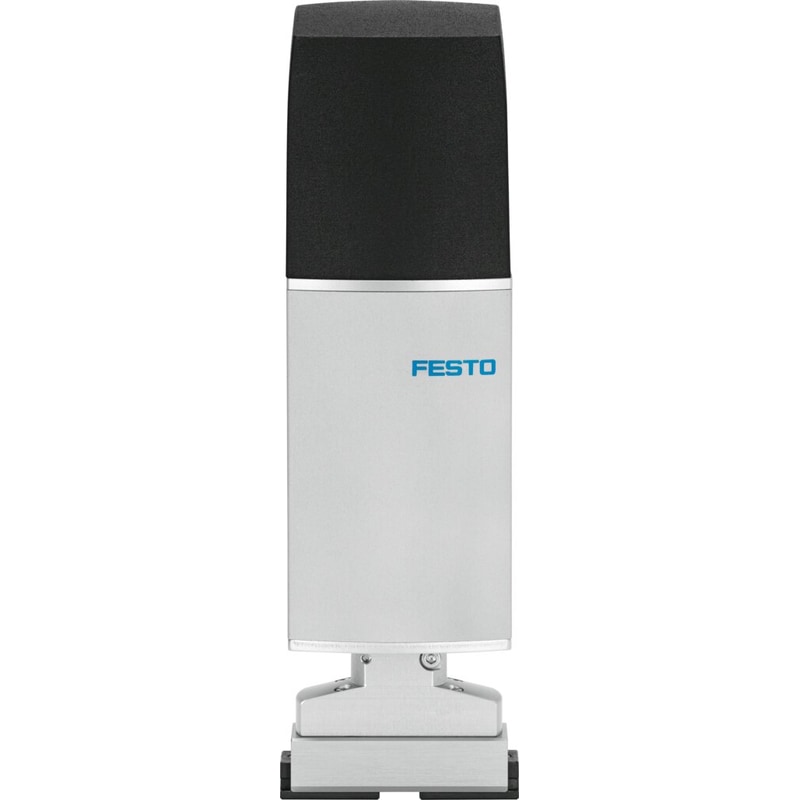

EHMD
EHMD-40-RE-GE
$3,829.08
The rotary gripper module EHMD is ideal for gripping and turning/aligning small objects in laboratory automation and the electronics industry. For example, various kinds of sample vials with up to 15 ml volume can be opened without difficulty.
| Weight | 1.7676 lbs |
|---|---|
| Dimensions | 8.661417 × 4.330709 × 2.952756 in |
