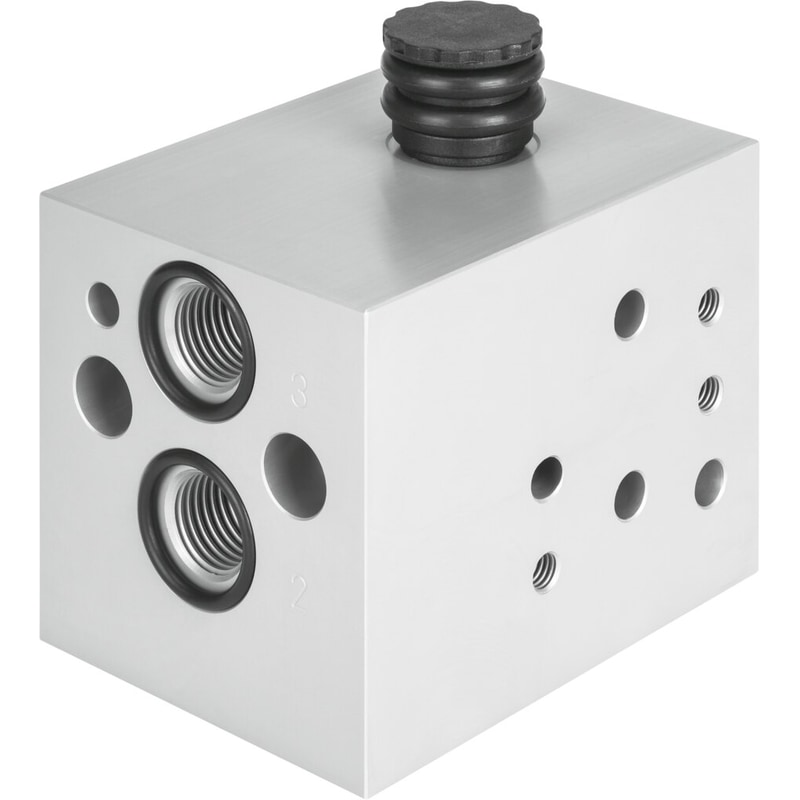

sub-base VABS-S7-RB-B-N14-V14-A Assembly position=Any, Pilot air supply=(* external, * Internal), Operating pressure=0 – 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [-:-:-], Corrosion resistance classification CRC=4 – Very high corrosion stress
| Assembly position | Any |
|---|---|
| Pilot air supply | externalInternal |
| Operating pressure | 0 … 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Corrosion resistance classification CRCÂ | 4 – Very high corrosion stress |
| Protection class | IP65 |
| Mounting type | with through hole |
| Pilot air port 12Â | NPT1/4-18 |
| Pneumatic connection, port 1Â | NPT1/4-18 |
| Pneumatic connection, port 2Â | Flange 1/4NAMUR port pattern |
| Pneumatic connection, port 3Â | NPT1/4-18 |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material of connecting plate | Aluminium (Ematal coated) |
