one-way flow control valve GRF-PK-3X2 With sub-base 2n and barbed fitting for tubing ND 3. Valve function=One-way flow control function, Pneumatic connection, port 1=PK-3, Pneumatic connection, port 2=PK-3, Adjusting element=Knurled screw, Mounting type=with through hole

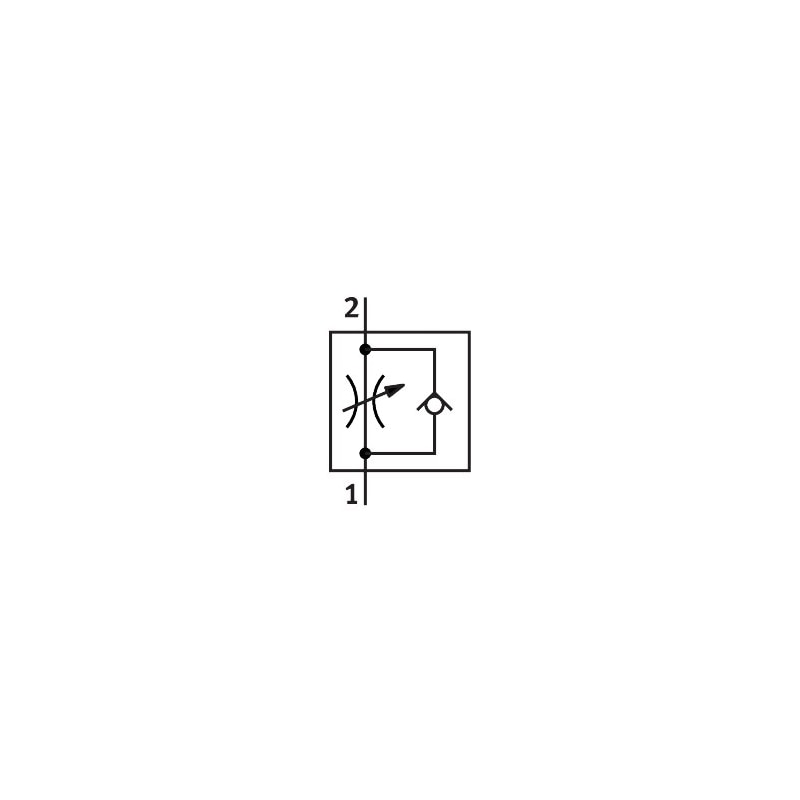

| Valve function | One-way flow control function |
|---|---|
| Pneumatic connection, port 1Â | PK-3 |
| Pneumatic connection, port 2Â | PK-3 |
| Adjusting element | Knurled screw |
| Mounting type | with through hole |
| Standard nominal flow rate in flow control direction | 45 l/min |
| Standard nominal flow rate in non-return direction | 45 l/min |
| Operating pressure | 0.5 … 8 bar |
| Ambient temperature | ‘-10 … 60 °C |
| Material housing | Wrought Aluminium alloy |
| Assembly position | Any |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
