| Valve function | 5/2, monostable |
|---|---|
| Lap | Overlap |
| Cover material | PA-reinforced |
| Max. force on actuator | 200 N |
| Max. transverse load on actuator | 200 N |
| Actuation type | Manual |
| Width | 20 mm |
| Standard nominal flow rate | 750 l/min |
| Pneumatic working port | NPT1/8-27 |
| Operating pressure | -0.95 bar … 10 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Nominal width | 5.2 mm |
| Type code | VHEF |
| Exhaust air function | With flow control option |
| Application note | Operate by hand only |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of control | Direct |
| Flow direction | Reversible |

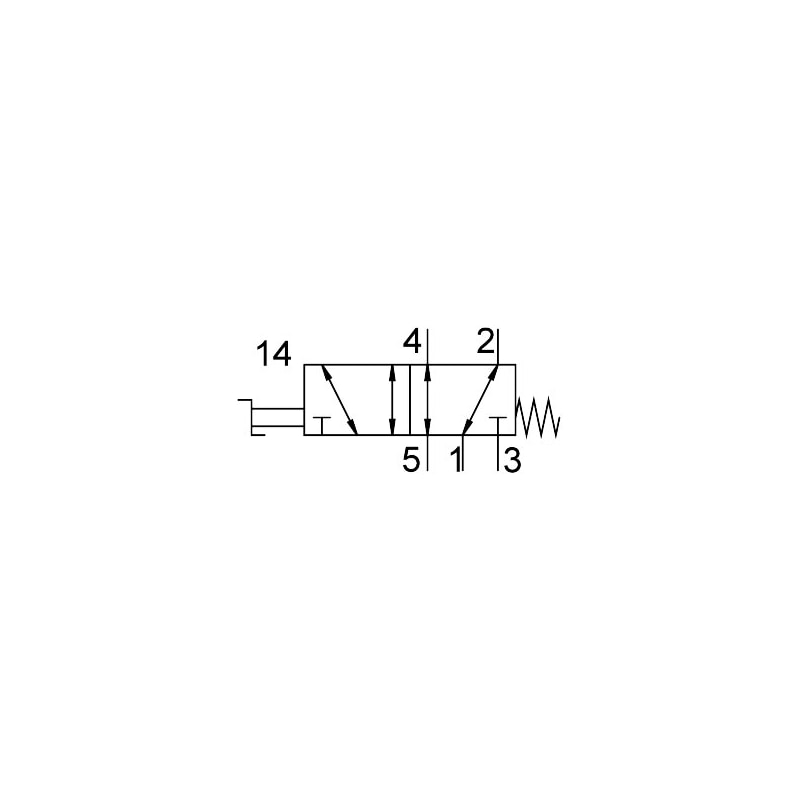

| Symbol | 995882 |
| Max. switching frequency | 0.5 Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Actuating torque | 0.6 Nm |
| Product weight | 265 g |
| Type of mounting | With through-holeOptionally:Front panel mounting |
| Pneumatic connection 1 | NPT1/8-27 |
| Pneumatic connection 2 | NPT1/8-27 |
| Pneumatic connection 3 | NPT1/8-27 |
| Pneumatic connection 4 | NPT1/8-27 |
| Pneumatic connection 5 | NPT1/8-27 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | Wrought aluminum alloyAnodized |
| Lever material | PA-reinforced |
VHEF
VHEF-HS-M52-M-N18
$276.18

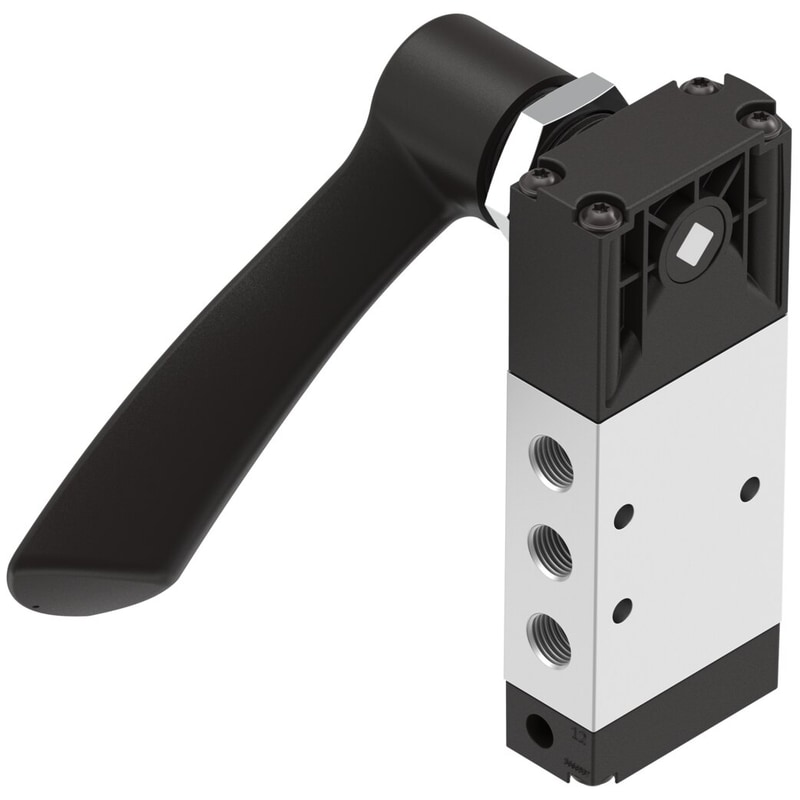

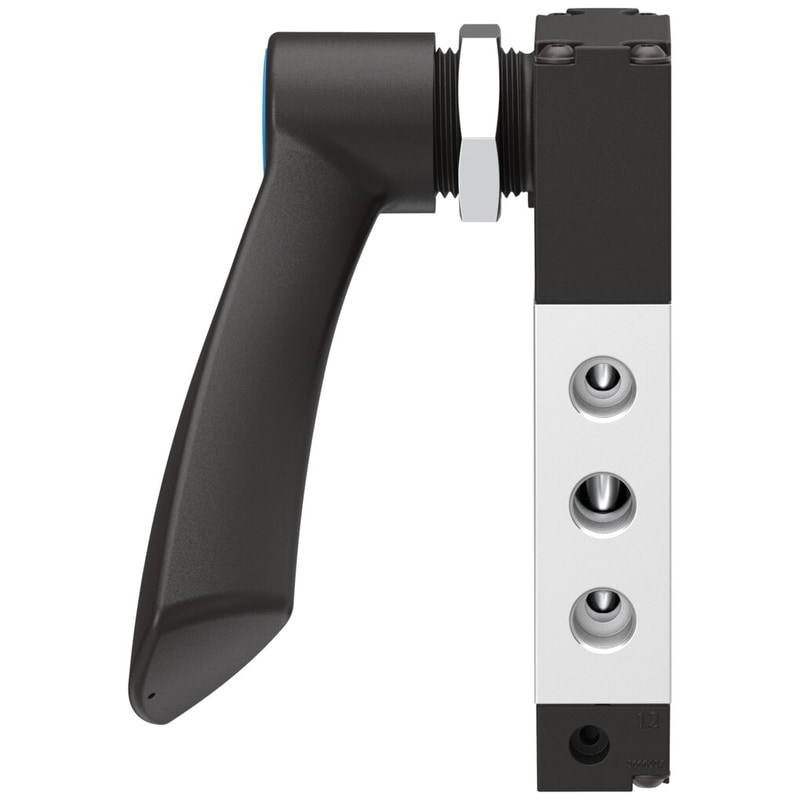

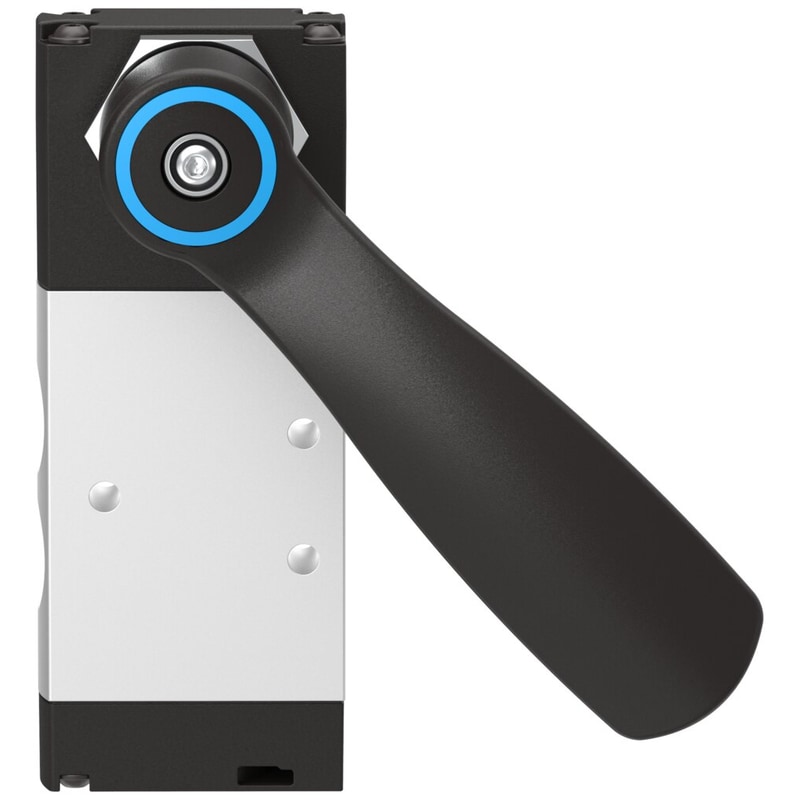

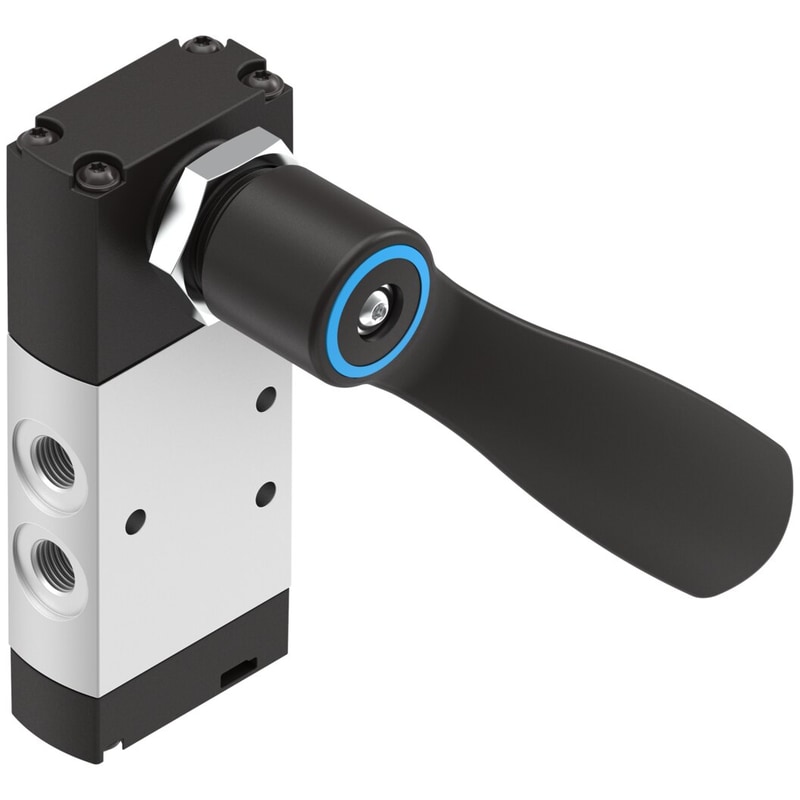

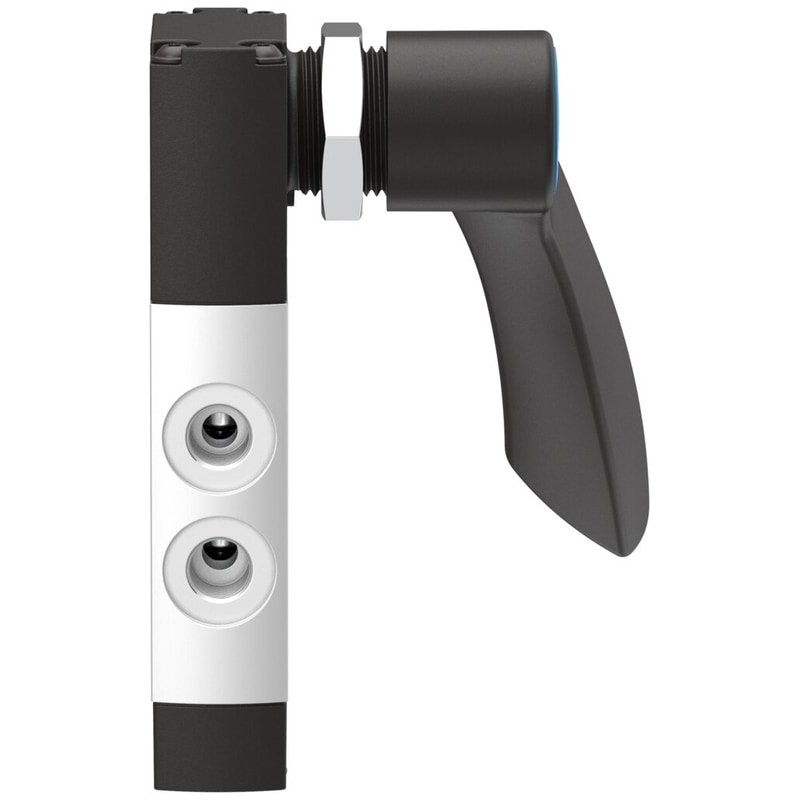

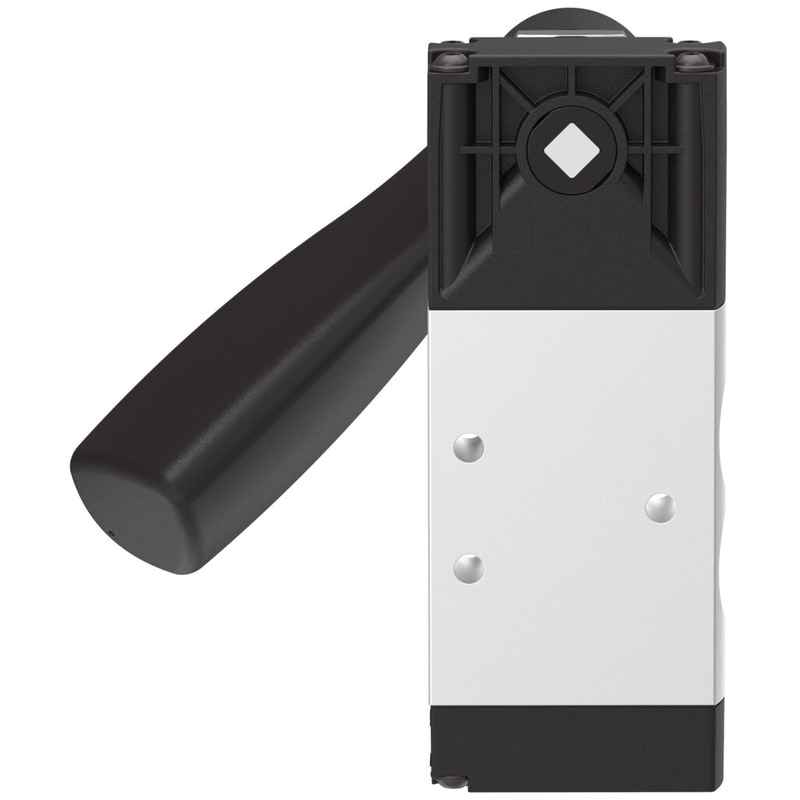

Directly controlled, manually actuated valve. Available as a hand lever, selector switch, or finger lever.
| Weight | 0.609799 lbs |
|---|---|
| Dimensions | 6.889764 × 5.511811 × 3.149606 in |
