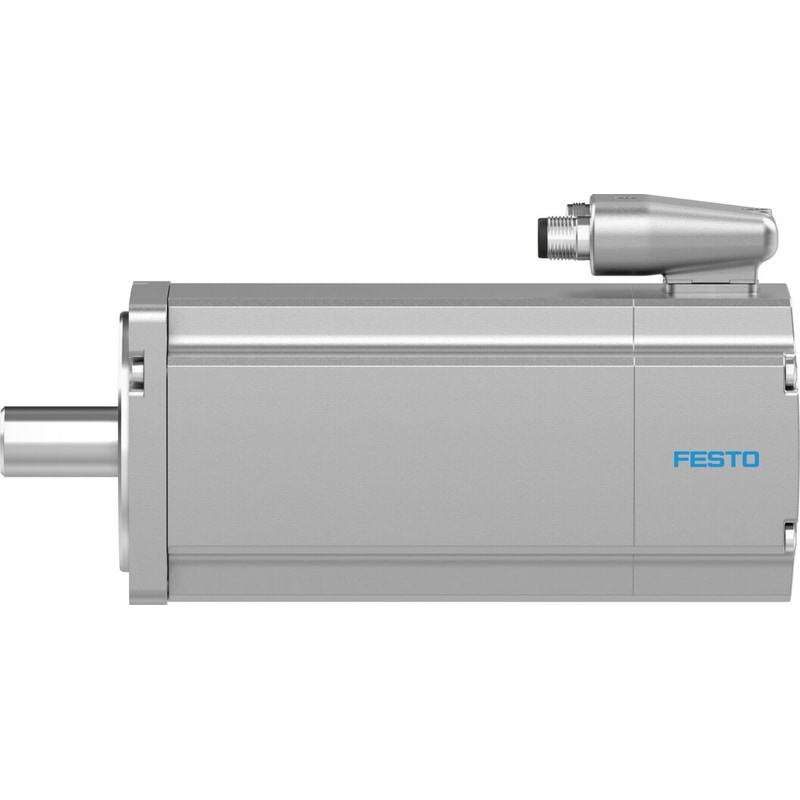

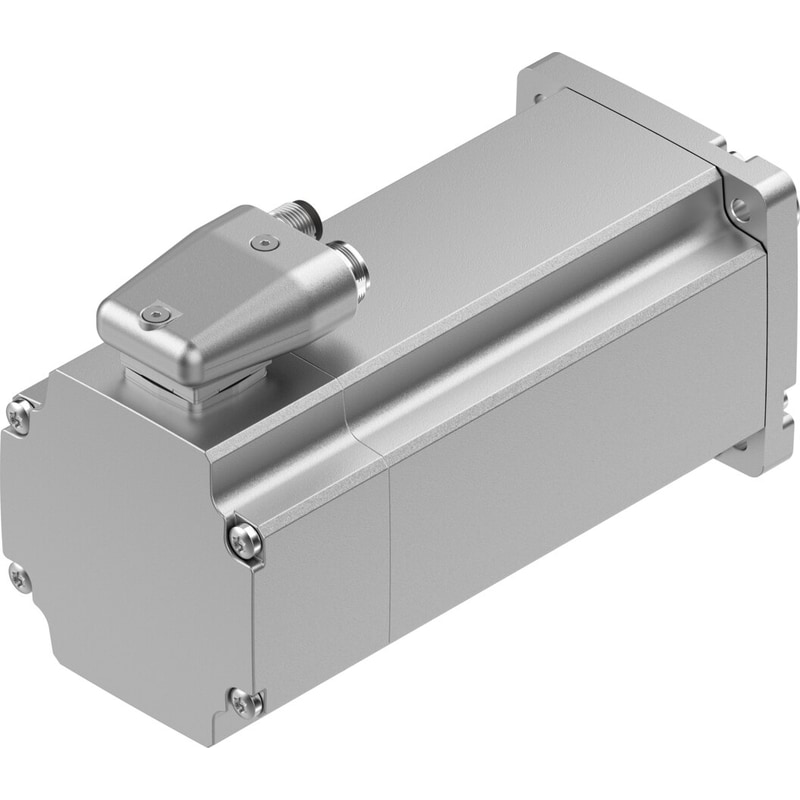

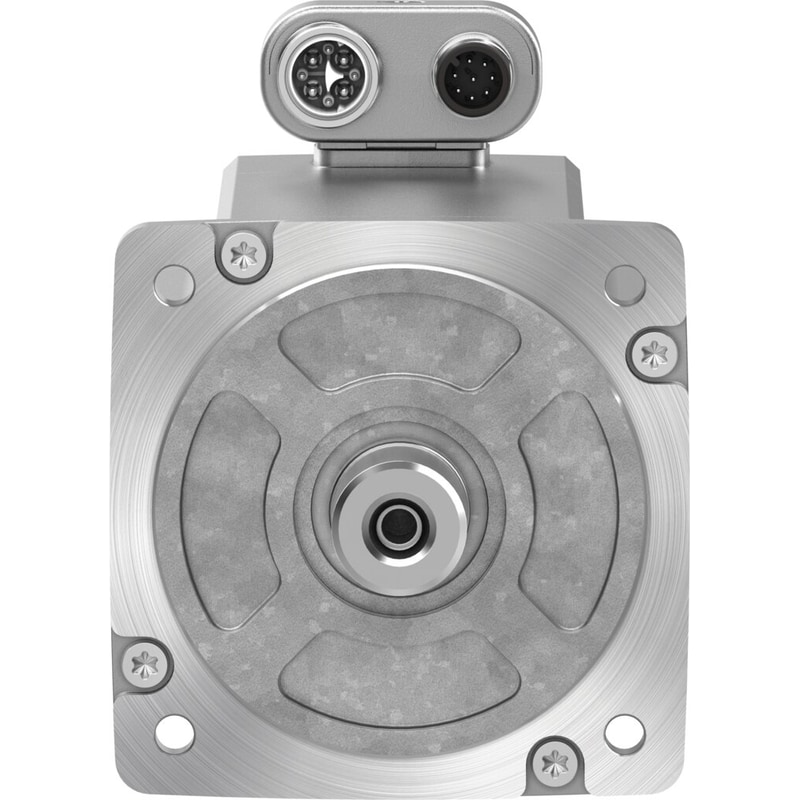

Reliable and powerful AC synchronous servo motor with optimized connection technology for dynamic applications.

SKU: 4267592 Category: Tag:
Number of pole pairs 3
Type code EMME-AS
Rotor position sensor Safety encoder, absolute multi-turn
Rotor position sensor interface RS422 TTL A/B channels + zero index
Rotor position sensor measuring principle Optical
Safety Integrity Level (SIL), subcomponent SILCL 2, rotor position sensorSIL 2, rotor position sensor
Performance Level (PL), subcomponent Category 3, performance level d, rotor position sensor
PFHd, subcomponent 1.3 x 10E-8, rotor position sensor
Duration of use Tm, subcomponent 20 years, rotor position sensor
Max. rotational speed 4097 1/min
Nominal rotary speed 3000 1/min
Continuous stall current 2.2 A
Insulation protection class F
Motor constants 1.524 Nm/A
Nominal operating voltage DC 565 V
Motor nominal power 1000 W
DC nominal voltage 565 V
Motor nominal current 2.1 A
Typical rotor position sensor resolution 15 bit
Rotor position encoder, typical angular accuracy 20 arcmin
Rotor position encoder, sinusoidal/cosinusoidal periods per revolution 128
Phase-phase winding resistance 9 Ohm
Winding inductance phase-phase 22.8 mH
Peak current 8.8 A
Voltage constant, phase-to-phase 97.5 mVmin
Rating class according to EN 60034-1 S1
CE marking (see declaration of conformity) As per EU EMC directiveAs per EU low voltage directive
Corrosion resistance class (CRC) 0 – No corrosion stress
Storage temperature -20 °C … 70 °C
Relative air humidity 0 – 90 %
Degree of protection IP21
Ambient temperature -10 °C … 40 °C
Certification RCM compliance markc UL us – Recognized (OL)
Total output inertia moment 1.93 kgcm²
Nominal torque 3.2 Nm
Peak torque 14 Nm
Stall torque 3.5 Nm
Permissible axial shaft load 72 N
Permissible radial shaft load 360 N
MTTFd, subcomponent 874 years, rotor position sensor
Product weight 3700 g
Electrical connection technology Plug
Note on materials Contains paint-wetting impairment substancesRoHS-compliant
Conforms to standard IEC 60034
