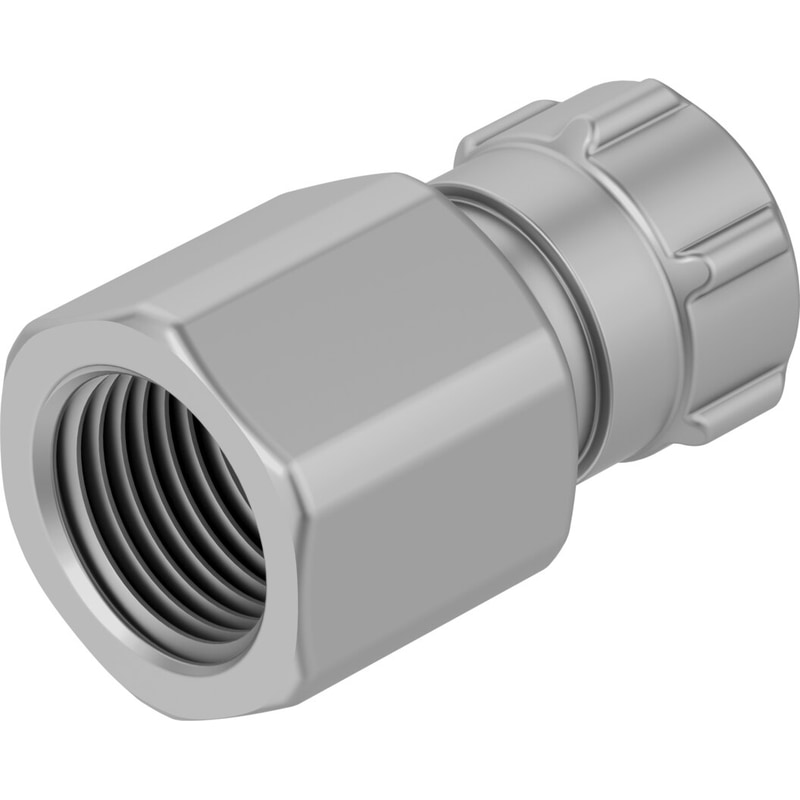

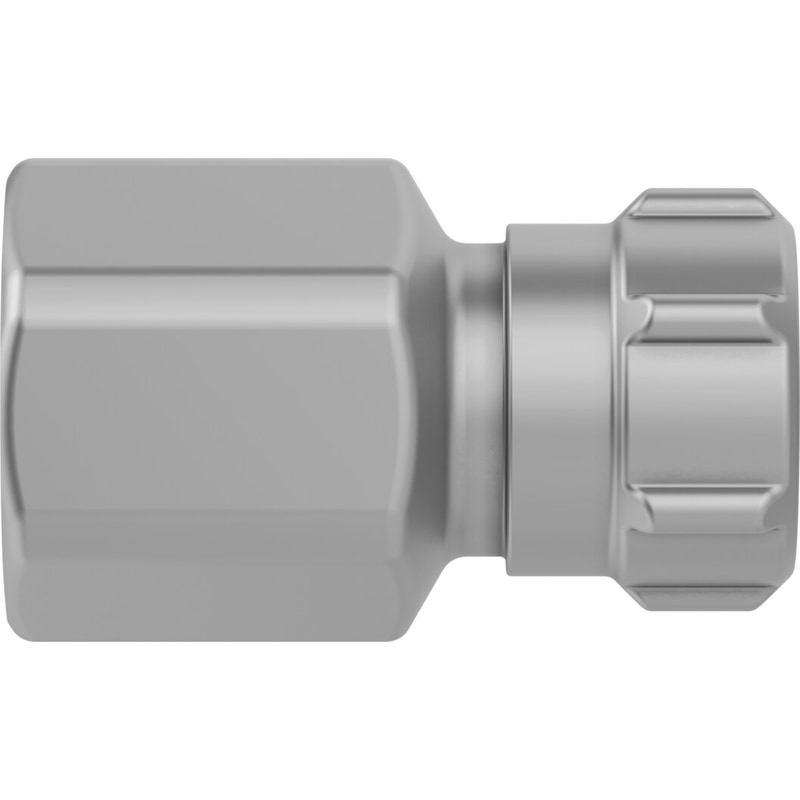

ACK-3/8-PK-9 Quick connector (Pack of 10)

$94.40

SKU: 3710
UNSPSC: 27131613
GTIN: 4052568018573
Sold in Pack of 10

SKU: 3710 Category:
Festo

quick connector ACK-3/8-PK-9 Female thread with sealing ring. Nominal size=8 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Operating medium=(* Compressed air in accordance with ISO8573-1:2010 [7:-:-], * Water as per manufacturer’s declaration at www.festo.com), Note on operating and pilot medium=Lubricated operation possible

Fitting Type n/a
Nominal size  8 mm
Type of seal on screw-in stud  Sealing ring
Assembly position  Any
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com
Note on operating and pilot medium  Lubricated operation possible
Corrosion resistance classification CRC  2 – Moderate corrosion stress
Ambient temperature  ‘-10 … 60 °C
Maritime classification  see certificate
connection 1  Female thread G3/8
connection 2  For tubing internal diameter 9 mm
Materials note  Conforms to RoHS
Material housing  Aluminium
Fitting Type

n/a

Nominal size

8 mm

Type of seal on screw-in stud

Sealing ring

Assembly position

Any

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at http://www.festo.com

Note on operating and pilot medium

Lubricated operation possible

Corrosion resistance classification CRC

2 – Moderate corrosion stress

Ambient temperature

-10 … 60 °C

Maritime classification

see certificate

connection 1

Female thread G3/8

connection 2

For tubing internal diameter 9 mm

Materials note

Conforms to RoHS

Material housing

Aluminium
