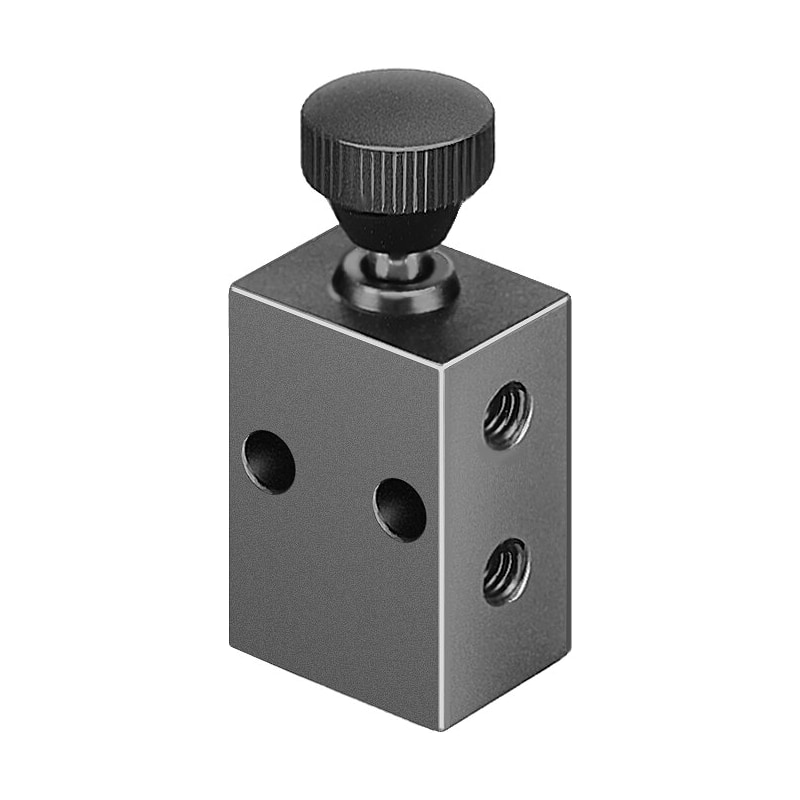

pushbutton valve K-3-M5 Actuation via pushbutton. Valve function=3/2 closed, monostable, Standard nominal flow rate=80 l/min, Operating pressure=-0,95 – 8 bar, Design structure=Piston seat, Nominal size=2 mm
| Valve function | 3/2 closed, monostable |
|---|---|
| Standard nominal flow rate | 80 l/min |
| Operating pressure | ‘-0.95 … 8 bar |
| Design structure | Piston seat |
| Nominal size | 2 mm |
| Type of piloting | direct |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Ambient temperature | ‘-10 … 60 °C |
| Actuating force | 23 N |
| Product weight | 28 g |
| Mounting type | with through hole |
| Pneumatic connection, port 1Â | M5 |
