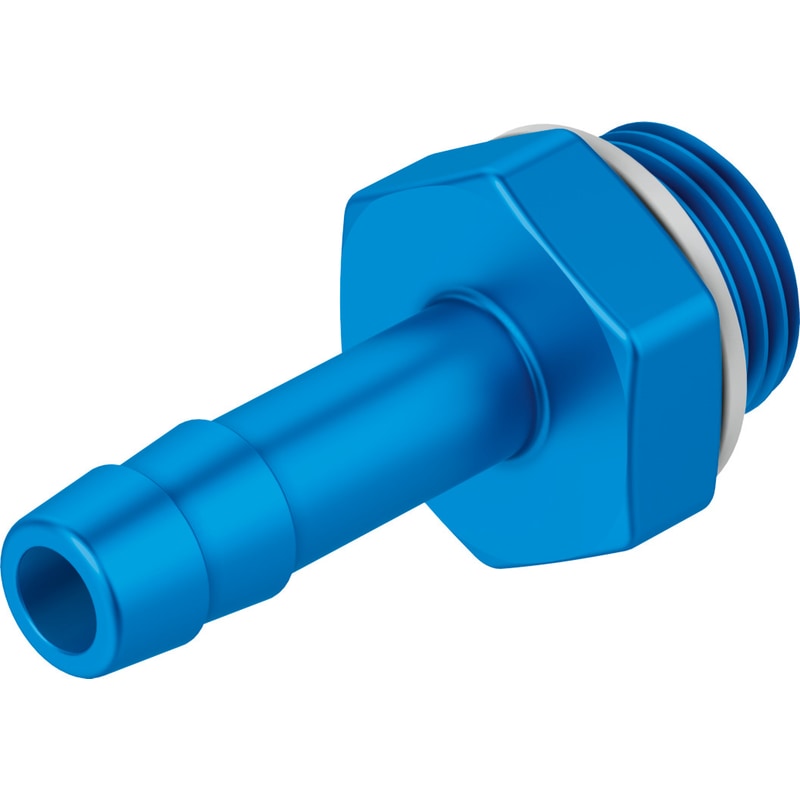

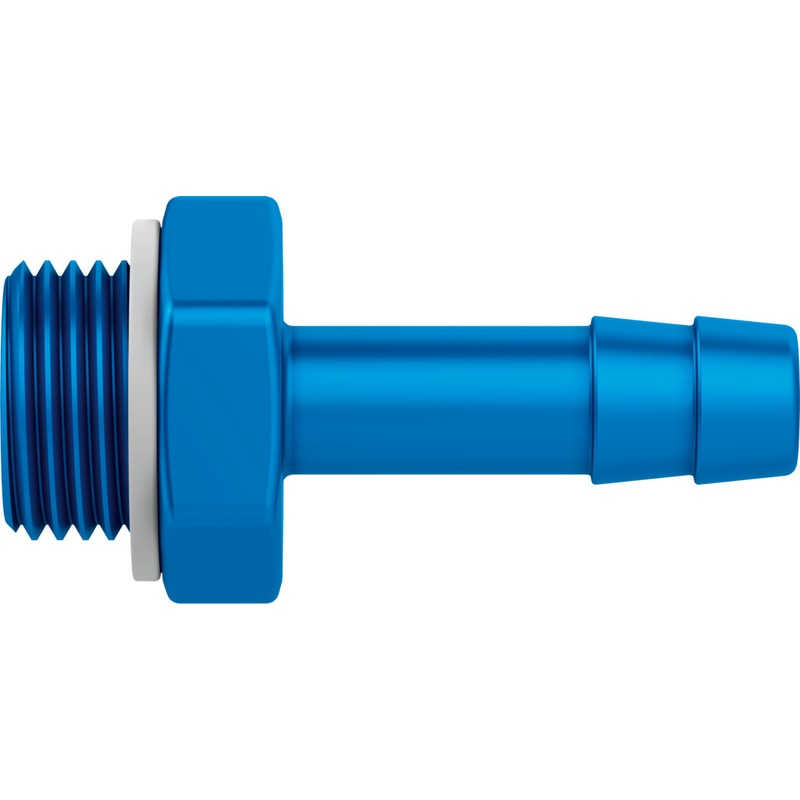

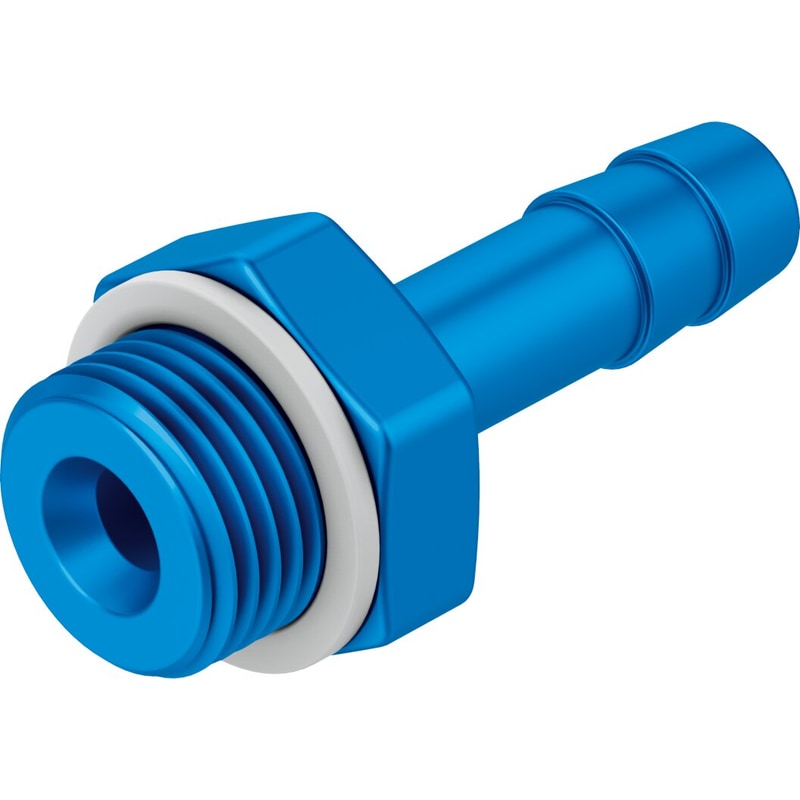

barbed hose fitting N-1/8-P-6 With sealing ring. Nominal size=4,5 mm, Type of seal on screw-in stud=Sealing ring, Operating pressure complete temperature range=-0,95 – 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
| Fitting Type | Barbed Straight |
|---|---|
| Nominal size | 4.5 mm |
| Type of seal on screw-in stud | Sealing ring |
| Operating pressure complete temperature range | ‘-0.95 … 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| connection 1Â | Male thread G1/8 |
| connection 2Â | For tubing outside diameter 8 mm |
| Materials note | Conforms to RoHS |
