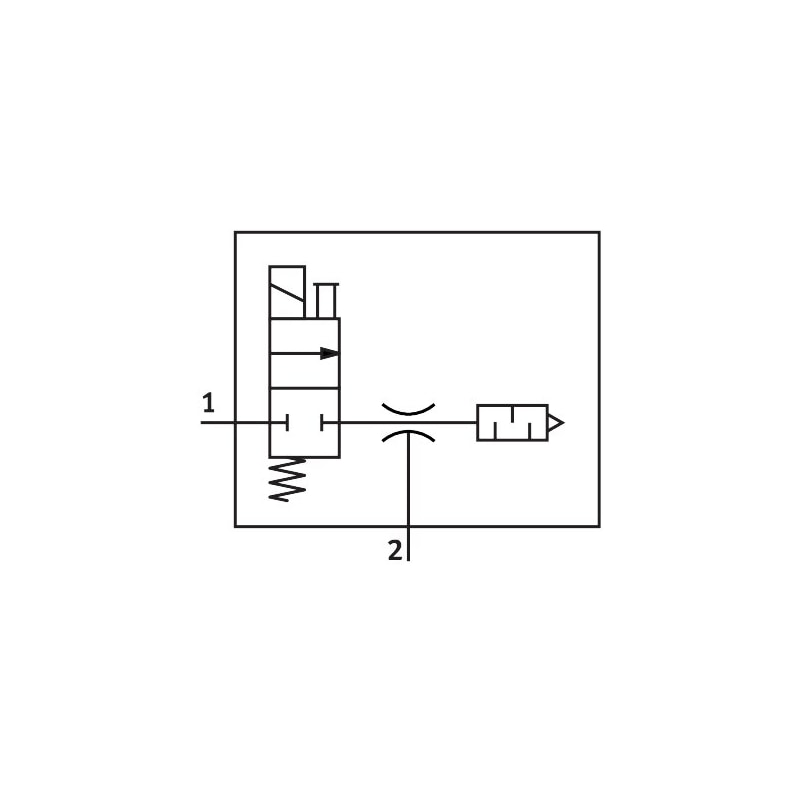

vacuum generator VAD-MYB-1/8 With integrated solenoid valve Nominal size, Laval nozzle=0,7 mm, Assembly position=Any, Ejector characteristic=High vacuum, Integrated function=Electrical on-off valve, Design structure=T-shaped
| Nominal size, Laval nozzle | 0.7 mm |
|---|---|
| Assembly position | Any |
| Ejector characteristic | High vacuum |
| Integrated function | Electrical on-off valve |
| Design structure | T-shaped |
| Operating pressure | 1.5 … 8 bar |
| Max. vacuum | 0.85 |
| Duty cycle | 1 |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Medium temperature | 0 … 40 °C |
| Protection class | IP65 |
