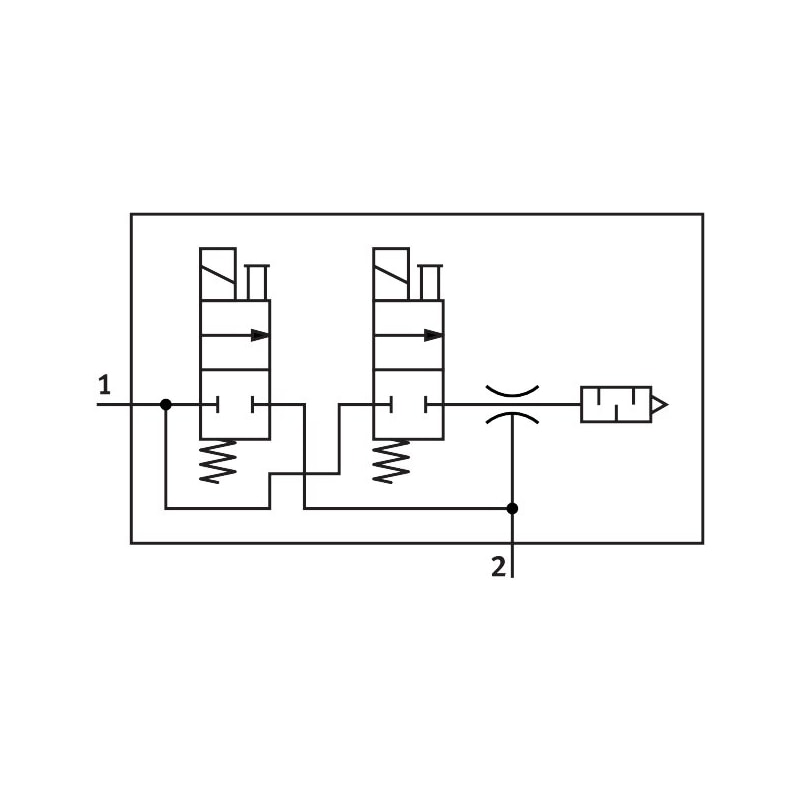

vacuum generator VAD-ME-I-1/4 With integrated solenoid valve for vacuum On/Off and ejector pulse Nominal size, Laval nozzle=1,4 mm, Assembly position=Any, Ejector characteristic=High vacuum, Integrated function=(* Ejector pulse valve, electrical, * Electrical on-off valve), Design structure=T-shaped
| Nominal size, Laval nozzle | 1.4 mm |
|---|---|
| Assembly position | Any |
| Ejector characteristic | High vacuum |
| Integrated function | Ejector pulse valve, electricalElectrical on-off valve |
| Design structure | T-shaped |
| Operating pressure | 1.5 … 8 bar |
| Max. vacuum | 0.9 |
| Duty cycle | 1 |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Medium temperature | 0 … 50 °C |
| Protection class | IP65 |
| Ambient temperature | 0 … 50 °C |
