VZXF-L-M22C-M-A-G1-240-V4B2V-50-V

$613.41

SKU: 3536659
UNSPSC: 40141603
GTIN: 4052568270506

SKU: 3536659 Category: Tag: Brand:

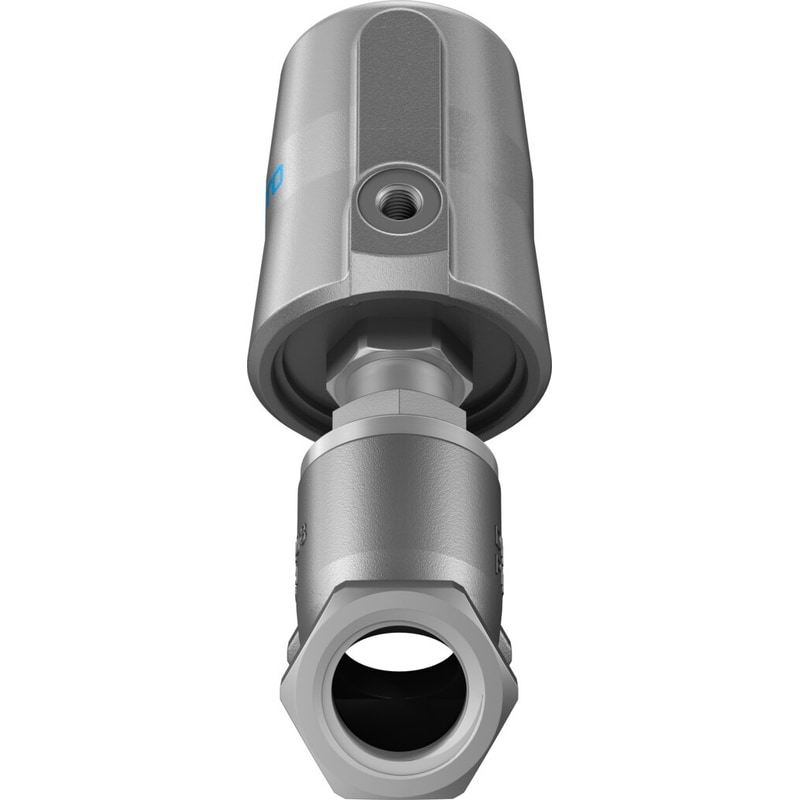

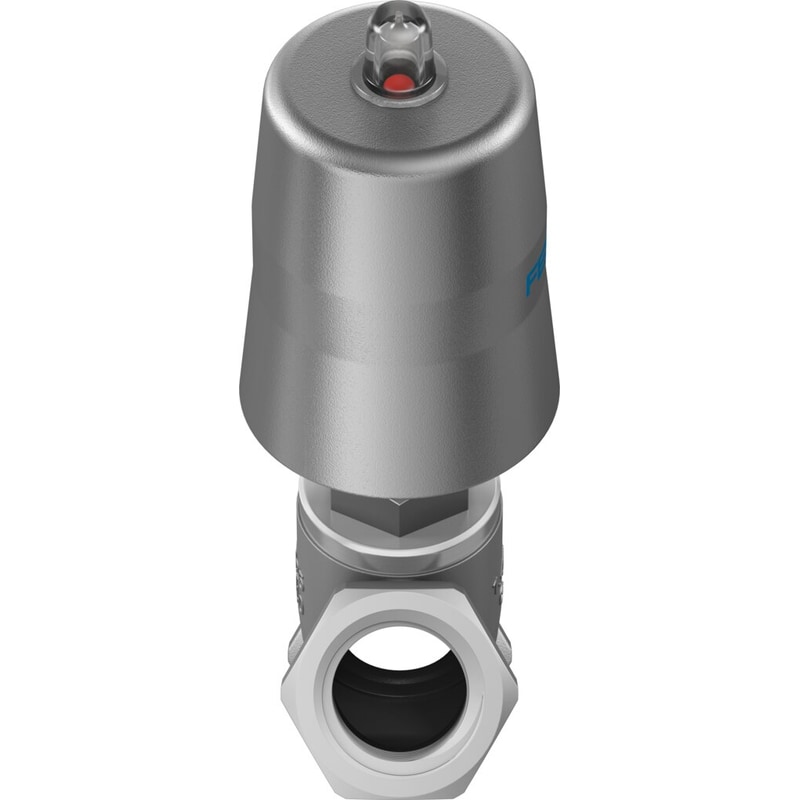

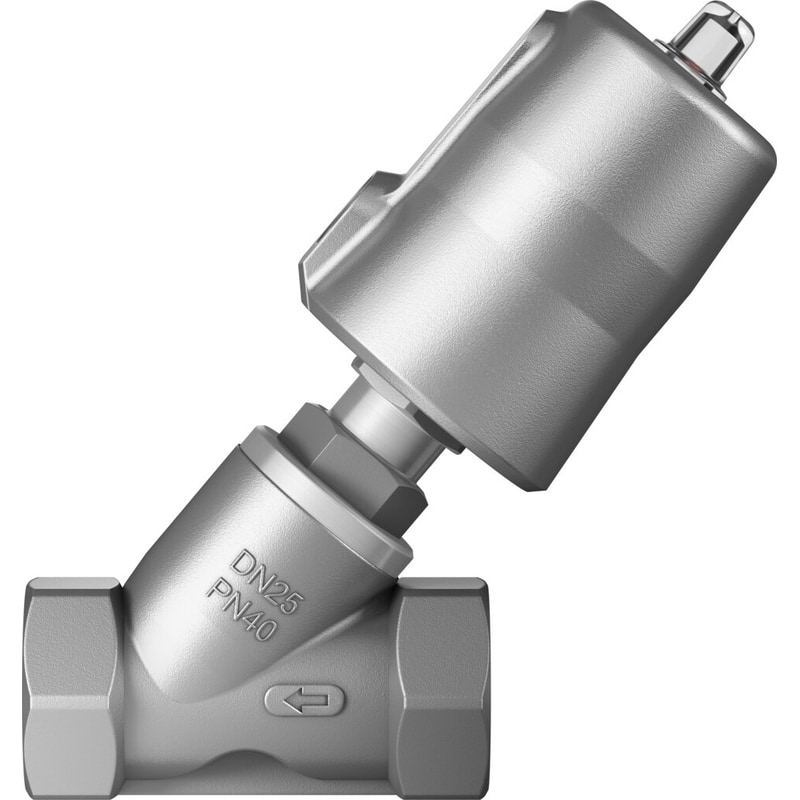

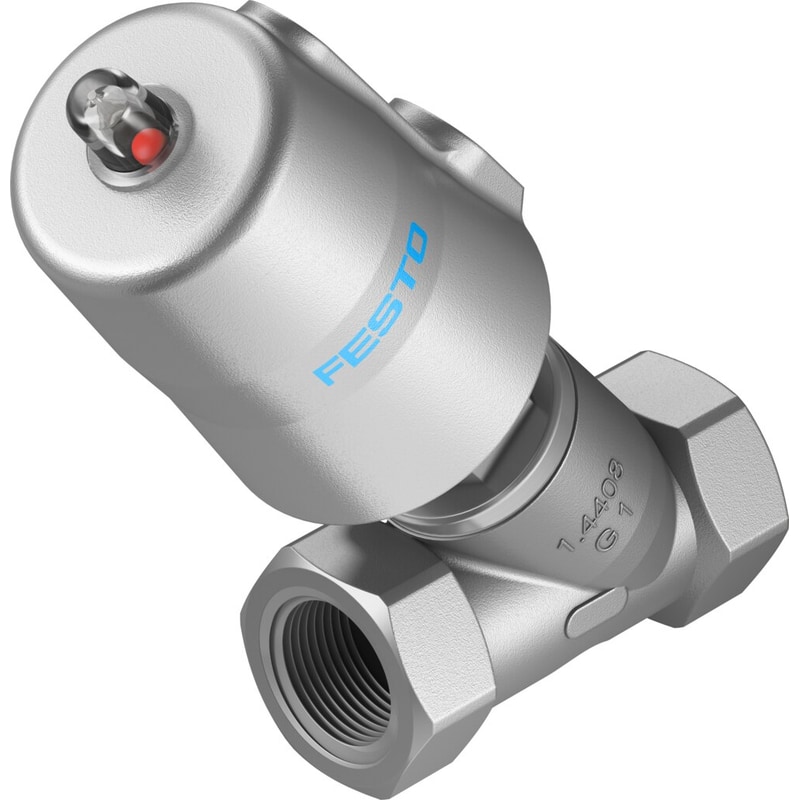

The rugged, all-purpose VZXF angle seat valve is ideal for any application requiring open-loop control of media flows—whether gaseous, liquid, or highly viscous.

Type codeVZXF
DesignPoppet valve with piston actuator
Actuation typePneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingLine installation
Cable connectionThreaded sleeve G1 1/4 as per DIN ISO 228
Nominal width29 mm
Valve function2/2, closed, monostable
Flow directionNon-reversible
Medium pressure0 bar … 10 bar
Nominal pressure of fitting PN16
Exhaust air functionWithout flow control option
Reset methodMechanical spring
Type of controlExternally controlled
Pneumatic connectionInternal thread G1/8
Operating pressure6 bar … 10 bar
Symbol00991367
MediumInert gasFiltered compressed air, 200 µm filter meshVapor
Flow directionAbove valve seat, for gaseous media
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Max. viscosity600 mm²/s
Temperature of medium-40 °C … 200 °C
Ambient temperature-10 °C … 60 °C
Flow rate Kv19 m³/h
Note on materialsRoHS-compliantContains paint-wetting impairment substances
Valve housing materialRed brass
Material number, fitting housingCC499K
Spindle seal materialPTFE
Seat seal materialPTFE
Product weight1900 g
CE marking (see declaration of conformity)as per EU pressure equipment directive
Corrosion resistance class (CRC)1 – Low corrosion stress
