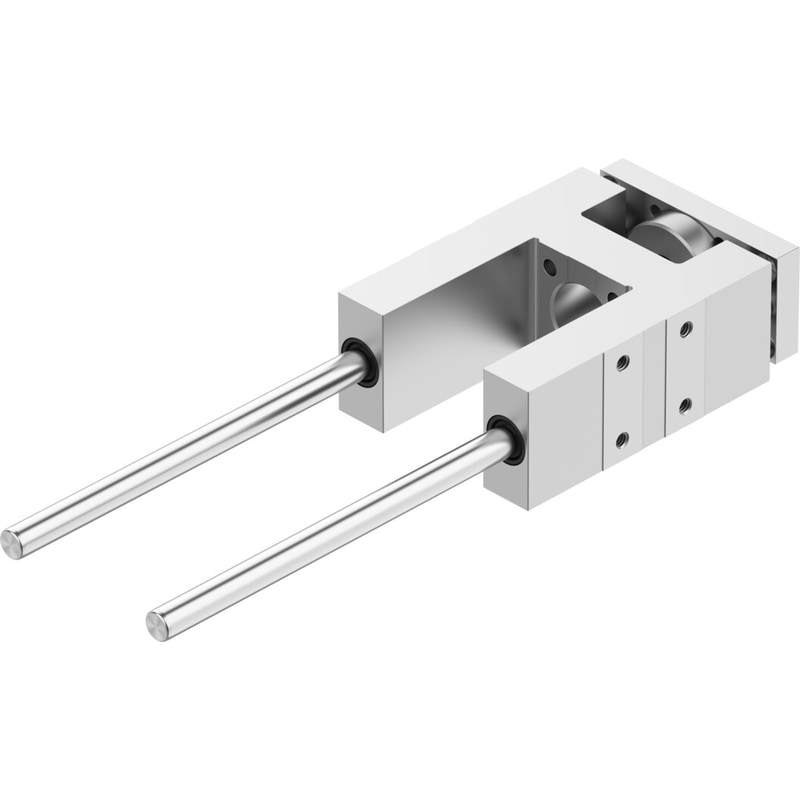

guide unit FENG-32-160-KF with recirculating ball bearing guide, serves for protection against rotation, provides a high accuracy of guidance. Size=32, Stroke=160 mm, Assembly position=Any, Guide=Recirculating ball bearing guide, Design structure=Guide
| Size | 32 |
|---|---|
| Stroke | 160 mm |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Guide |
| Ambient temperature | ‘-20 … 80 °C |
| Max. force Fy | 750 N |
| Max. force Fy static | 1,020 N |
| Max. force Fz | 750 N |
| Max. force Fz static | 1,020 N |
| Max. torque Mx | 28 Nm |
| Max. torque Mx static | 38 Nm |
| Max. torque My | 34 Nm |
