| Valve function | 4/3, closed |
|---|---|
| Actuation type | Manual |
| Width | 80 mm |
| Standard nominal flow rate | 3800 l/min |
| Pneumatic working port | G1/2 |
| Operating pressure | 0 bar … 10 bar |
| Information on operating pressure | Vacuum operation between -0.95 and 0 bar may only be connected to connection 3.In dual pressure mode, the pressure at connection 1 must be higher than at connection 3. |
| Design | Rotary gate valve |
| Nominal width | 12 mm |

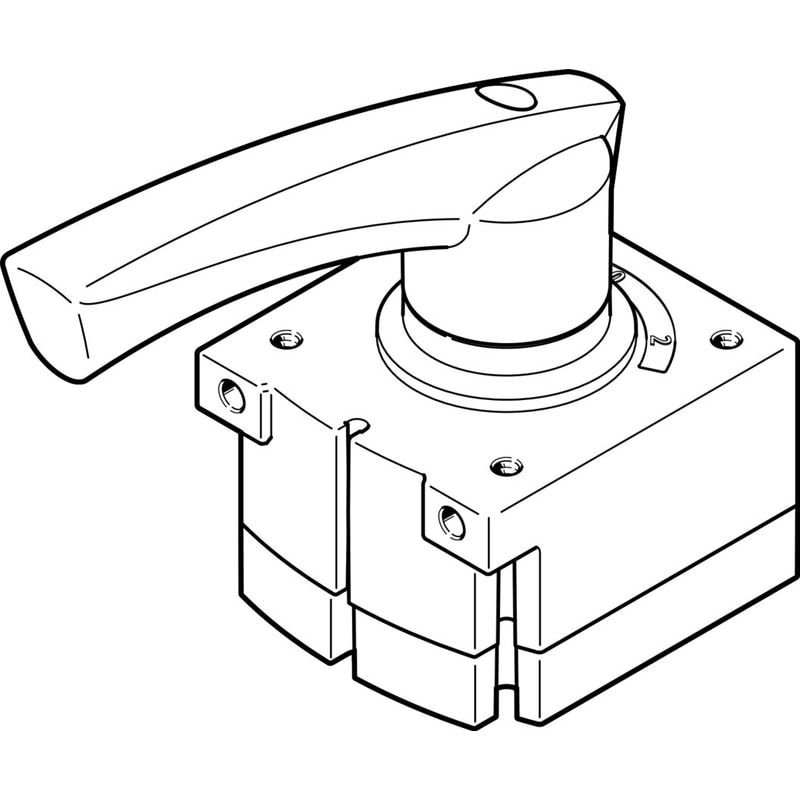

| Type code | VHER |
| Exhaust air function | With flow control option |
| Application note | Operate by hand only |
| Sealing principle | Hard |
| Type of control | Direct |
| Flow direction | Non-reversible |
| Symbol | 00995942 |
| Underlap | yes |
| Switching position indication | with accessories |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | -20 °C … 80 °C |
| Ambient temperature | -20 °C … 80 °C |
| Actuating torque | 5 Nm |
| Product weight | 860 g |
| Type of mounting | Front panel mountingWith through-holeOptionally: |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G1/2 |
| Pneumatic connection 4 | G1/2 |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
| Weight | 1.976665 lbs |
|---|---|
| Dimensions | 7.480315 × 3.937008 × 6.299213 in |
