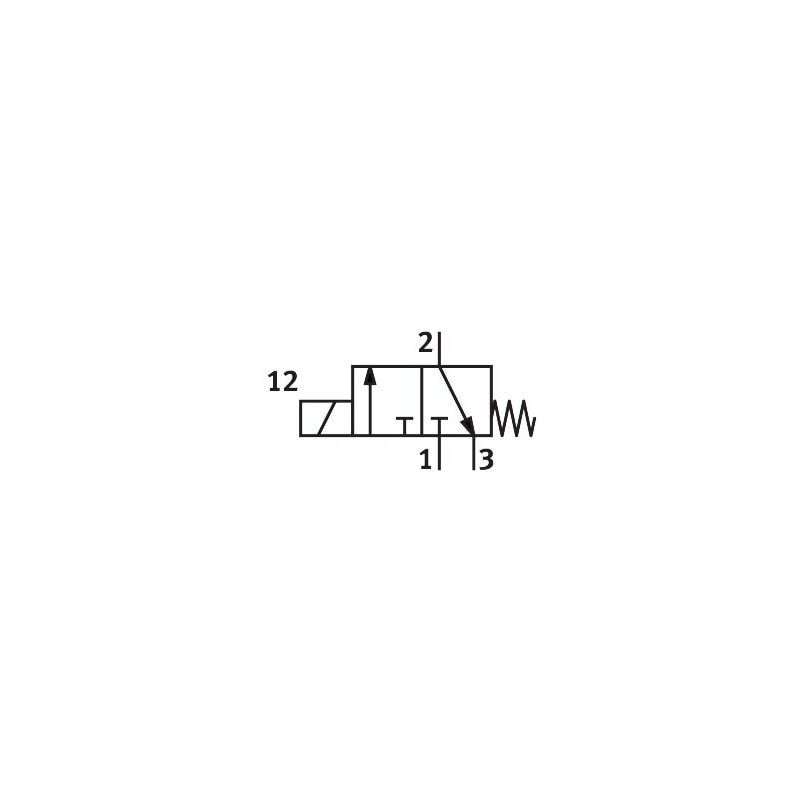

valve VOFD-L12T-M32-MN-G14-8-F19A Valve function=3/2 closed, monostable, Type of actuation=electrical, Width=50 mm, Standard nominal flow rate=52 l/min, Operating pressure=0 – 8 bar
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 50 mm |
| Standard nominal flow rate | 52 l/min |
| Operating pressure | 0 … 8 bar |
| Design structure | Directly actuated poppet valve |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Nominal size | 1.2 mm |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | None |
| Type of piloting | direct |
