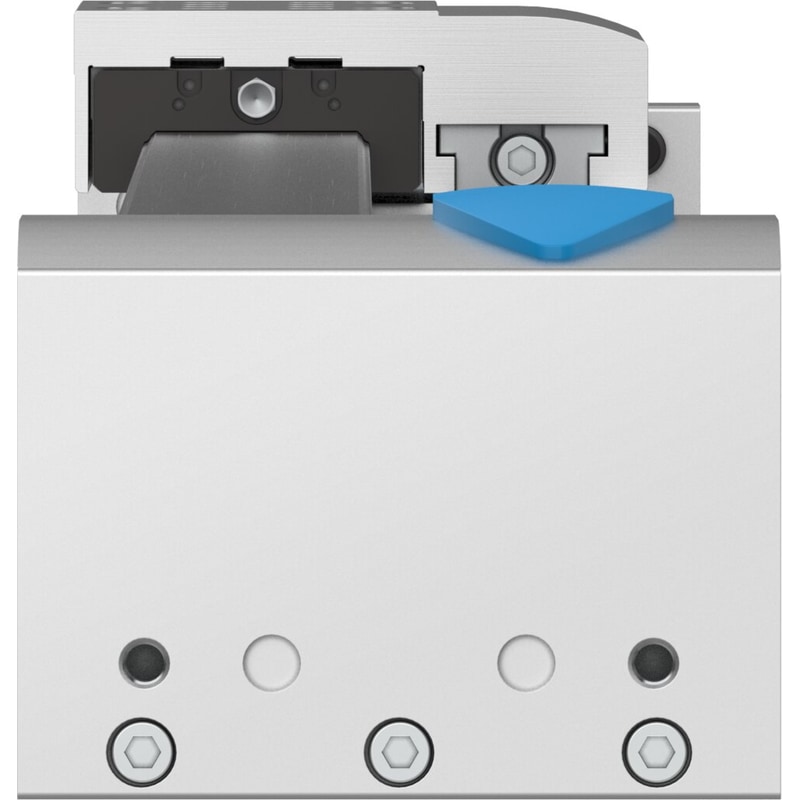

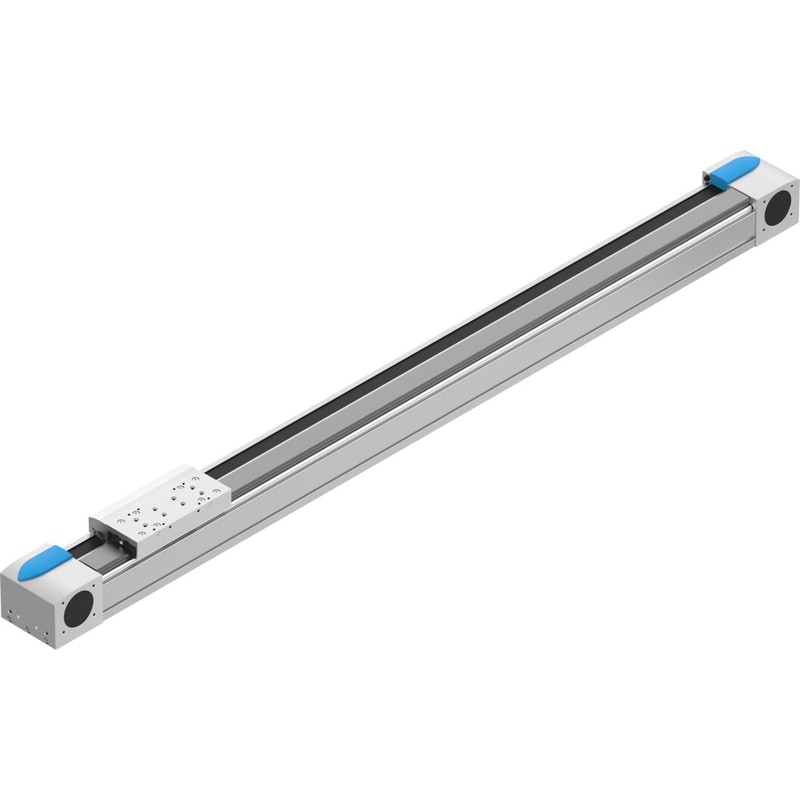

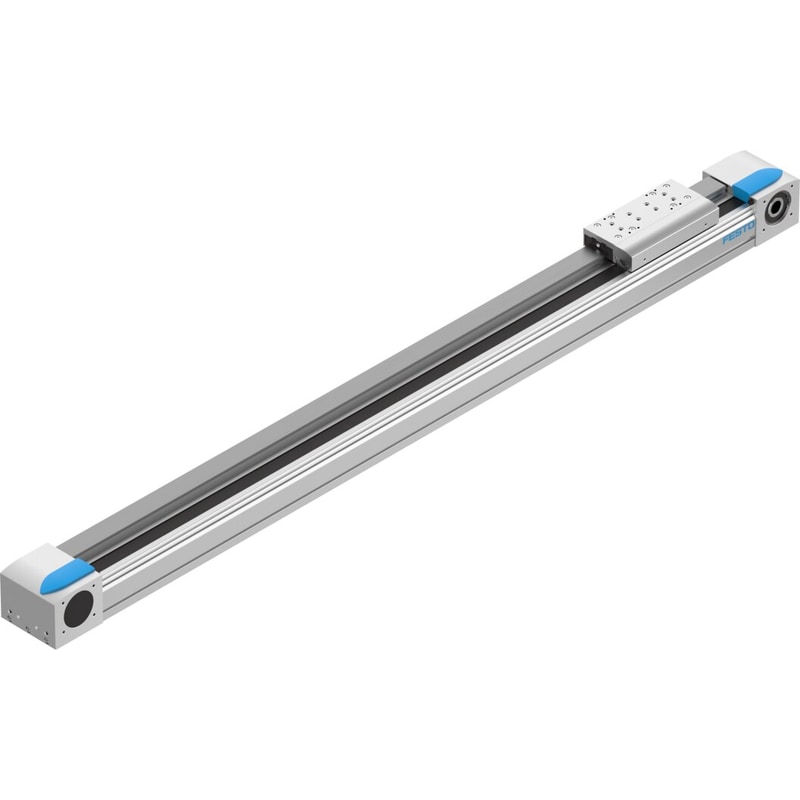

EGC-120-1200-TB-KF-0H-GK

$3,819.62

SKU: 3013369
UNSPSC: 31251511
GTIN: 4052568268268

SKU: 3013369 Category: Tag: Brand:

toothed belt axis EGC-120-1200-TB-KF-0H-GK With recirculating ball bearing guide Effective diameter of drive pinion=39,79 mm, Working stroke=1200 mm, Size=120, Stroke reserve=0 mm, Toothed-belt stretch=0,13 %

Effective diameter of drive pinion 39.79 mm
Working stroke 1,200 mm
Size 120
Stroke reserve 0 mm
Toothed-belt stretch 0.0013
Toothed-belt pitch 5 mm
Assembly position Any
Guide Recirculating ball bearing guide
Design structure Electromechanical linear axisWith toothed belt
Motor type Stepper motorServomotor
Max. acceleration 50 m/s2
Max. speed 5 m/s
Repetition accuracy ±0,08 mm
Effective diameter of drive pinion

39.79 mm

Working stroke

1,200 mm

Size

120

Stroke reserve

0 mm

Toothed-belt stretch

0.13 %

Toothed-belt pitch

5 mm

Assembly position

Any

Guide

Recirculating ball bearing guide

Design structure

Electromechanical linear axisWith toothed belt

Motor type

Stepper motorServomotor

Max. acceleration

50 m/s2

Max. speed

5 m/s

Repetition accuracy

±0,08 mm
