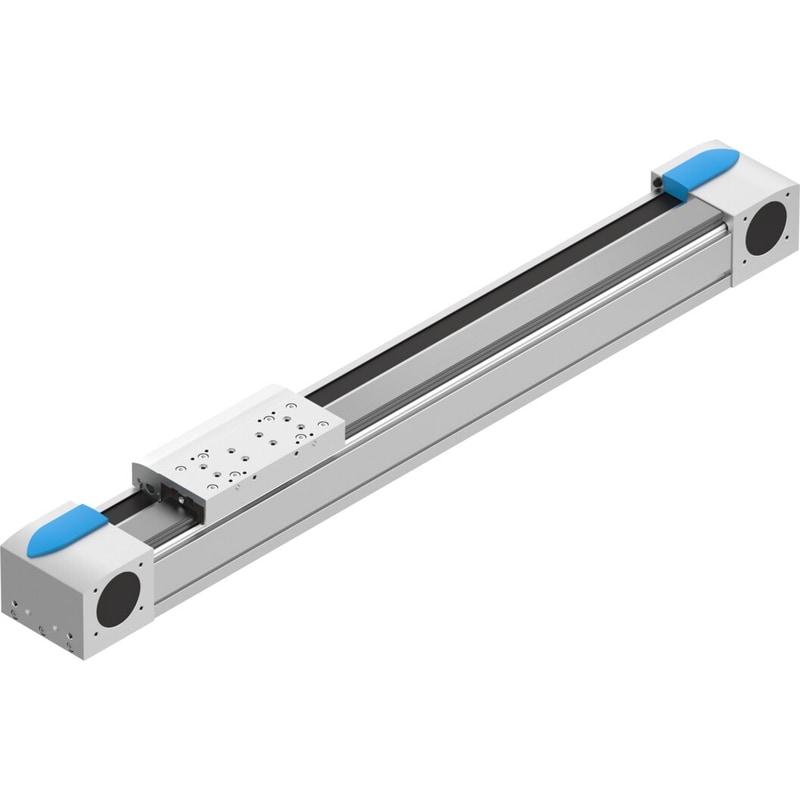

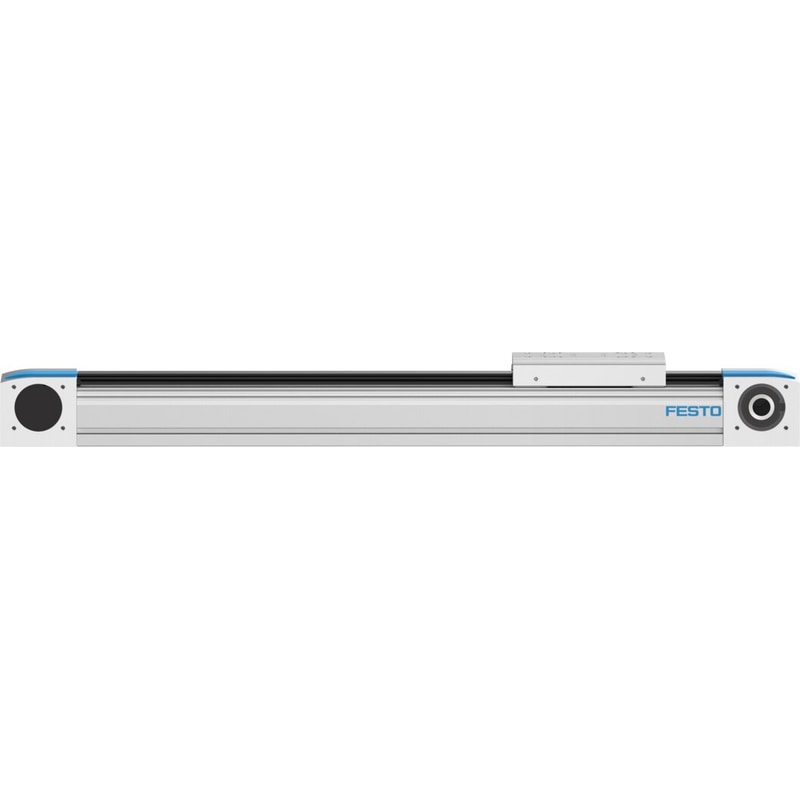

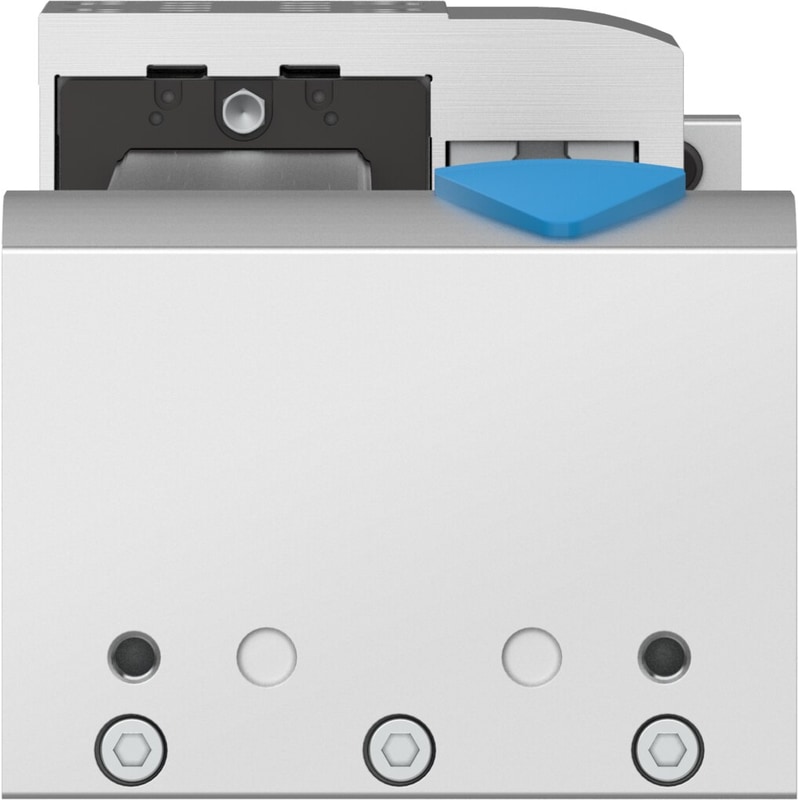

toothed belt axis EGC-120-600-TB-KF-0H-GK With recirculating ball bearing guide Effective diameter of drive pinion=39,79 mm, Working stroke=600 mm, Size=120, Stroke reserve=0 mm, Toothed-belt stretch=0,13 %
Effective diameter of drive pinion | 39.79 mm |
---|---|
Working stroke | 600 mm |
Size | 120 |
Stroke reserve | 0 mm |
Toothed-belt stretch | 0.0013 |
Toothed-belt pitch | 5 mm |
Assembly position | Any |
Guide | Recirculating ball bearing guide |
Design structure | Electromechanical linear axisWith toothed belt |
Motor type | Stepper motorServomotor |
Max. acceleration | 50 m/s2 |
Max. speed | 5 m/s |
Repetition accuracy | ±0,08 mm |
