EGC-80-600-TB-KF-0H-GK

$1,984.58

SKU: 3013355
UNSPSC: 31251511
GTIN: 4052568268176

SKU: 3013355 Category: Tag:
Festo

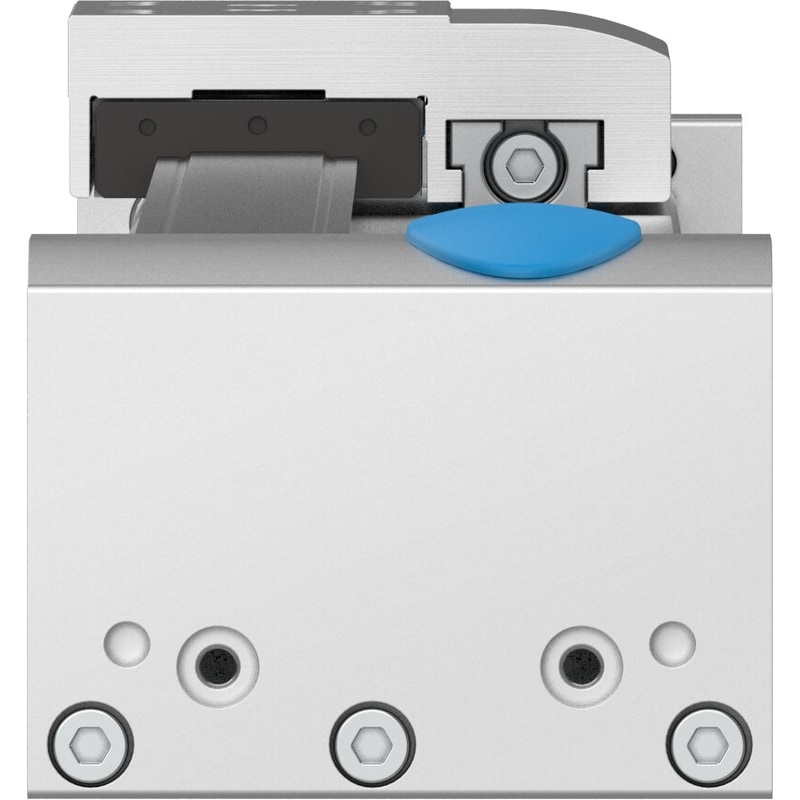

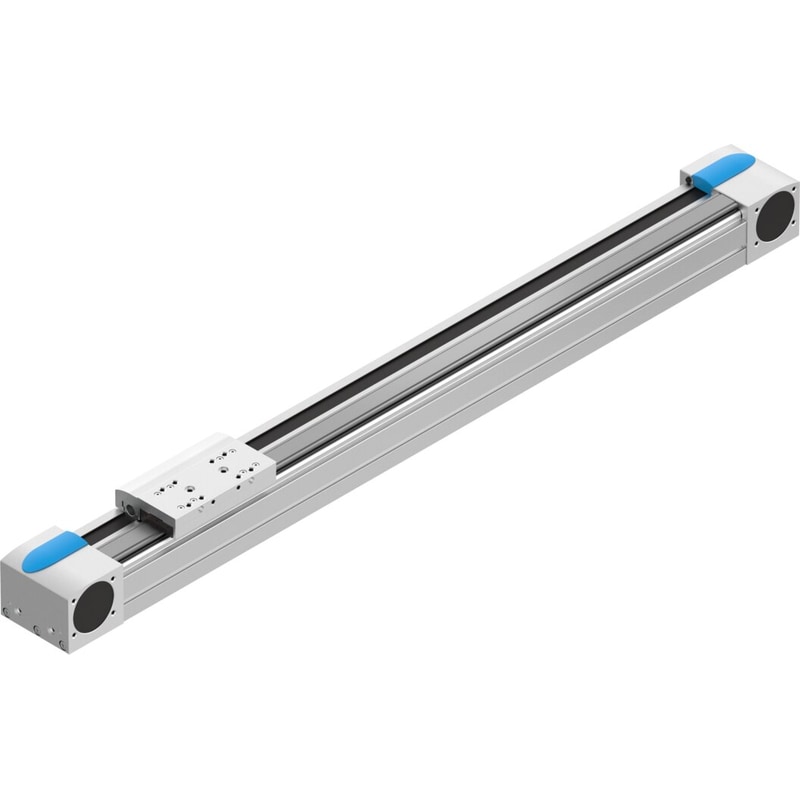

toothed belt axis EGC-80-600-TB-KF-0H-GK With recirculating ball bearing guide Effective diameter of drive pinion=28,65 mm, Working stroke=600 mm, Size=80, Stroke reserve=0 mm, Toothed-belt stretch=0,24 %

Effective diameter of drive pinion  28.65 mm
Working stroke  600 mm
Size  80
Stroke reserve  0 mm
Toothed-belt stretch  0.0024
Toothed-belt pitch  3 mm
Assembly position  Any
Guide  Recirculating ball bearing guide
Design structure  Electromechanical linear axisWith toothed belt
Motor type  Stepper motorServomotor
Max. acceleration  50 m/s2
Max. speed  5 m/s
Repetition accuracy  ±0,08 mm
Effective diameter of drive pinion

28.65 mm

Working stroke

600 mm

Size

80

Stroke reserve

0 mm

Toothed-belt stretch

0.24 %

Toothed-belt pitch

3 mm

Assembly position

Any

Guide

Recirculating ball bearing guide

Design structure

Electromechanical linear axisWith toothed belt

Motor type

Stepper motorServomotor

Max. acceleration

50 m/s2

Max. speed

5 m/s

Repetition accuracy

±0,08 mm
