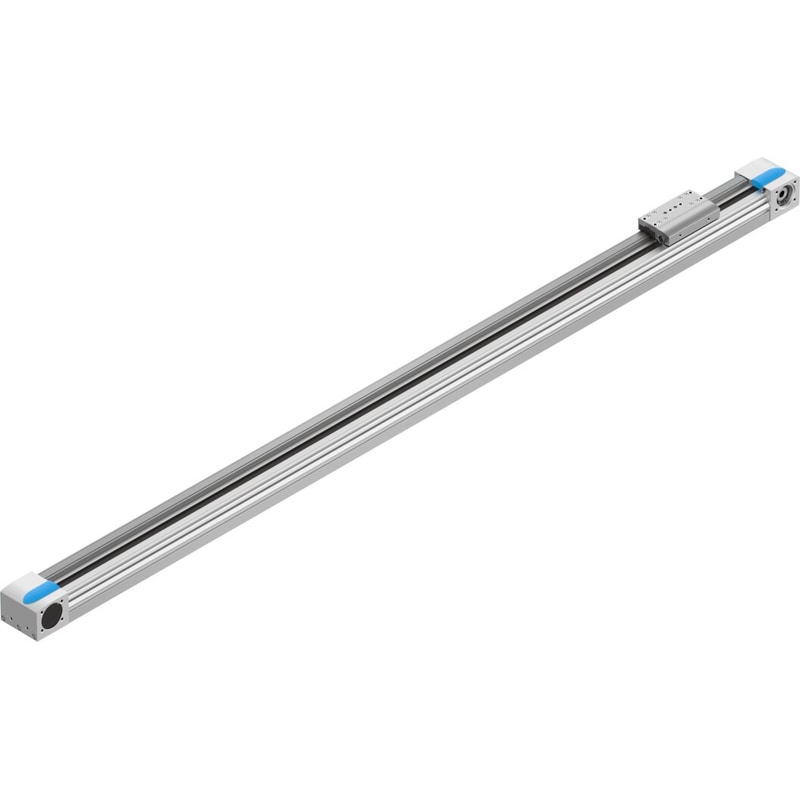

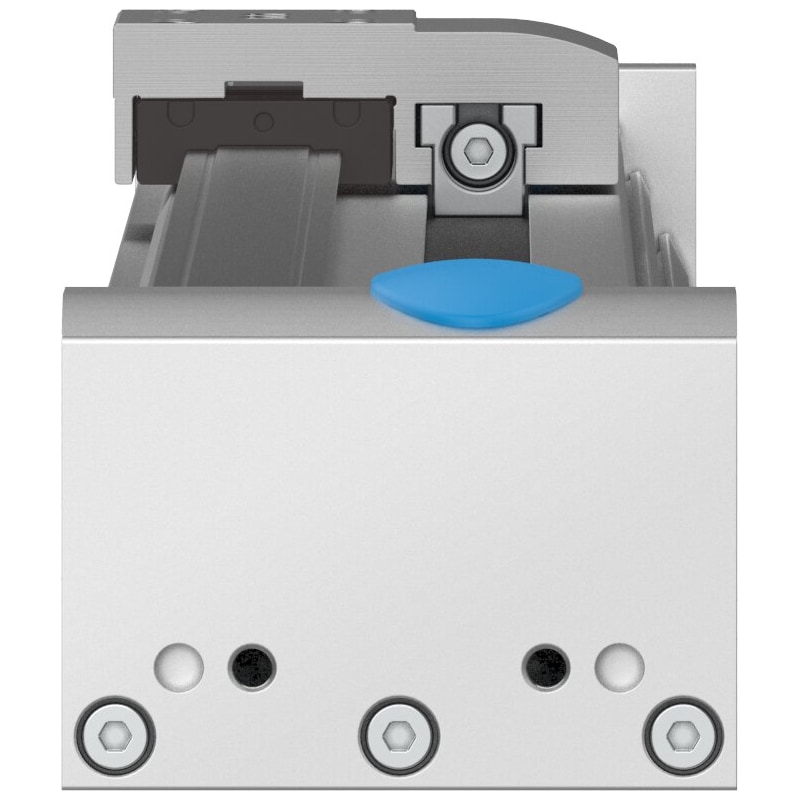

toothed belt axis EGC-70-1200-TB-KF-0H-GK With recirculating ball bearing guide Effective diameter of drive pinion=24,83 mm, Working stroke=1200 mm, Size=70, Stroke reserve=0 mm, Toothed-belt stretch=0,08 %
| Effective diameter of drive pinion | 24.83 mm |
|---|---|
| Working stroke | 1,200 mm |
| Size | 70 |
| Stroke reserve | 0 mm |
| Toothed-belt stretch | 0.0008 |
| Toothed-belt pitch | 3 mm |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Electromechanical linear axisWith toothed belt |
| Motor type | Stepper motorServomotor |
| Max. acceleration | 50 m/s2 |
| Max. speed | 5 m/s |
| Repetition accuracy | ±0,08 mm |
