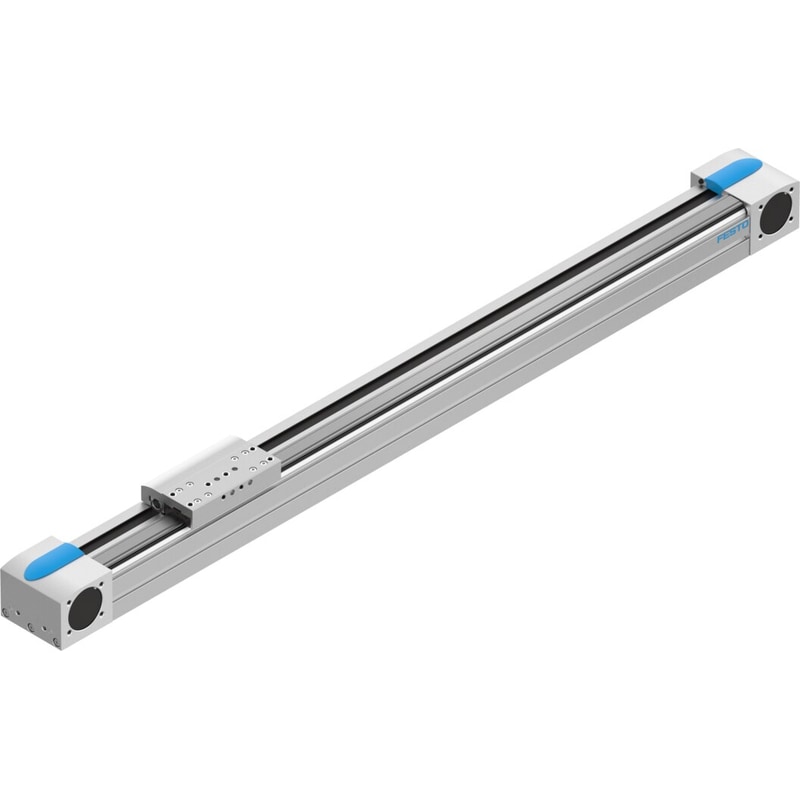

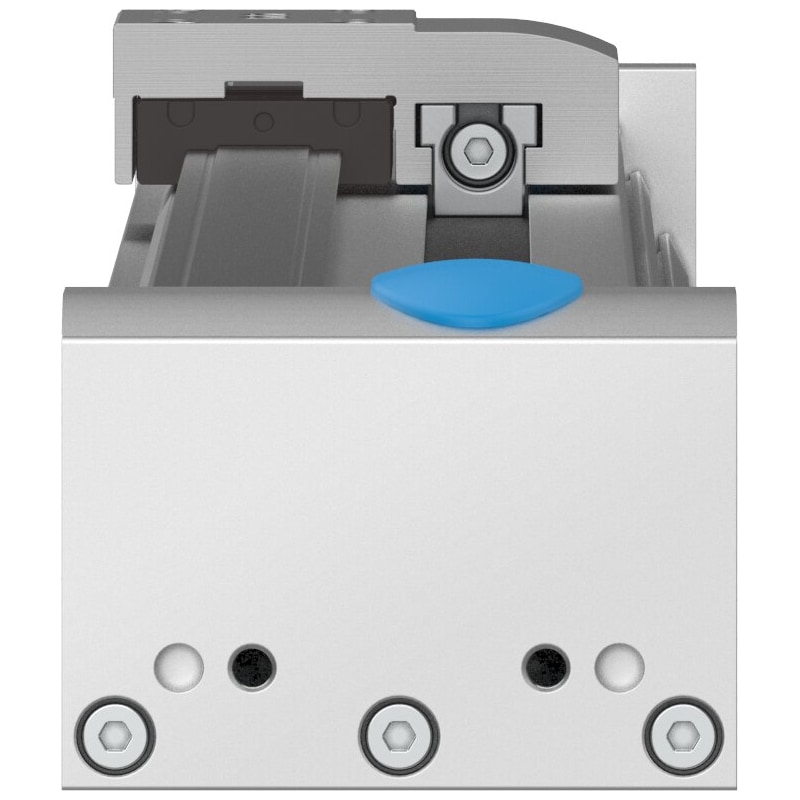

EGC-70-600-TB-KF-0H-GK

$1,980.11

SKU: 3012495
UNSPSC: 31251511
GTIN: 4052568268121

SKU: 3012495 Category: Tag: Brand:

toothed belt axis EGC-70-600-TB-KF-0H-GK With recirculating ball bearing guide Effective diameter of drive pinion=24,83 mm, Working stroke=600 mm, Size=70, Stroke reserve=0 mm, Toothed-belt stretch=0,08 %

Effective diameter of drive pinion 24.83 mm
Working stroke 600 mm
Size 70
Stroke reserve 0 mm
Toothed-belt stretch 0.0008
Toothed-belt pitch 3 mm
Assembly position Any
Guide Recirculating ball bearing guide
Design structure Electromechanical linear axisWith toothed belt
Motor type Stepper motorServomotor
Max. acceleration 50 m/s2
Max. speed 5 m/s
Repetition accuracy ±0,08 mm
Effective diameter of drive pinion

24.83 mm

Working stroke

600 mm

Size

70

Stroke reserve

0 mm

Toothed-belt stretch

0.08 %

Toothed-belt pitch

3 mm

Assembly position

Any

Guide

Recirculating ball bearing guide

Design structure

Electromechanical linear axisWith toothed belt

Motor type

Stepper motorServomotor

Max. acceleration

50 m/s2

Max. speed

5 m/s

Repetition accuracy

±0,08 mm
