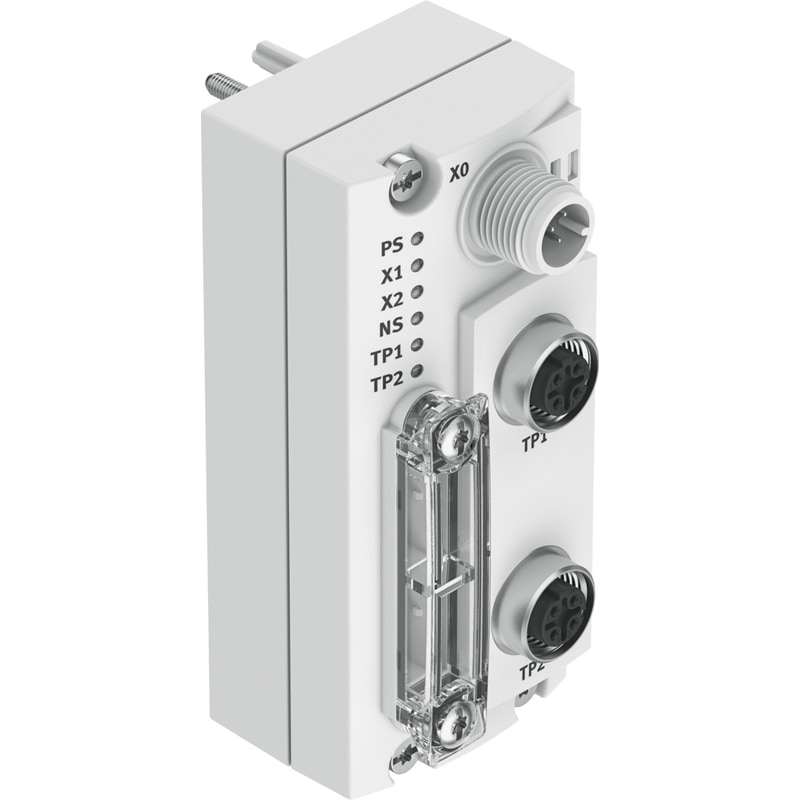

bus node CTEU-EP Dimensions W x L x H=40 mm x 91 mm x 50 mm, Fieldbus interface=2x socket, M12x1, 4-pin, D-coded, Diagnosis=(* – Communication error, * – System diagnostics, * – Undervoltage), Configuration support=EDS file, Additional functions=(* AddressConflictDetection (ACD), * – Acyclic data access via “Explicit Message”, * – EtherNet/IP Quickconnect, * IP addressing via DHCP, DIL switch, fieldbus or FFT, * Integrated Switch, * – Ringtopologie (DLR), * SNMP, * Start-up parameterisation in normal text via fieldbus, * System status can be represented using process data, * Web servers)
| Dimensions W x L x HÂ | 40 mm x 91 mm x 50 mm |
|---|---|
| Product weight | 98 g |
| Fieldbus interface | 2x socket, M12x1, 4-pin, D-coded |
| Baud rate | 10/100 Mbit/s |
| Protocol | EtherNet/IPModbus TCP |
| Internal cycle time | 1 ms per 1 byte of user data |
| Maximum address volume for inputs | 64 Byte |
| Maximum address volume for outputs | 64 Byte |
| Diagnosis | ‘- Communication error- System diagnostics- Undervoltage |
| Parameters configuring | ‘- Diagnostic behaviour- Failsafe and idle reaction |
| Additional functions | AddressConflictDetection (ACD)- Acyclic data access via “Explicit Message”- EtherNet/IP QuickconnectIP addressing via DHCP, DIL switch, fieldbus or FFTIntegrated Switch- Ringtopologie (DLR)SNMPStart-up parameterisation in normal text via fieldbusSystem status can be represented using process dataWeb servers |
| Configuration support | EDS file |
| Control elements | DIL switches |
